5GC核心网PDU会话修改流程

5GC PDU会话修改通过有条件执行的NAS、NGAP和PFCP流程更新现有会话。核查时需区分UE请求、策略变更、QoS限制,以及能够证明变更已落实的证据。

贝克电信

5GC核心网PDU会话修改流程

5G设备可以在授权服务发生变化时保持连接。应用可能需要不同的QoS处理,订阅数据更新可能改变聚合速率限制,无线接入网也可能报告某个现有QoS流已无法获得其授权资源。工程核查的重点,是确定现有会话中哪些部分必须改变,以及如何证明这些部分已得到一致更新。

PDU会话修改用于更新已存在的PDU会话。SMF负责协调受影响的UE参数、接入资源和用户面规则。策略决策、服务API的成功响应和可用的数据连接,是不同层面的观察结果;单独任何一项都不能证明预期变更已完整生效。

适用范围:现有会话及有条件的资源更新

会话必须已经存在,但并非每次修改开始时都要求用户面连接处于活动状态。UE的连接状态和可达性会影响消息下发。例如,处于CM-IDLE状态的UE可能需要先执行Service Request,再发送会话管理请求。网络发起的处理同样取决于适用的可达性流程。

下文以3GPP TS 23.502 Release 18第4.3.3.2节中的非漫游及本地疏导流程为范围。归属地路由漫游、中间SMF、多接入操作和其他扩展会引入额外路径。分析跟踪记录时,应与实际部署的版本和架构对照。

修改可以改变QoS规则或流参数、增加或删除QoS流,以及承载某些其他会话更新。它不同于创建会话上下文的PDU会话建立,也不同于删除上下文的PDU会话释放。因此,常规QoS变更应围绕现有会话上下文排查,不应当作新的注册问题处理。

识别触发修改的事件

应从最早的原因事件入手,而不是仅从不完整抓包中首先出现的Modification Command开始。下发命令表明SMF已开始传递变更,但不能说明策略为何改变。

触发来源应查找的证据需要明确的边界
UE请求经AMF转发的PDU SESSION MODIFICATION REQUEST及其中请求的变更。请求须经网络授权;应用不会自动获得其期望的QoS。
PCF策略变更携带相关会话修订后决策的策略关联通知。收到策略通知与执行其内容是两件事。
UDM订阅数据更新订阅数据通知,以及SMF据此作出的决策。数据更新并不意味着UE、RAN和UPF的所有参数都会改变。
SMF决策要求更新的本地策略、会话状态或其他有记录的流程。动态PCC仅在适用条件下使用;某些部署采用本地策略。
RAN相关事件由AMF转送的N2会话信息,例如资源释放或适用的QoS通知。gNB不会直接调用SMF上的会话管理API。

应将会话标识、相关上下文引用与时间戳一并记录。否则,在繁忙网络中,不同会话的两个相似策略事件可能被误认为同一个流程。还存在AMF相关触发及Release 18的专项功能;表中列出的是常见排查起点,并非全部触发条件。

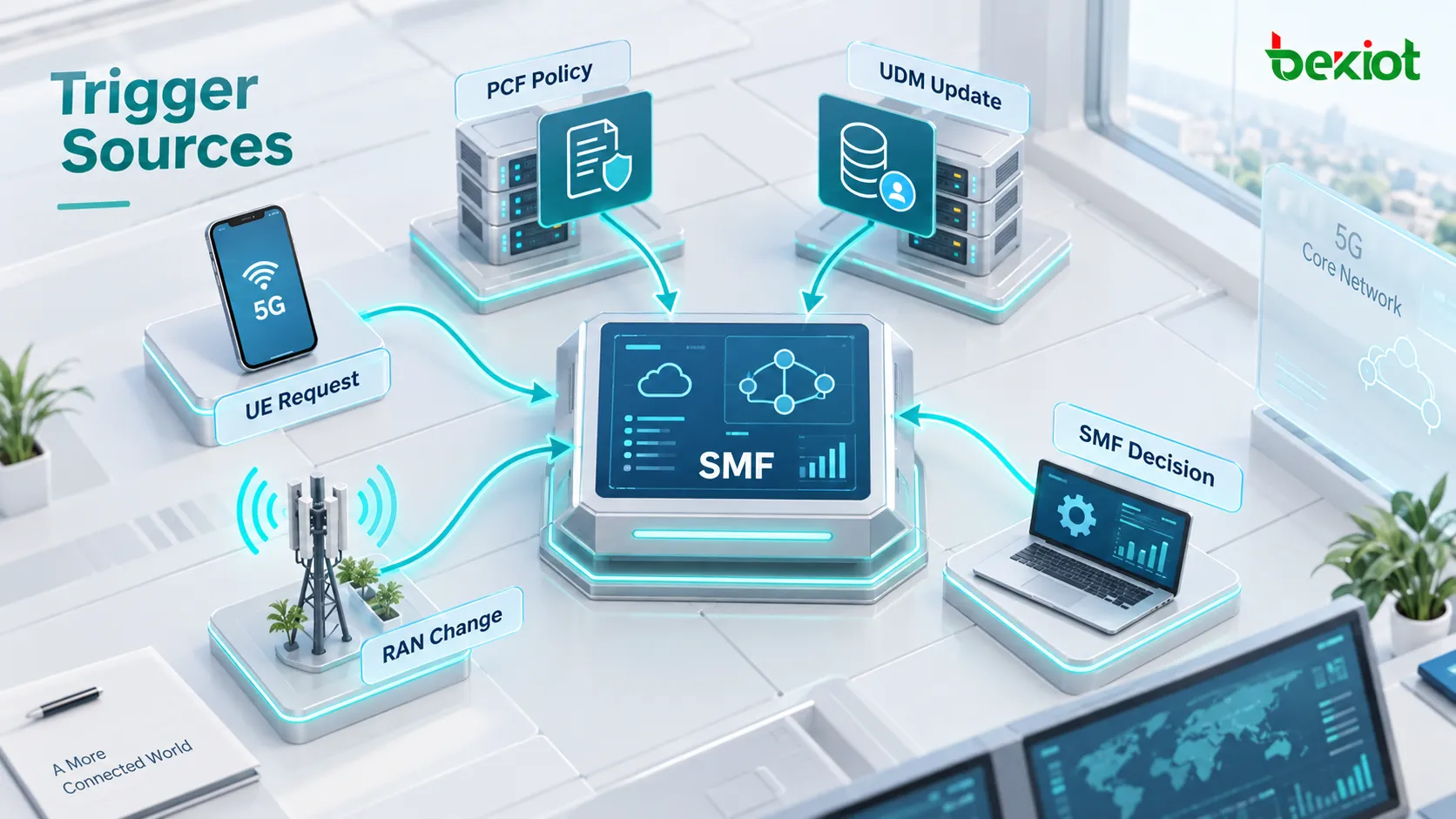

UE、PCF、UDM、SMF和RAN事件触发PDU会话修改的概念示意图
触发关系仅作概念说明。UE和RAN信息通过适用的AMF流程到达SMF;箭头不表示每个来源都与SMF存在直接接口。

UE发起的修改:请求、授权与下发

以一个ID为5的现有PDU会话为例。UE请求为指定流量采用不同处理方式,内容包括适用的包过滤器操作和所请求的QoS信息。该会话ID只是示例,并非保留标识。发出请求既不代表建立新会话,也不能证明无线接入网能够接纳所请求的资源。

  1. 接收请求。UE的会话管理消息通过接入网和AMF传递。AMF针对现有SM上下文调用Nsmf_PDUSession_UpdateSMContext。

  2. 确定获准的变更。SMF结合订阅信息、适用策略和部署中的控制流程评估请求。动态策略流程有要求时,SMF与PCF交互。

  3. 准备受影响部分的更新。SMF判断是否需要修改UE的QoS信息、接入资源和UPF规则。记录中必须能够区分请求值与最终授权值。

  4. 下发并协调处理结果。AMF传递适用的N1和N2信息。SMF处理返回结果,并执行必要的后续更新。

检查服务接口跟踪记录时,可参考TS 29.502在Nsmf_PDUSession API根路径下定义的以下修改资源。这是路径模板,并非可直接执行的完整请求;API版本、服务地址、授权及请求体取决于具体部署。

更新现有SM上下文
POST {apiRoot}/nsmf-pdusession/{apiVersion}/sm-contexts/{smContextRef}/modify

网络发送PDU SESSION MODIFICATION COMMAND后,接受该命令的UE以PDU SESSION MODIFICATION COMPLETE响应。TS 23.502的阶段2图使用描述性标签“Command Ack”;解码报文时,应采用TS 24.501规定的实际5GSM NAS消息类型。上下文更新服务的HTTP响应不能替代这项NAS证据。

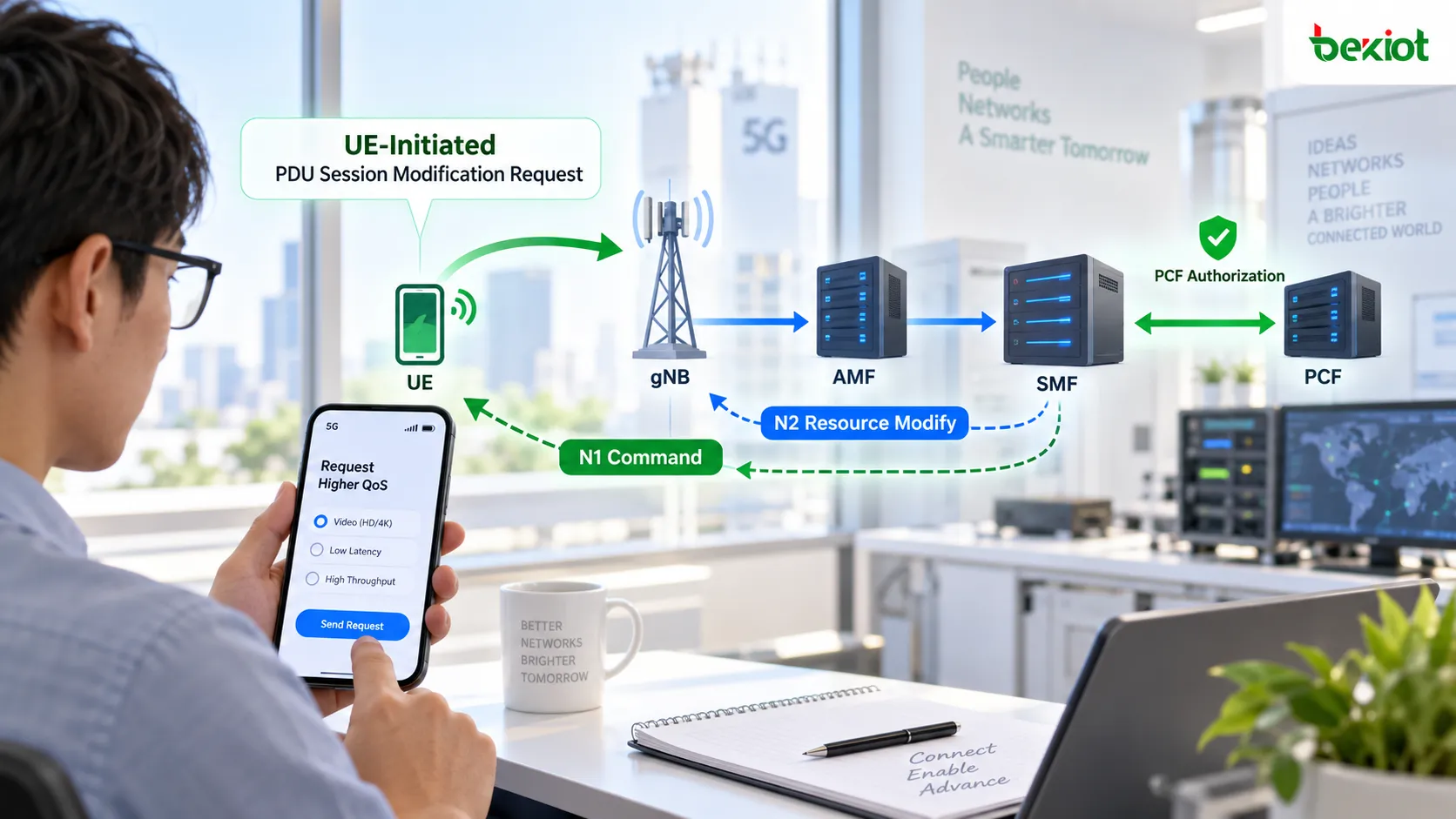

UE请求QoS修改的示意图,展示UE、gNB、AMF、SMF和PCF的角色
屏幕与箭头用于说明概念,并非标准化的手机操作界面或完整报文时序。N1会话管理内容和N2信息通过AMF传递;PCF是否参与取决于策略流程。

PCF触发的修改:明确速率限制的含义

网络策略变更可以在没有UE请求的情况下开始。例如,某运营商策略可能在满足用量条件后,将授权的下行Session-AMBR降至10 Mbps。这是假设的策略示例,并非3GPP默认值,也不是网络实测结果。用量检测和报告机制需要另外明确。

PCF通过现有策略关联将决策传递给SMF,随后SMF将其转化为适用的会话参数和执行规则。检查报文前,应先明确具体参数:如果没有说明方向、适用范围和流量类别,“将速率降至10 Mbps”并不是完整要求。

项目在修改排查中的含义常见误区
QFI标识PDU会话内的一个QoS流。将该标识本身视为优先级或比特率。
5QI标识一组QoS特性。将5QI值理解为数值形式的吞吐量上限。
GFBR和MFBRGBR QoS流按方向区分的流比特率参数。不加区分地将这些参数用于所有非GBR流。
Session-AMBR会话内非GBR QoS流共享的聚合限制,上行和下行分别设值。将其视为每个流各自享有的额度,或在同一比较中计入GBR流量。
QERUPF用于执行适用QoS控制的PFCP规则。认为QER ID就是QFI,或认为修改一个QER就会自动覆盖所有目标流量。

在上述示例中,应将授权的下行Session-AMBR与已安装的相关执行规则及非GBR下行聚合流量对照。单个应用的网速显示不足以作为证据。报文分类、会话中的其他流量、平均速率计算方式和测量位置都会影响比较结果。

SMF通过适用的策略控制流程报告策略执行结果。不能把通知已被接收的确认,记录为UE、RAN和UPF均已落实该决策的证明。

分别分析N1、N2和N4执行路径

N1:UE会话管理参数

N1是UE与AMF之间的参考点;会话管理NAS内容由UE和SMF处理,AMF负责转送。应检查命令中的实际QoS规则操作和流描述,再检查UE响应。图中从SMF指向UE的箭头通常表示逻辑上的会话管理通信,并非直接传输连接。

N2:接入网资源

N2连接AMF与接入网。SMF提供会话相关信息,由AMF传递。涉及接入资源变更时,应检查相关NGAP流程及其中获准或被拒绝的QFI。某个流成功,不能掩盖另一个流被拒绝。如果整个N2请求失败,其处理与部分成功不同;应沿原因值及SMF的后续动作继续分析。

N4:UPF规则

N4在SMF与UPF之间使用PFCP。应检查所请求的规则变更和PFCP响应中的Cause,包括适用情况下的拒绝或部分接受。有效排查应沿着目标流量的报文检测规则及其关联的执行、转发规则展开,而不是孤立检查无关的QER。

PFCP会话修改与PDU会话修改是不同流程。N4规则更新可以是更广泛会话变更的一部分,也可能出于其他用户面控制原因发生。并非每次修改都要在这三条路径上进行新的交互。TS 23.502包含有条件的更新和多个可能的N4更新时点;“先N4、再N2、后N1”的简化顺序不是通用时序。

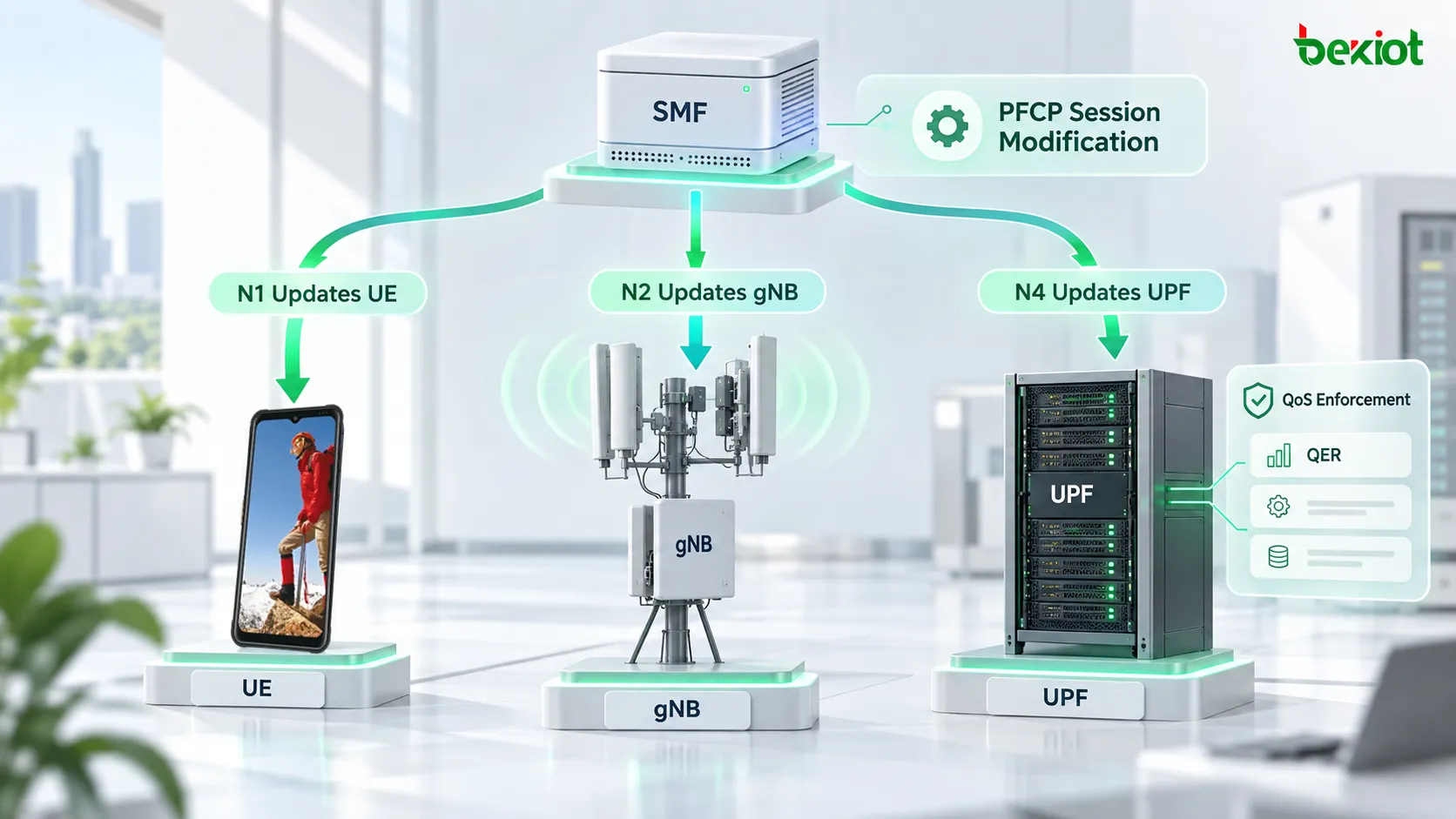

UE参数更新、gNB资源变更和UPF规则执行的概念对比图
图中归纳了三类职责。AMF转送N1会话管理内容和N2信息;PFCP仅适用于N4。箭头既不规定强制顺序,也不表示每次都要修改全部三条路径。

通过关联跟踪记录和流量测试验证结果

QoS更新不完整时,会话仍可能传输数据。因此,连接持续可用,并不能充分说明新策略是否已正确安装。应先记录预期的变更前后数值,再找出预期与执行首次出现偏差的位置。

核查点应保留的证据结果不一致时的下一步排查
触发与授权原始请求或通知;会话引用;请求值和授权值。错误的策略关联、过时的订阅信息或被拒绝的授权。
SMF转换SMF计划修改的UE、RAN和UPF参数。缺失的参数转换、错误的适用范围,或本应生成却未生成的更新。
UPF执行(如需要)PFCP事务和Cause;受影响的规则ID;已安装的分类与执行规则。规则更新被拒绝、UPF选择错误、流量未匹配或规则关联错误。
接入侧执行(如需要)NGAP结果及获准或被拒绝的QFI与原因。接纳或资源限制,以及部分失败处理不完整。
UE同步(如需要)已下发的命令、NAS响应、重传和更新后的UE上下文。下发失败、参数被拒绝或尚未消除的上下文差异。
实际服务表现变更前后的受控流量,并记录方向、分类、负载及时间信息。测量口径不一致、其他瓶颈,或策略实际上作用于不同的流量集合。

执行限速测试时,应提供足够的输入负载,并记录流量统计方法。将GBR与非GBR流量分开,不混合无关会话,并选择适合相应速率控制机制的观察时段。短暂突发超过目标值与聚合流量持续超限,是不同的结果。同样,无线条件较差时出现低吞吐量,也不能证明预期的限速机制已生效。

当RAN拒绝部分QFI时,应检查SMF如何协调剩余会话与UE上下文。不要把部分失败视为整个PDU会话必然失败,也不要把笼统的成功指示视为所有请求的流均已获准。重试前应保留事务证据,避免恢复尝试掩盖原始故障。

常见问题

常规QoS修改是否需要新的IP地址?

仅涉及QoS规则或比特率参数的变更,本身不要求为现有IP PDU会话分配新的IP地址。如果地址发生变化,应核查是否同时执行了其他流程,例如重新建立会话或会话连续性操作。

获准的5QI能否保证应用响应时间?

不能。QoS特性描述的是相关5G路径上的处理方式。应用处理和UPF之外的网络也会增加时延。如果会话变更已验证生效,但应用仍然缓慢,应测量这些额外环节,而不是反复修改该流的QoS。

测试时应如何处理短时间内连续发生的策略更新?

保留每次预期值及其实际事务时间线。较晚的决策可能取代先前测试所依据的值。在受控复现中,条件允许时先隔离单项变更,再重复约定的重叠更新场景。不要用当前流量结果与过时的策略快照比较。
