四川综合管廊项目应急通信解决方案

综合管廊

项目背景

这条四川 2.8 公里综合管廊是重要的城市地下生命线。封闭、潮湿的空间容易形成通信盲区,导致协同不畅和应急风险。

1. 项目背景

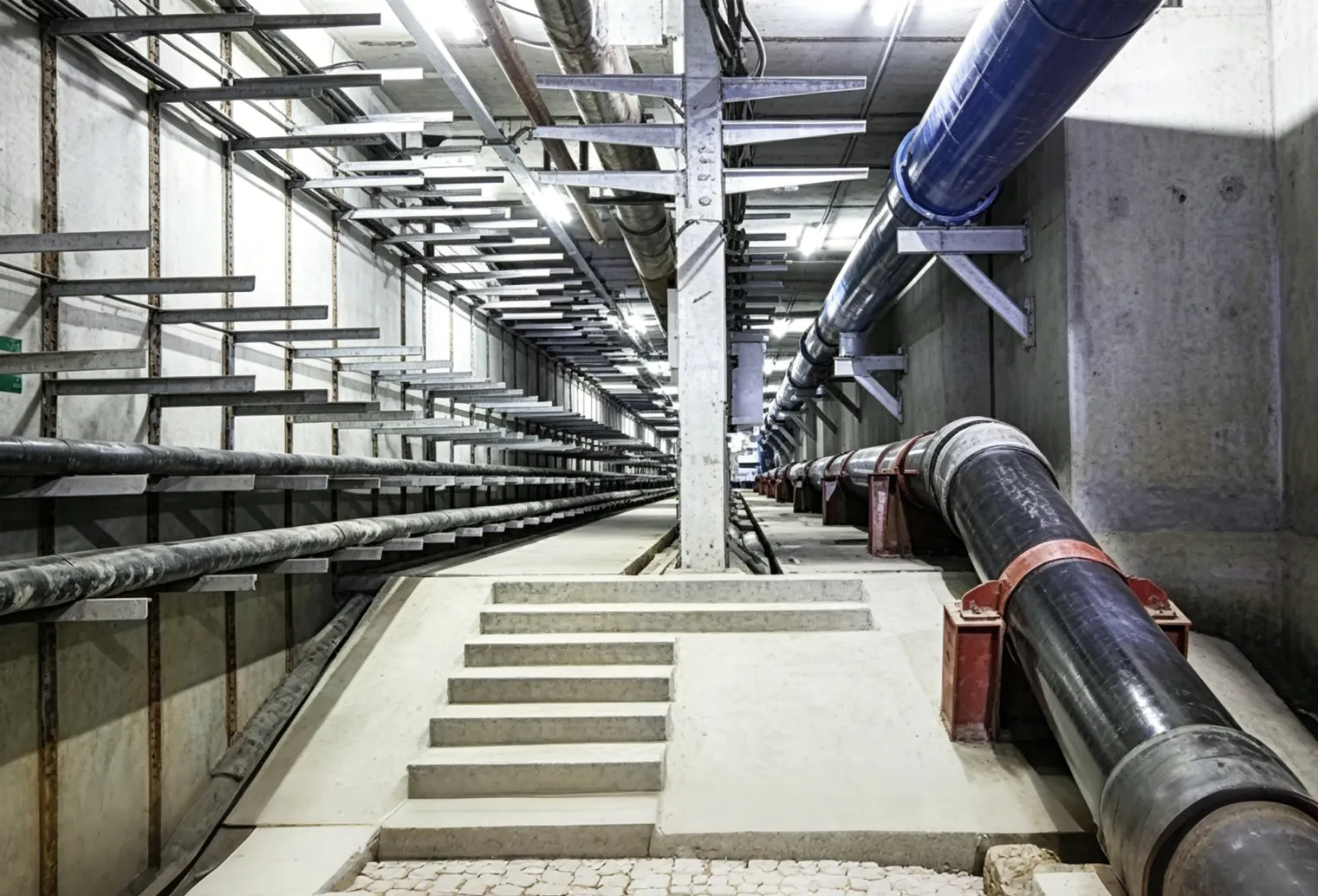

四川某地下综合管廊项目位于城市核心区,是市政管线集中承载枢纽,全长约 2.8 公里。项目采用多舱室设计,包括电力舱、通信舱和综合舱,承载电力、通信、给排水、燃气等关键市政管线,是保障城市正常运行的“地下生命线”。
该综合管廊穿越重点商圈和老城区,地质条件复杂。管廊内部空间封闭、光线较暗、潮湿多尘,管线分布密集,巡检通道狭窄,给日常巡检和应急处置带来较大挑战。
综合管廊需要维护人员定期巡检。一旦发生管线泄漏、设备故障、人员被困等突发情况,传统通信方式容易出现信号遮挡严重、通信盲区多、指令传达延迟等问题,导致维护人员与管理中心之间难以高效协同,可能造成事故扩大并影响城市正常运行。

2. 项目需求分析

结合综合管廊日常巡检和应急处置的实际需求,核心要求如下:
  • 实现综合管廊全区域语音通信覆盖无盲区,支持维护人员手持终端、管廊固定终端与管理中心之间双向对讲,并确保多支队伍可同时在线协同作业。

  • 具备应急联动功能,支持与管廊既有消防报警系统、环境监测系统(温度、湿度、气体浓度、积水)和通风系统深度集成,在报警触发后快速启动全链路应急响应。

  • 支持多网络融合,并兼容公安集群系统和运营商 4G/5G 网络,保障管理中心、维护人员以及消防、市政等应急部门之间的跨部门通信。

  • 实现维护人员和关键设备的精准定位,便于在应急情况下快速定位被困人员和故障点,提高救援效率。

  • 设备必须适应综合管廊封闭、潮湿、多尘、振动等恶劣环境,具备较高防护等级,并支持在市电中断时长时间应急运行,保障极端场景下通信不中断。

  • 管理中心应支持可视化调度,操作人员可查看管廊实时视频,并与现场人员进行语音、视频联动调度,直观掌握现场情况。

3. 总体系统设计

(1)系统架构(四层架构)

针对综合管廊环境特点,系统采用“控制中心 + 传输网络 + 现场终端 + 音视频联动”的四层架构,兼顾稳定性、可扩展性与场景适配能力,保障应急通信快速响应和全区域覆盖。

四川综合管廊应急通信系统架构图

层级
核心设备
功能说明
控制中心层
贝克 IP 广播对讲核心服务器、触摸屏调度台、综合视频平台
系统控制中枢,负责指令生成、设备管理、多系统联动和音视频调度,实现统一应急指挥。
传输网络层
工业级光纤环网、5G 专网基站、Mesh 自组网网关
构建双冗余链路,以光纤为主通道,5G 和 Mesh 作为备份,确保综合管廊全线无信号盲区、通信不中断。
现场终端层
应急求助电话、SIP 广播扬声器、手持对讲终端、声光报警设备、定位终端
部署在综合管廊不同区域,用于执行调度指令,并提供一键紧急呼叫、双向对讲等功能,实现现场与中心实时通信。
联动控制层
消防报警接口、环境监测模块、通风控制单元、管线监测终端
自动触发应急事件并协调不同类型设备协同工作,减少人工干预,提高响应效率。

(2)核心技术方案

1. 多网络融合通信技术

系统以工业级光纤环网为骨干,构建自愈时间 ≤50 ms 的双环冗余网络,保障终端传输稳定。每个管廊舱室部署 1 套专网基站,并通过分布式天线系统(DAS)实现全区域 5G 覆盖。同时部署 Mesh 自组网网关,支持一键启动自动组网。当主网络故障时,系统可自动切换,保障 72 小时不间断应急通信,有效解决管廊内部信号屏蔽问题。

2. 应急联动机制

当综合管廊环境监测或消防报警设备触发告警时,系统快速启动应急响应:包含位置和事件类型的报警信息发送至管理中心;对应区域声光报警和应急广播自动启动,播放疏散指引;通风和应急照明开启,舱室隔离门关闭;报警信息同步共享给消防、市政等部门,支撑跨部门协同处置。

3. 精准定位技术

系统采用混合定位方案,每个管廊舱室部署 1 个定位基站。维护人员佩戴定位终端,关键设备安装定位模块,实现较低定位误差。定位数据实时回传至调度台,清晰显示人员位置、移动轨迹和设备分布,便于在应急情况下快速规划疏散和救援路线。

4. 系统详细配置

贝克为综合管廊提供一体化通信解决方案,覆盖中心机房核心调度设备和管廊内部防爆应急通信终端,实现对讲、广播、视频联动和全周期录音的一体化控制。

(1)中心机房设备

设备名称
型号
数量
核心功能
IP 广播对讲核心服务器
BK-RCS-U4000
2 台(主备)
系统核心,支持 2000+ 终端注册,具备主备冗余,避免单点故障。
触摸屏调度台
DSC-BD215S-IP
1 台
21.5 英寸触摸屏,集成视频监控、语音调度等功能,实现一体化操作。
综合视频平台
BK-DVG108032P
1 台
支持接入 56 路高清摄像机,具备视频预览、回放和音视频联动功能。
录音服务器
BK-SIP8T
1 台
支持 24 小时录音、10 TB 存储和 365 天查询,便于应急追溯。

(2)管廊内部终端设备

设备类型
型号
安装位置
主要特点

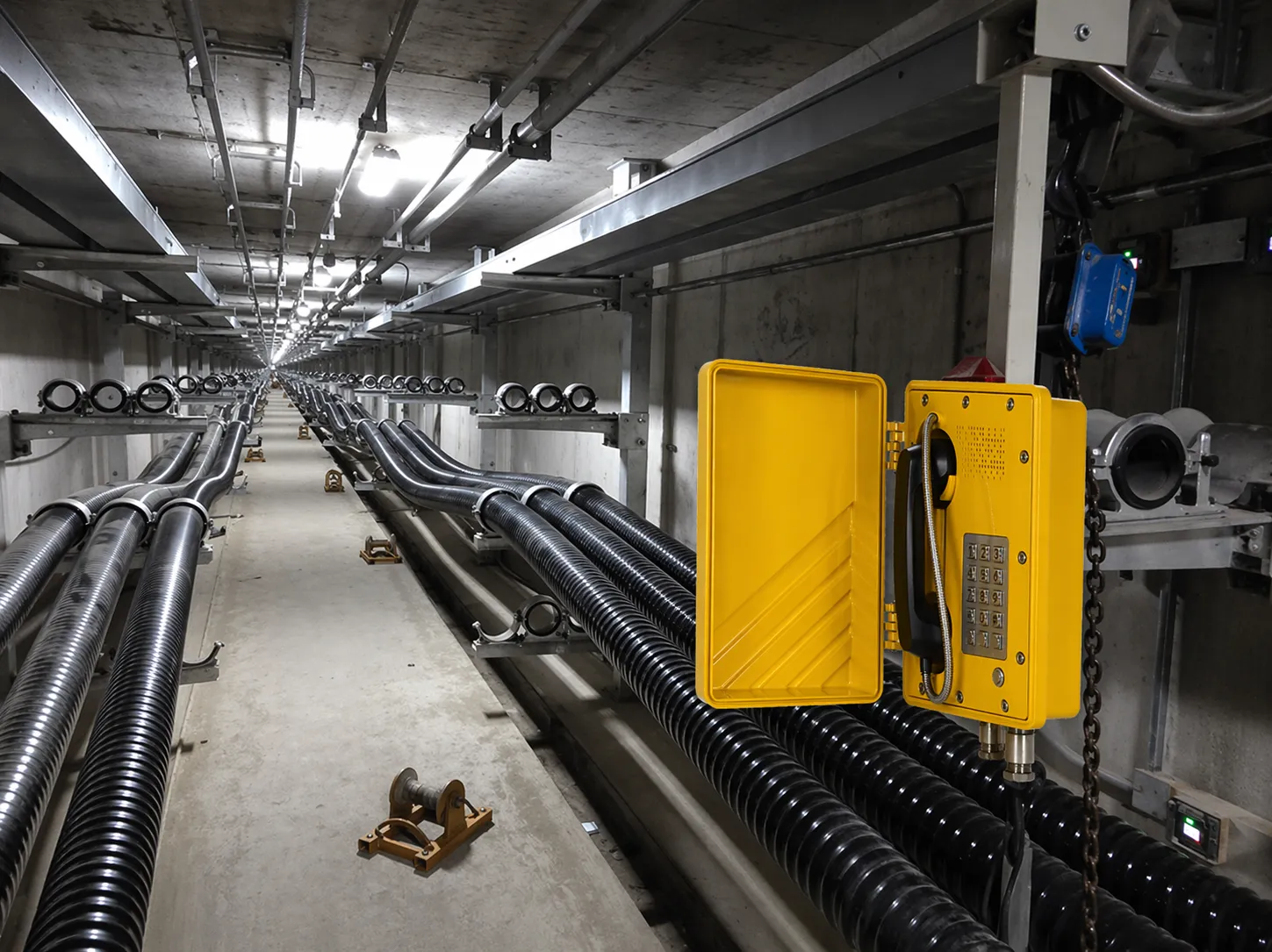

应急求助电话
EX-BT27, EX-BH621
沿巡检通道每 200 米布设
IP66 防护、一键呼叫、自动地址上报,适合潮湿多尘环境。
广播扬声器
SK Series
管廊顶部每 100 米布设
防水号角扬声器,大功率,50 米覆盖,广播清晰可听。
声光报警设备
Becke AL-200
舱室入口和交叉口
120 dB 高分贝报警,红蓝灯闪烁,可与广播联动发布疏散警报。

5. 系统功能与应用成效

(1)核心功能实现

功能模块
实现效果
用户反馈
一键紧急求助
紧急情况下按下求助按钮,3 秒内接通管理中心并自动上报位置,实现快速响应。
维护人员:“求助方便,能快速接通中心,处理突发情况更安心。”
全区域广播
支持全区广播或分区广播。应急指令和通知可清晰覆盖整个综合管廊,保障信息有效传达。
管廊运营方:“指令下达效率很高,应急响应效率明显提升。”
多网络协同
打破通信壁垒,使不同部门使用的不同设备互联互通,保障协同处置顺畅。
应急救援部门:“跨部门通信顺畅,便于快速协调并展开救援。”
精准定位
提供人员和设备实时定位,紧急情况下可快速识别被困人员和故障点,缩短救援时间。
管廊运营方:“定位准确,救援效率明显提高。”
可视化调度
调度台可显示实时视频,并与现场进行视频对讲,使操作人员直观看到现场情况并精准下达指令。
调度员:“现场情况一目了然,调度更准确、更高效。”
应急联动
报警触发后,不同类型设备自动联动,实现自动化应急处置,减少人工干预。
管廊运营方:“联动响应快,有效避免事故扩大。”

(2)实际应用成效

系统部署后,彻底解决了综合管廊通信盲区、指令传达延迟等痛点,实现全区域通信覆盖和多系统协同联动。日常巡检中,维护人员可与管理中心实时通信,及时上报管线状况;应急场景下,系统响应速度快,可快速协调相关部门,降低事故损失。
运行期间,系统成功处置了多起轻微突发事件,包括轻微管线泄漏和维护人员被困等,均快速处理且未扩大,充分验证了方案的稳定性和实用性。该系统为综合管廊安全运行提供了可靠的应急通信保障,并非常适合四川地区综合管廊项目复杂的地质和运行环境。
