防爆电话如何与无线电系统互通?

防爆电话通过 SIP、RoIP 和调度控制接入无线电系统。集成效果取决于 PTT 时序、模拟接口、危险区域边界、故障韧性及投运检查。

贝克电信

防爆电话如何与无线电系统互通?

防爆电话在危险区域提供固定呼叫点,手持和车载无线电台则随现场团队移动。两者可以通过兼容的电话平台、RoIP 网关和无线电接口通信。这种集成连接语音和发射控制,不会把电话变成无线电台,也不会将其 Ex 认证范围扩大到其他设备。

电话通信与无线电通信有哪些差异?

SIP 电话通常通过 PBX 或调度服务器建立全双工通话,语音由 RTP 传输。无线电用户通常共用一个信道或通话组,按下 PTT 发射,松开后接收。部分无线电系统还支持其他模式,因此应确认实际业务,不能把所有 DMR、P25 或 TETRA 呼叫视为相同。

集成系统必须将电话呼叫目的地映射到无线电资源,并协调讲话方向。在控制电台接口上,PTT 请求发射;COR、COS 或其他接收检测信号可以表示正在接收的通信。这些信号及其电气特性取决于电台和网关。

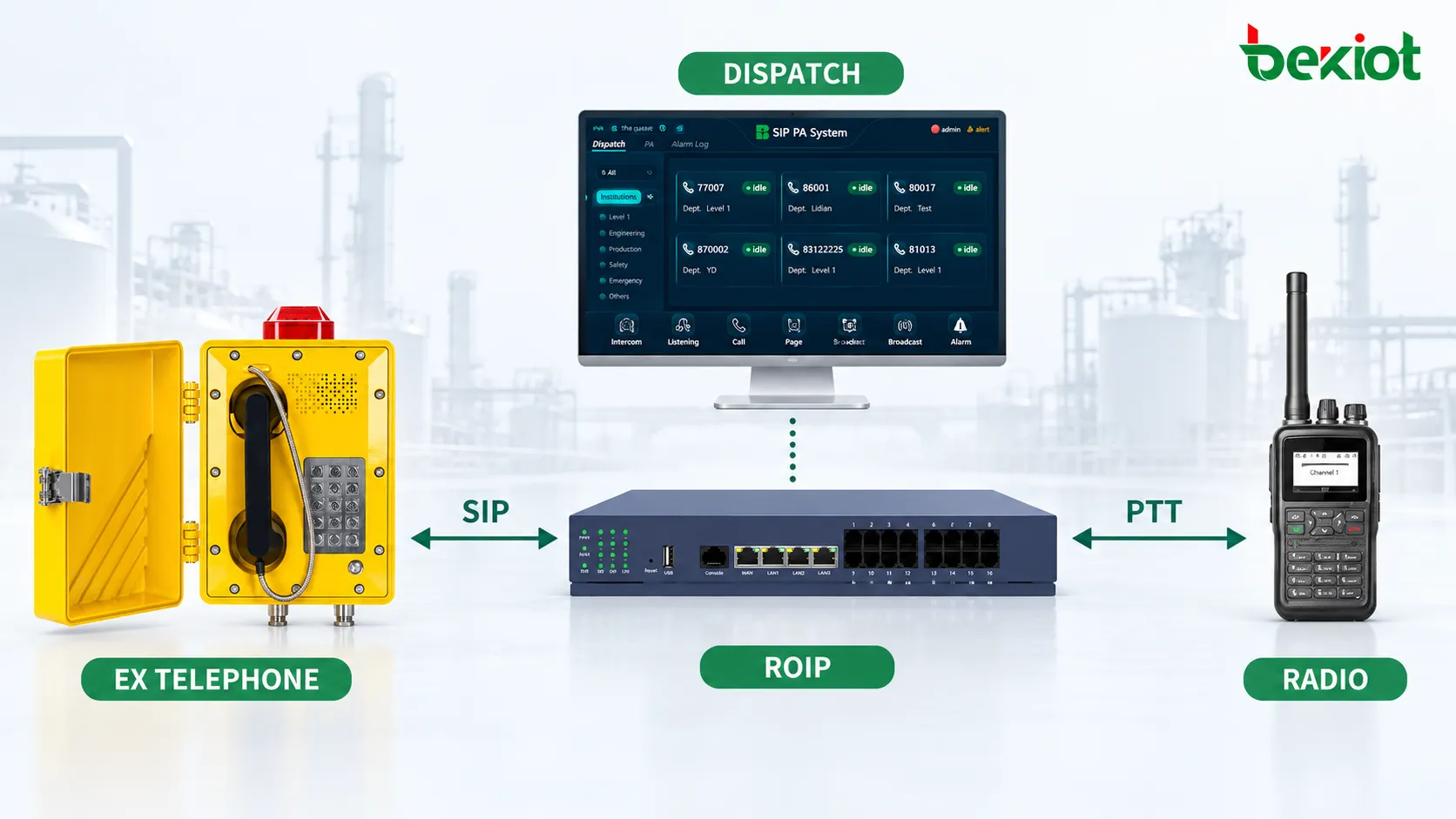

以 SIP 和 PTT 箭头连接 Ex 电话、RoIP 网关、调度屏幕和电台的概念示意图
SIP 与 PTT 桥接概念图

选择直接接入或由调度员控制

将电话目的地映射到无线电资源

在具备相应 SIP 路由支持时,一个分机号可以代表网关的某个无线电信道。例如,压缩机房电话可通过固定目的地呼叫维修组。PBX、网关或集成层必须提供所需路由与 PTT 行为;仅支持 SIP 并不能保证这两项功能。

由调度员在需要时连接两个系统

现场电话也可以先呼叫调度员,再由调度员选择合适的维修、安保或应急无线电资源。必要时,可通过临时桥接让来电者加入。这样,操作员能够控制哪些内容进入共享无线电信道,避免不必要的永久桥接持续占用资源。

位置标签和信道名称是需要配置的平台功能。可靠的分机与位置映射能够识别固定来电点,但应与安装记录核对,不能仅凭来电显示推定位置正确。

梳理音频与控制路径

在常见的控制电台方案中,电话 RTP 经 IP 网络和电话平台到达 RoIP 网关。网关向电台提供兼容的音频与 PTT 控制,再由该电台执行射频发射。接收到的无线电音频通过网关返回电话;如系统支持,还会使用接收状态。

这是音频与控制层面的互通,并非自动转换 DMR、P25 或 TETRA 空中接口。通话组身份、消息、加密及原生数字信令需要另行支持的接口。音频桥接不会保留全部无线电元数据,也不能保证端到端加密。

  • 确认控制电台的准确型号、获准使用的附件接口,以及信道或通话组的运行方式。

  • 核实音频接线、电平、阻抗和隔离要求,包括接口是 2 线还是 4 线。

  • 检查 PTT 极性与电气限值、接收检测行为,以及控制接线断开时的响应。

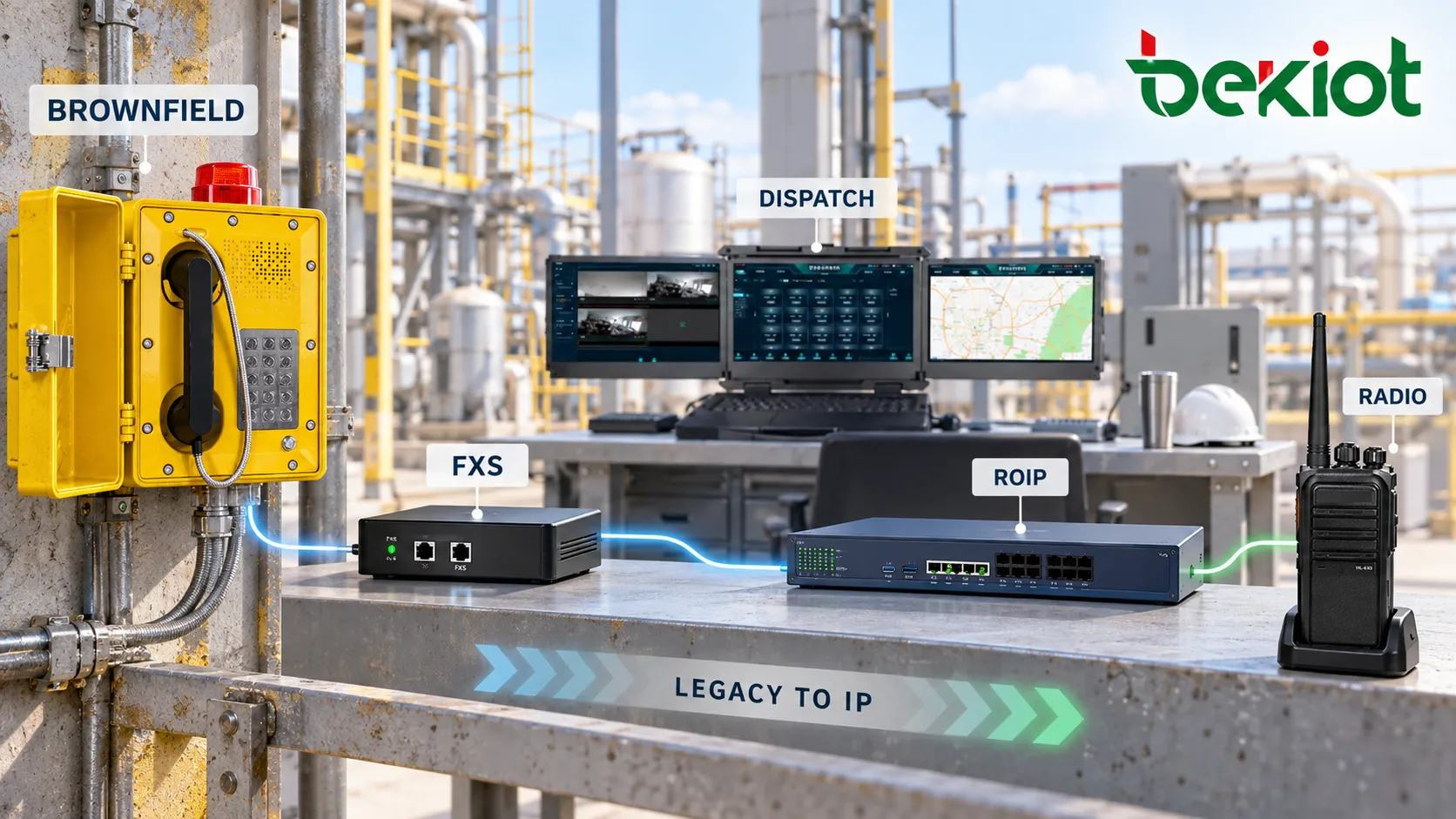

旧式电话通过 FXS 设备连接调度与 RoIP 设备,旁边放有电台的示意图
采用 FXS 和 RoIP 设备改造现有系统的示意图

将全双工语音适配为 PTT 操作

明确谁可以触发电台发射、接收过程中如何处理,以及何时结束发射。调度员 PTT 是一种方式。电话按键、DTMF 或集成命令只有在终端及完整系统支持时才是可选方式,并非每部防爆电话都具备的原生能力。

语音活动检测可以自动触发 PTT,但水泵、通风和警报声也可能将其触发。应在有代表性的噪声环境下测试阈值。忙碌指示和发射抑制同样需要系统支持接收状态与控制逻辑,不能自动避免所有射频冲突。

调整 PTT 提前时间或音频缓冲,使首个词语在发射路径就绪后才到达电台。调整释放延时,在保留最后一个音节的同时避免无谓占用信道。应使用实际设备验证快速轮流讲话,以及发射请求卡住后的恢复行为。

集成模拟电话时仍须满足 Ex 要求

现有模拟电话可通过兼容的 FXS 语音网关接入 SIP 或调度平台,而 RoIP 网关与现有电台连接。应检查环路电压、振铃、线路长度,以及必要的保护或隔离。FXS 兼容并不能证明设备适合危险区域。

除非设备自身的许可和安装条件允许,否则普通网关、服务器和控制电台应放在分类危险区域之外。电话、电源、进线装置、附件及接线均应保持在认证设计范围内。本安电路需要规定的关联设备与系统验证;普通 FXS 端口不是本安安全栅。改变现场连接前,应核对电话铭牌与证书范围。

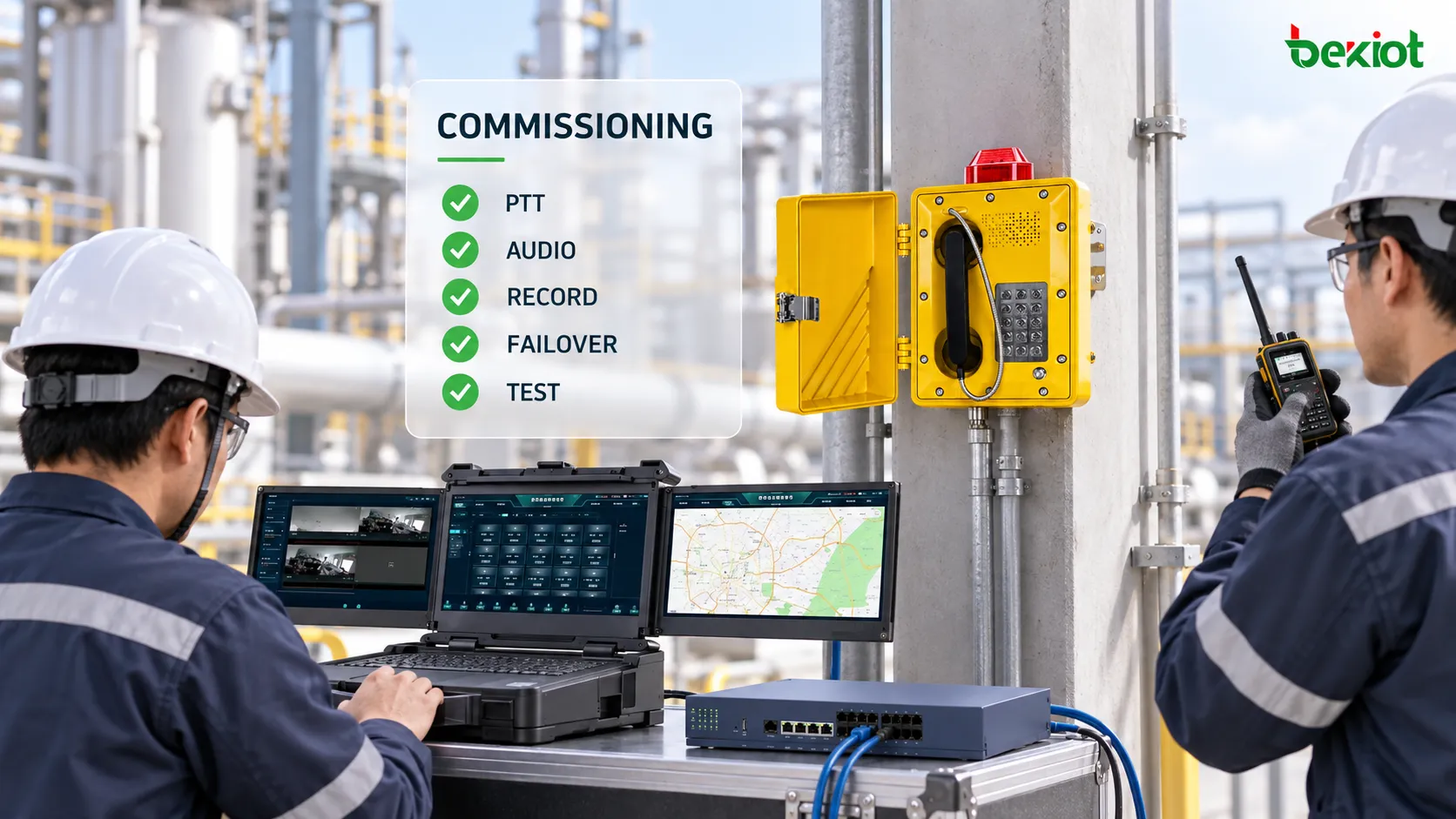

技术人员使用调度控制台及投运检查表检验电话与电台的示意图
涵盖 PTT、音频、录音和故障切换的投运示意图

控制音质与共同故障点

沿完整路径评估编解码兼容性、转码、网络时延、抖动与丢包。G.711 通常兼容性较广,编解码时延相对较低;压缩编解码则可能以额外处理为代价节省带宽。选择受支持的路径,并在拥塞条件下验证 QoS;QoS 无法修复不可用的链路。分别校准发射和接收电平,避免语音过弱、削波及失真。

识别电源、PBX、调度服务器、IP 链路、网关和控制电台的故障。根据服务连续性要求选择后备电源、冗余路径或备用设备,并保留可用的本地后备通信方式。应急优先级、信道权限和故障切换都属于系统设计选择,必须获得支持并经过测试。

确认录音同时包含电话和无线电音频,并在需要时同步事件时间戳。落实访问与保留规则。共享无线电信道可能让其他收听者听到电话音频,桥接也可能将无关无线电通信带入通话。

在现场条件下验证双向通信

  • 呼叫预定无线电资源,验证路由、授权、PTT 操作和可懂度均正确,且首词不被截断。

  • 从电台回传,验证接收检测、返回音频、忙碌行为及快速切换讲话者的表现。

  • 检查调度员资源选择、来电位置、临时桥接释放及双向录音。

  • 测试规定的电源、网络、服务器与网关故障,以及控制电台失效;验证恢复行为及后备操作流程。

  • 在有代表性的噪声、无线电覆盖和网络负载条件下重复可懂度检查,使用该区域获准的设备和作业程序。

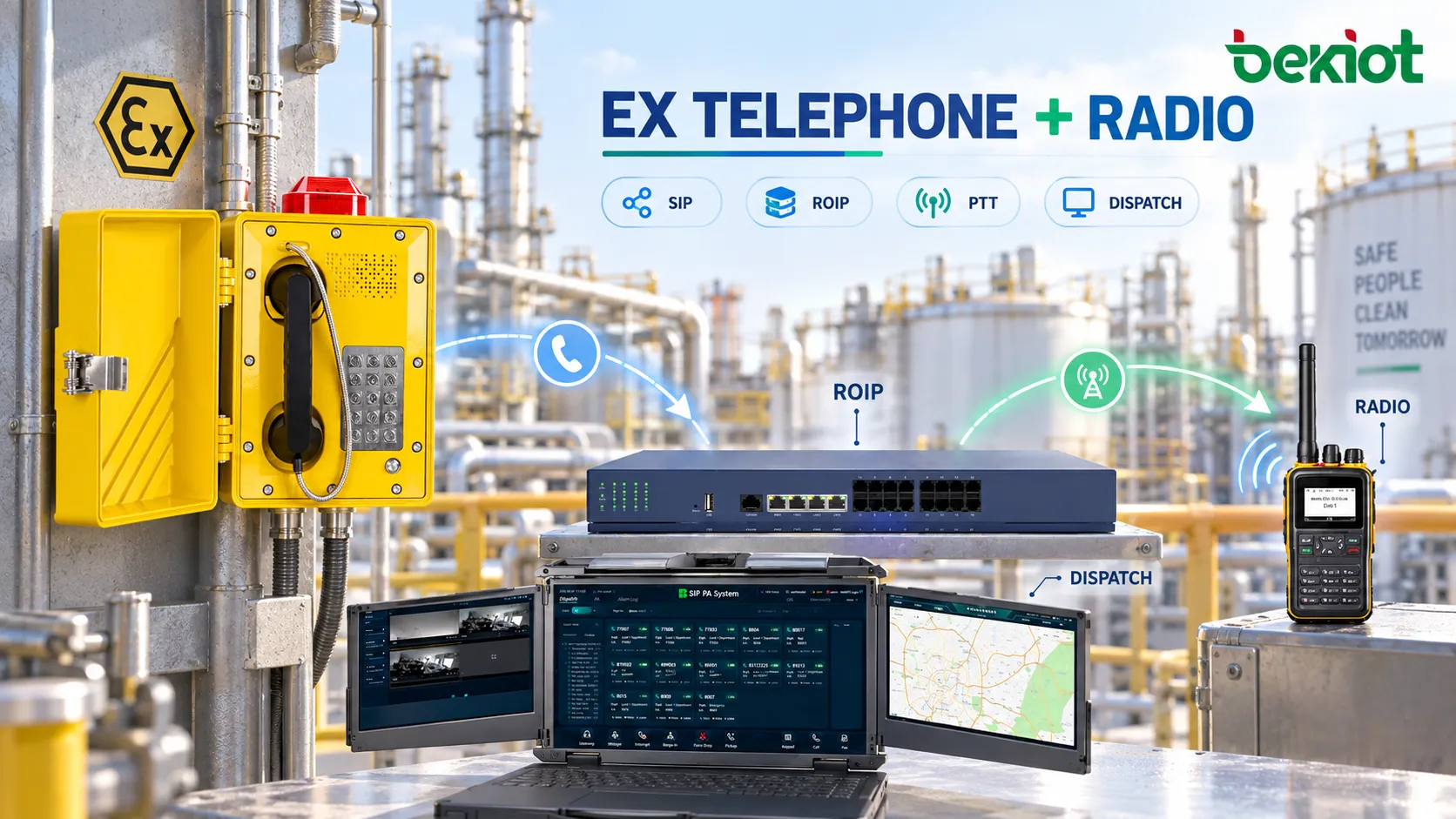

工厂中工业电话、电台、RoIP 网关与调度屏幕的概念示意图
整体互通概念图。每台现场设备及其安装方式仍须单独评估适用性。

常见问题

电话可以直接向 RoIP 网关注册吗?

只有网关支持所需注册服务器或对等连接方案时才可以。许多部署采用 PBX 管理电话,并将呼叫路由到网关资源。具有 SIP 接口不等于网关能够替代 PBX。

一台网关可以接入多个无线电组吗?

可能可以,但须受其支持的信道数、所连接电台和路由设计限制。基础音频接口不会自动选择任意数字通话组。

无线电用户可以拨打电话号码吗?

这需要系统支持数字输入、信令及获授权的电话路由。对于无键盘电台,预设热线可能更实用。另一个呼叫方向可参阅双向无线电台如何拨打电话号码。

增加网关会改变电话的 Ex 许可吗?

中央侧集成本身不会为现场电话认证或重新认证。任何电源、接线、附件或外壳配置变更都必须保持在证书和安装要求范围内,并由具备能力的人员审查。

技术参考

IETF RFC 3261 定义 SIP 会话控制,RFC 3550 定义 RTP 媒体传输。两者均不保证特定网关的无线电控制功能。IECEx 安装指南解释设备选择、证书条件和安装文件要求。
