SIP工业话机TR069 配置及支持说明

    概述

    TR-069

TR-069 是由 DSL 论坛开发的 CPE 广域网管理协议。它定义了 ACS 自动配置服务器对 CPE 客户端设备进行安全自动化配置和集中管理的框架。
TR-069
    图 1-1 TR-069 图解设计

    适用型号

本文档适用于门禁设备和话机设备。

    目标受众

本文档面向需要了解 TR-069 配置、RPC 方法、TR-111 扩展及参数模型的研发和测试人员。

    ACS / CPE

ACS 自动配置服务器

CPE 客户终端设备

话机配置 TR-069

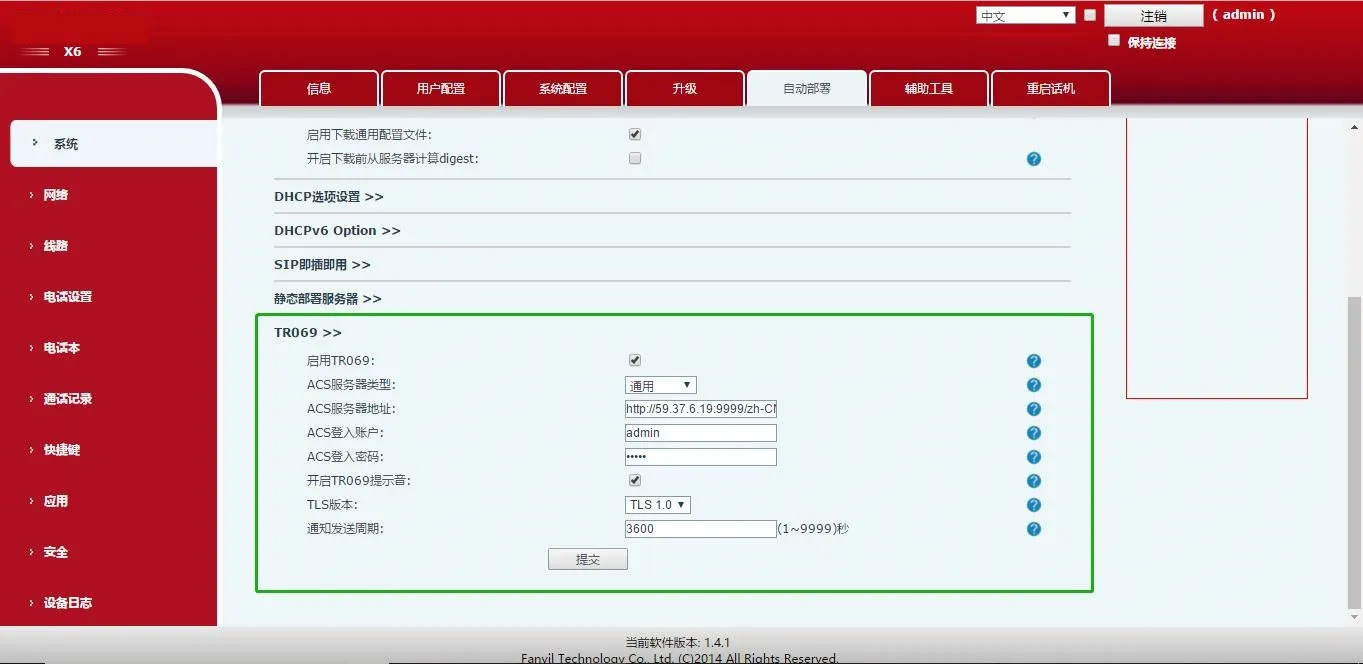

话机默认没有开启 TR-069。用户可使用管理员权限登录 Web 页面,进入 系统 → 自动部署 → TR069,并在对应区域配置参数。
TR-069 configuration  图 2-1

名称描述
Enable TR069是否启用
ACS Server Type配置项
ACS Server Address服务器地址或URL
ACS Login Account用户名
ACS Login Password密码
STUN Server AddressSTUN相关参数
Enable STUN是否启用

    话机支持的 TR-069 RPC 方法

RPC 方法用于 CPE 与 ACS 的双向通信,ACS 可通过 RPC 获取、设置、监控和维护设备参数。

RPC节点说明
GetRPCMethodsRPC功能说明
SetParameterValuesRPC功能说明
GetParameterValuesRPC功能说明
GetParameterNamesRPC功能说明
GetParameterAttributesRPC功能说明
SetParameterAttributesRPC功能说明
DownloadRPC功能说明
FactoryResetRPC功能说明
RebootRPC功能说明

    支持 TR-111

TR-111 属于 TR-069 协议族,用于扩展网关关联和 NAT 后设备连接请求能力,使 ACS 能够更好地管理 LAN 侧设备。

Device-Gateway Association

TR-111 supports gateway association so that the ACS can identify the gateway used by a LAN-side device.

NAT Connection Request

TR-111 supports UDP/STUN based connection requests for CPE devices located behind NAT gateways.

    TR-069 协议的参数模型

网络架构包含 Internet Gateway Device 和 LAN Device 两类数据模型。参数名称采用点分层树形结构,参数类型基于 SOAP 数据类型。

  1. Internet Gateway Device

  2. LAN Device

  3. Parameter names use a dotted tree hierarchy.

  4. Parameter types are based on SOAP data types.

节点名类型节点说明
InternetGatewayDevice.DeviceInfo.Object设备信息
InternetGatewayDevice.DeviceInfo.ManufacturerString设备制造商
InternetGatewayDevice.DeviceInfo.ManufacturerOUIString设备制造商
InternetGatewayDevice.DeviceInfo.ModelNameString产品型号
InternetGatewayDevice.DeviceInfo.DescriptionString设备信息
InternetGatewayDevice.DeviceInfo.ProductClassString产品型号
InternetGatewayDevice.DeviceInfo.SerialNumberString设备信息
InternetGatewayDevice.DeviceInfo.SoftwareVersionString版本信息
InternetGatewayDevice.DeviceInfo.HardwareVersionString版本信息
InternetGatewayDevice.DeviceInfo.SpecVersionString版本信息
InternetGatewayDevice.DeviceInfo.ProvisioningCodeString配置项
InternetGatewayDevice.DeviceInfo.UpTimeString时间参数
InternetGatewayDevice.DeviceInfo.DeviceLogString设备信息
InternetGatewayDevice.DeviceInfo.VendorConfigFile.{i}.Object配置项
InternetGatewayDevice.DeviceInfo.VendorConfigFile.{i}.NameString配置项
InternetGatewayDevice.DeviceInfo.VendorConfigFile.{i}.VersionString版本信息
InternetGatewayDevice.DeviceInfo.VendorConfigFile.{i}.DateString时间参数
InternetGatewayDevice.DeviceInfo.VendorConfigFile.{i}.DescriptionString配置项
InternetGatewayDevice.ManagementServer.Object设备信息
InternetGatewayDevice.ManagementServer.URLString服务器地址或URL
InternetGatewayDevice.ManagementServer.UsernameString用户名
InternetGatewayDevice.ManagementServer.PasswordString密码
InternetGatewayDevice.ManagementServer.PeriodicInformEnableString是否启用
InternetGatewayDevice.ManagementServer.PeriodicInformIntervalString时间参数
InternetGatewayDevice.ManagementServer.PeriodicInformTimeString时间参数
InternetGatewayDevice.ManagementServer.ParameterKeyString配置项
InternetGatewayDevice.ManagementServer.ConnectionRequestURLString服务器地址或URL
InternetGatewayDevice.ManagementServer.ConnectionRequestUsernameString用户名
InternetGatewayDevice.ManagementServer.ConnectionRequestPasswordString密码
InternetGatewayDevice.ManagementServer.UDPConnectionRequestAddressString服务器地址或URL
InternetGatewayDevice.ManagementServer.UDPConnectionRequestAddressNotificationLimitString时间参数
InternetGatewayDevice.ManagementServer.STUNEnableStringSTUN相关参数
InternetGatewayDevice.ManagementServer.STUNServerAddressStringSTUN相关参数
InternetGatewayDevice.ManagementServer.STUNServerPortStringSTUN相关参数
InternetGatewayDevice.ManagementServer.STUNUsernameString用户名
InternetGatewayDevice.ManagementServer.STUNPasswordString密码
InternetGatewayDevice.ManagementServer.STUNMaximumKeepAlivePeriodStringSTUN相关参数
InternetGatewayDevice.ManagementServer.STUNMinimumKeepAlivePeriodStringSTUN相关参数
InternetGatewayDevice.ManagementServer.NATDetectedStringSTUN相关参数
InternetGatewayDevice.ManagementServer.KickURLString服务器地址或URL
InternetGatewayDevice.ManagementServer.UpgradesManagedString是否启用
InternetGatewayDevice.Time.object时间参数
InternetGatewayDevice.Time.EnableBoolean是否启用
InternetGatewayDevice.Time.NTPServer1string服务器地址或URL
InternetGatewayDevice.Time.NTPServer2string服务器地址或URL
InternetGatewayDevice.Time.CurrentLocalTimedateTime时间参数
InternetGatewayDevice.Time.LocalTimeZoneString时间参数
InternetGatewayDevice.Time.LocalTimeZoneNameString时间参数
InternetGatewayDevice.Layer3Forwarding.Object路由或转发参数
InternetGatewayDevice.Layer3Forwarding.ForwardNumberOfEntriesUnsigned路由或转发参数
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.object路由或转发参数
InternetGatewayDevice.Layer3Forwarding.Forwarding.1.Enablestring是否启用
InternetGatewayDevice.Layer3Forwarding.Forwarding.1.Statusstring路由或转发参数
InternetGatewayDevice.Layer3Forwarding.Forwarding.1.Typestring路由或转发参数
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.DestIPAddressstring路由或转发参数
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.DestSubnetMaskstring路由或转发参数
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.SourceIPAddressstring路由或转发参数
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.SourceSubnetMaskstring路由或转发参数
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.GatewayIPAddressstring路由或转发参数
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.Interfacestring路由或转发参数
InternetGatewayDevice.Layer3Forwarding.Forwarding.{i}.ForwardingMetricstring路由或转发参数
InternetGatewayDevice.UserInterface.Object用户界面信息
InternetGatewayDevice.UserInterface.UpgradeAvailableString用户界面信息
InternetGatewayDevice.UserInterface.CurrentLanguageString用户界面信息
InternetGatewayDevice.Services.VoiceService.{i}.objectVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceServiceNumberOfEntriesunsignedIntVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfileNumberOfEntriesunsignedIntVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.objectVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.MaxProfileCountstringVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.MaxLineCountstringVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.MaxSessionCountstringVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SignalingProtocolsstringVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.FaxT38booleanVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.FaxPassThroughbooleanVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.ModemPassThroughbooleanVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.ToneGenerationbooleanVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.RingGenerationbooleanVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.VoiceLineTestsbooleanVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.objectSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.RolestringSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.ExtensionsstringSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.TransportsstringSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.URISchemesstringSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.EventSubscriptionbooleanSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.ResponseMapbooleanSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.TLSAuthenticationProtocolsstringSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.TLSAuthenticationKeySizestringSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.TLSEncryptionProtocolsstringSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.H323.objectVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.H323.FastStartbooleanVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.H323.H235AuthenticationMethodsstringVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.CodecsobjectVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.Codecs.{i}.EntryIdunsignedIntVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.Codecs.{i}.CodecstringVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.Codecs.{i}.BitRateunsignedIntVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.objectVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.ResetbooleanVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.NumberOfLinesunsignedIntVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.NamestringVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SignalingProtocolstringVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.MaxSessionsunsignedIntVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.DTMFMethodstringVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.STUNEnablebooleanSTUN相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.STUNServerstringSTUN相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.RTP.objectRTP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.RTP.LocalPortMinunsignedIntRTP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.RTP.LocalPortMaxunsignedIntRTP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.RTP.DSCPMarkstringRTP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.RTP.TelephoneEventPayloadTypestringRTP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.objectSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.Enableboolean是否启用
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.DirectoryNumberstringSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.StatusstringSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallStatestringSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.RingMuteStatusstringVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.RingVolumeStatusstringVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.SIP.objectSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.SIP.AuthUserNamestring用户名
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.SIP.AuthPasswordstring密码
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.objectVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallWaitingEnablebooleanVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallForwardUnconditionalEnablebooleanVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallForwardUnconditionalNumberstringVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallForwardOnBusyEnablebooleanVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallForwardOnBusyNumberstringVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallForwardOnNoAnswerEnablebooleanVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallForwardOnNoAnswerNumberstringVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.CallTransferEnablebooleanVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.MWIEnablebooleanVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.MessageWaitingstringVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.AnonymousCallEnablebooleanVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.Line.{i}.CallingFeatures.DoNotDisturbEnablebooleanVoIP能力或线路参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.objectSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.ProxyServerstringSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.ProxyServerPortstringSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.ProxyServerTransportstringSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.RegistrarServerstringSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.RegistrarServerPortstringSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.RegistrarServerTransportstringSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.UserAgentDomainstringSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.UserAgentPortstringSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.UserAgentTransportstringSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.OrganizationstringSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.RegisterRetryIntervalstring时间参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.RegisterExpiresstring时间参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.DSCPMarkunsignedIntSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.VLANIDMarkintSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.EthernetPriorityMarkintSIP相关参数
InternetGatewayDevice.Services.VoiceService.{i}.VoiceProfile.{i}.SIP.X_ATP_OptionTime.object时间参数
InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.6.SIP.X_ATP_OptionTime.IntervalTimetUnsigned时间参数
InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.6.SIP.X_ATP_OptionTime.OptionsTypeunsignedIntSIP相关参数







目录
客服 电话
We use cookie to improve your online experience. By continuing to browse this website, you agree to our use of cookie.

Cookies

This Cookie Policy explains how we use cookies and similar technologies when you access or use our website and related services. Please read this Policy together with our Terms and Conditions and Privacy Policy so that you understand how we collect, use, and protect information.

By continuing to access or use our Services, you acknowledge that cookies and similar technologies may be used as described in this Policy, subject to applicable law and your available choices.

Updates to This Cookie Policy

We may revise this Cookie Policy from time to time to reflect changes in legal requirements, technology, or our business practices. When we make updates, the revised version will be posted on this page and will become effective from the date of publication unless otherwise required by law.

Where required, we will provide additional notice or request your consent before applying material changes that affect your rights or choices.

What Are Cookies?

Cookies are small text files placed on your device when you visit a website or interact with certain online content. They help websites recognize your browser or device, remember your preferences, support essential functionality, and improve the overall user experience.

In this Cookie Policy, the term “cookies” also includes similar technologies such as pixels, tags, web beacons, and other tracking tools that perform comparable functions.

Why We Use Cookies

We use cookies to help our website function properly, remember user preferences, enhance website performance, understand how visitors interact with our pages, and support security, analytics, and marketing activities where permitted by law.

We use cookies to keep our website functional, secure, efficient, and more relevant to your browsing experience.

Categories of Cookies We Use

Strictly Necessary Cookies

These cookies are essential for the operation of the website and cannot be disabled in our systems where they are required to provide the service you request. They are typically set in response to actions such as setting privacy preferences, signing in, or submitting forms.

Without these cookies, certain parts of the website may not function correctly.

Functional Cookies

Functional cookies enable enhanced features and personalization, such as remembering your preferences, language settings, or previously selected options. These cookies may be set by us or by third-party providers whose services are integrated into our website.

If you disable these cookies, some services or features may not work as intended.

Performance and Analytics Cookies

These cookies help us understand how visitors use our website by collecting information such as traffic sources, page visits, navigation behavior, and general interaction patterns. In many cases, this information is aggregated and does not directly identify individual users.

We use this information to improve website performance, usability, and content relevance.

Targeting and Advertising Cookies

These cookies may be placed by our advertising or marketing partners to help deliver more relevant ads and measure the effectiveness of campaigns. They may use information about your browsing activity across different websites and services to build a profile of your interests.

These cookies generally do not store directly identifying personal information, but they may identify your browser or device.

First-Party and Third-Party Cookies

Some cookies are set directly by our website and are referred to as first-party cookies. Other cookies are set by third-party services, such as analytics providers, embedded content providers, or advertising partners, and are referred to as third-party cookies.

Third-party providers may use their own cookies in accordance with their own privacy and cookie policies.

Information Collected Through Cookies

Depending on the type of cookie used, the information collected may include browser type, device type, IP address, referring website, pages viewed, time spent on pages, clickstream behavior, and general usage patterns.

This information helps us maintain the website, improve performance, enhance security, and provide a better user experience.

Your Cookie Choices

You can control or disable cookies through your browser settings and, where available, through our cookie consent or preference management tools. Depending on your location, you may also have the right to accept or reject certain categories of cookies, especially those used for analytics, personalization, or advertising purposes.

Please note that blocking or deleting certain cookies may affect the availability, functionality, or performance of some parts of the website.

Restricting cookies may limit certain features and reduce the quality of your experience on the website.

Cookies in Mobile Applications

Where our mobile applications use cookie-like technologies, they are generally limited to those required for core functionality, security, and service delivery. Disabling these essential technologies may affect the normal operation of the application.

We do not use essential mobile application cookies to store unnecessary personal information.

How to Manage Cookies

Most web browsers allow you to manage cookies through browser settings. You can usually choose to block, delete, or receive alerts before cookies are stored. Because browser controls vary, please refer to your browser provider’s support documentation for details on how to manage cookie settings.

Contact Us

If you have any questions about this Cookie Policy or our use of cookies and similar technologies, please contact us at support@becke.cc .
