指挥控制中心的位置感知紧急呼叫

位置感知紧急呼叫将呼叫者身份与固定记录、移动定位和 GIS 调度相连。来源、数据年龄、不确定性、权限及备用程序,决定调度员能否安全使用各项位置信息。

贝克电信

指挥控制中心的位置感知紧急呼叫

紧急呼叫可能识别某个设施,但资产数据库指向另一地点,而呼叫者仍在移动。可靠流程会将身份与位置来源关联,检查数据年龄及不确定性,并呈现作业情境。单一地图标记无法确定呼叫者位置,也不能保证适当的响应。

位置记录需要的不只是坐标

经纬度可以指向一栋建筑,却未必指出正确入口、楼层或房间。应将地址与现场描述连同坐标保存,包括隧道标记、站台、设备编号及通行限制。室内垂直信息应标明来源及参考基准;楼层标签并不自动等于测得的高度。

记录项目调度员需要的信息
作业位置场站、建筑、楼层、房间、区域及可用的进入路线描述。
几何数据与基准坐标或覆盖范围、坐标参考基准,以及可取得时的垂直基准。
数据来源资产记录、GNSS、网络估计或人工确认;识别定位对象是设备还是人员。
时间测量时间戳,以及另行记录的固定数据最后验证时间。
不确定性来源提供的精度、范围或可信度信息;不要自行编造精度。
验证与权限验证者、记录有效性,以及获准的使用、分享及保留方式。

例如,“12 秒前更新”与“估计在 20 米以内”描述的是数据年龄与来源报告的估计,而非保证精度。已验证的安装记录可能仍适用于固定电话,但相同的数据年龄对移动中的呼叫者可能无法接受。

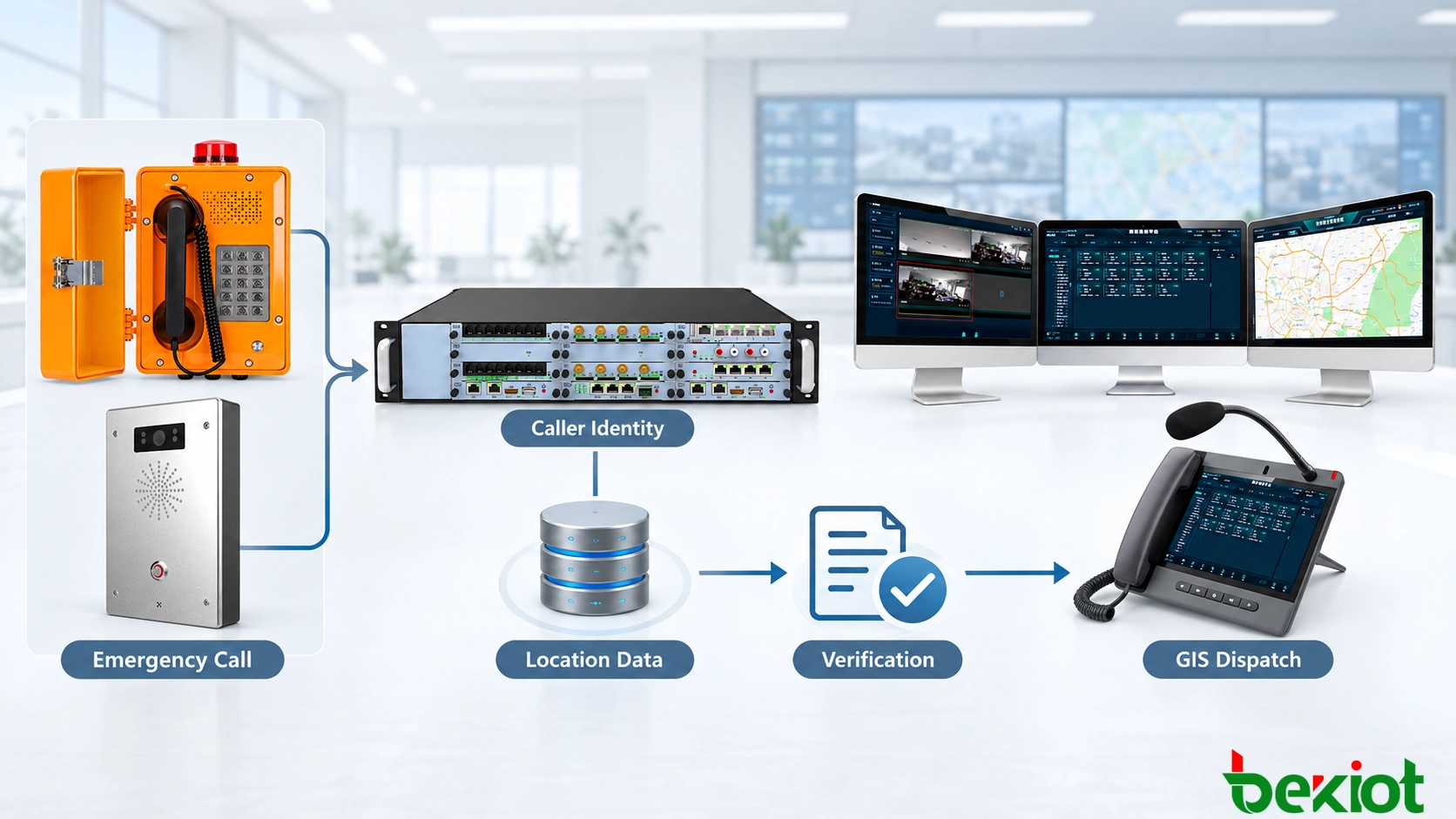

紧急电话连接呼叫者身份、位置数据库、验证及 GIS 调度的示意图
呼叫者身份、位置数据及验证是调度前的不同步骤。

不同终端提供不同证据

固定电话与对讲机

将 SIP 账号、分机或资产身份关联至已批准的安装记录。模拟电话则须将 FXS 网关及端口对应到现场终端。搬迁、重新布线或端口重新分配时必须更新记录。通话成功不能证明画面位置与实际安装地点一致。

移动应用程序

支持的应用程序可以依设备能力、权限及连接状况取得 GNSS、Wi-Fi 或移动网络定位,并在事件期间提供更新。室内与地下环境可能降低精度或可用性。应区分当前测量、网络估计与最后已知位置,并显示测量时间。

无线电与一键通用户

无线电身份、呼号或通话组识别的是通信资源,不一定是精确位置。有些终端与网络提供 GNSS,其他系统只能识别无线电站点或覆盖范围。RoIP 网关连接通信路径,但不会产生定位能力。来源若只支持区域,就应显示区域。

临时设备

指挥车、便携式卫星终端及临时 SIP 套件需要当前部署记录。授权用户应设置地点、负责团队、启用时间及到期条件。部署结束时关闭记录或使其到期,避免下一次事件沿用旧位置。

从信令到已验证的 GIS 信息

  1. 接收呼叫与可取得的呼叫者或终端身份,并评估身份可信度。

  2. 取得该身份对应的已批准资产记录或支持的定位来源。

  3. 比较来源、对象、时间戳、不确定性及验证历史,保留互相冲突的候选结果。

  4. 将坐标、地址描述及室内参考数据规范化,同时保留来源信息。

  5. 显示选定结果及其限制,并将通话与位置证据附加到同一事件。

SIP 注册或一般 SIP 通话不保证位置信息能送达。RFC 6442 定义 Geolocation 传递,包括对 PIDF-LO 正文或远程获取位置对象的引用。终端、中间节点及接收应用程序都必须支持所选方式。在资产数据库查询身份是另一种集成路径,并不能证明 SIP 本身承载了坐标。

PIDF-LO 可以连同使用规则表达位置。应依适用接口及作业政策,检查路由使用权限、再传送限制及保留要求。尽可能验证来源并限制访问;收到坐标本身既不能证明其真实性,也不授权无限制跟踪员工。

贝克通信调度平台提供相关通信环境;项目必须确认位置来源、地图服务及支持接口。

指挥控制中心 IP 电话调度系统

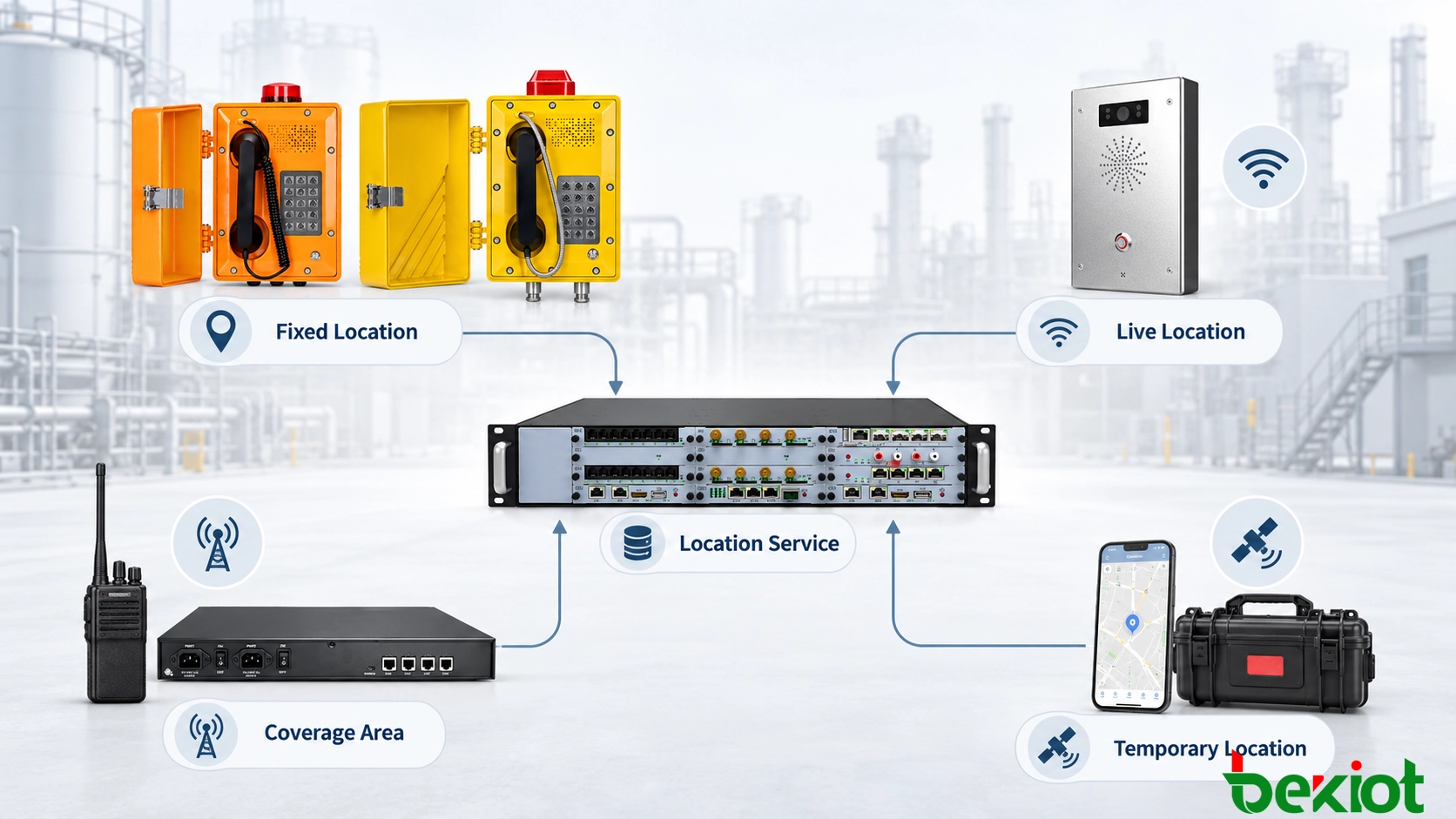

固定电话、对讲机、无线电设备及便携式套件连接位置服务的示意图
固定、实时、覆盖区域及临时记录具有不同含义。

处理缺失、过时及冲突位置

维度可能状态作业解读
可用性可用、部分可用、不可用是否存在可用的位置描述或几何数据。
新鲜度实时、近期、最后验证、过时依情境判断测量或验证数据的年龄。
可信度已验证、估计、冲突、未确认支持结果的证据;系统内部状态不等于有保证的统计置信水平。

实时估计即使未经验证,也可能有用。最后验证的固定记录即使不是实时数据,也可能可靠。过时的移动位置不得呈现为当前位置。来源冲突时,应比较时间戳、不确定性及出处,显示候选位置,并请呼叫者确认标志、建筑、站台或附近地标。

应将呼叫者确认的描述与原始自动数据一并保留。记录调度员采用的位置及原因。可接受的数据年龄取决于移动情况与响应任务,并没有适用所有终端的统一过时判定间隔。

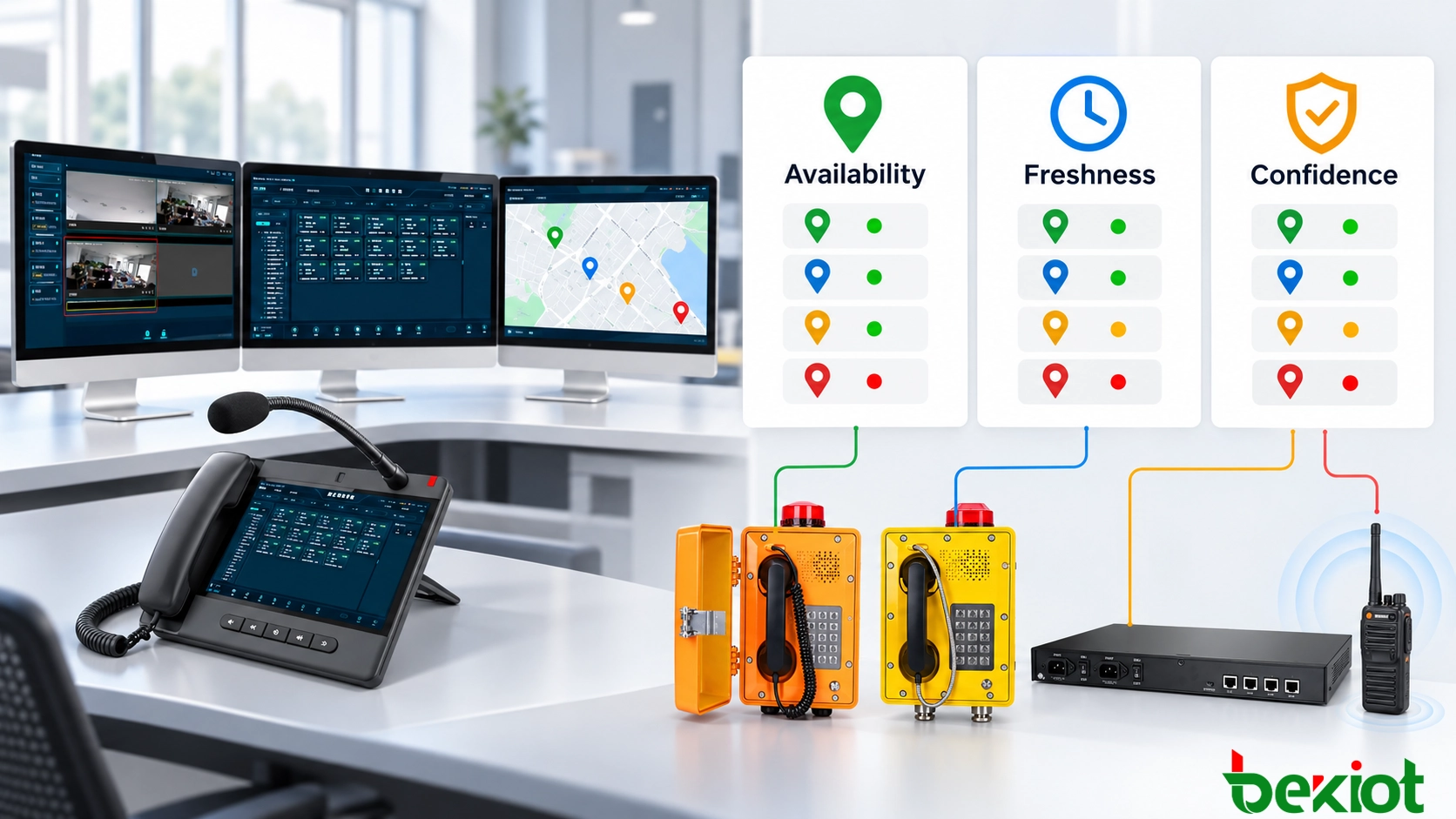

调度屏幕与独立可用性、新鲜度、可信度指标的示意图
三项指标帮助区分数据缺失、数据老化与证据不确定性;

将位置用于适当的调度决策

内部调度可依场站或服务区域规则选择负责值班组,并在其无法接听时选择备用人员。转接时应保留原始身份与位置。路由至辖区公共紧急受理服务,是另一项受监管的集成,取决于当地紧急通信网络、已验证位置与路由安排。单靠内部 GIS 规则无法提供该服务,也不能证明法规符合性。

支持的集成可以识别附近摄像机、警报、广播区域、无线电组及响应资源。应选择具备资格、可用且有可行进入路线的人员;最近的标记可能被限制区域或封闭入口隔开。在接口允许时,将通话、通知、录音及操作关联至同一事件编号。

可靠性、访问控制与验收测试

应设计降级模式,让 GIS、定位或资产数据库故障时仍可接听语音。显示缓存固定记录或文字描述,清楚标示数据年龄与来源。定义人工位置确认及升级处理,避免地图请求失败阻断调度员作业。

依角色限制记录变更及移动位置访问。记录旧值、新值、用户、时间与原因,并定义保留及分享方式。设备搬迁、更换、网关重新布线、网络迁移或建筑变更后,应重新检查固定设备。比对实体标签、终端身份、网关端口、资产记录与地图位置。

  • 从实际安装位置测试固定与模拟终端,包含变更后的网关端口映射。

  • 测试移动中的用户、定位权限遭拒、过时读数及 GNSS/Wi-Fi 结果冲突。

  • 测试无线电覆盖范围记录,以及部署到新地点的临时终端。

  • 中断 GIS、定位及中央数据库访问,验证语音接听与人工备用程序。

  • 验证摄像机与广播区域关联、转接、权限、变更日志及事件关联。

常见问题

多个中心可以共用位置记录吗?

可以,通过支持的共享或同步数据服务实现。启用多中心编辑前,应定义主记录所有者、更新分发、离线行为及冲突解决机制。

如何让室内地图与不同 GIS 系统保持一致?

使用一致的建筑、楼层、房间及资产标识符。管理图纸版本并测试坐标转换,让同一事件在不同系统中显示于相同位置。变更后应在现场重新验证。

不持续跟踪员工也能运行吗?

可以。固定电话可使用安装记录,支持的移动流程可在紧急功能启动时请求位置。应应用必要权限与访问限制;位置收集取决于实际设计。
