如何在IP电话上配置静态IP地址?

简介

概述

本指南介绍如何为电话机配置静态IP地址。

适用机型

该操作适用于本公司所有电话机型号。

适用人群

本文档面向需要在电话机上配置静态IP的用户。

操作步骤

准备工作

① 一台接入交换机、自动获取IP地址的电话机。

② 与电话机接入同一交换机、网络连通正常的配置电脑。

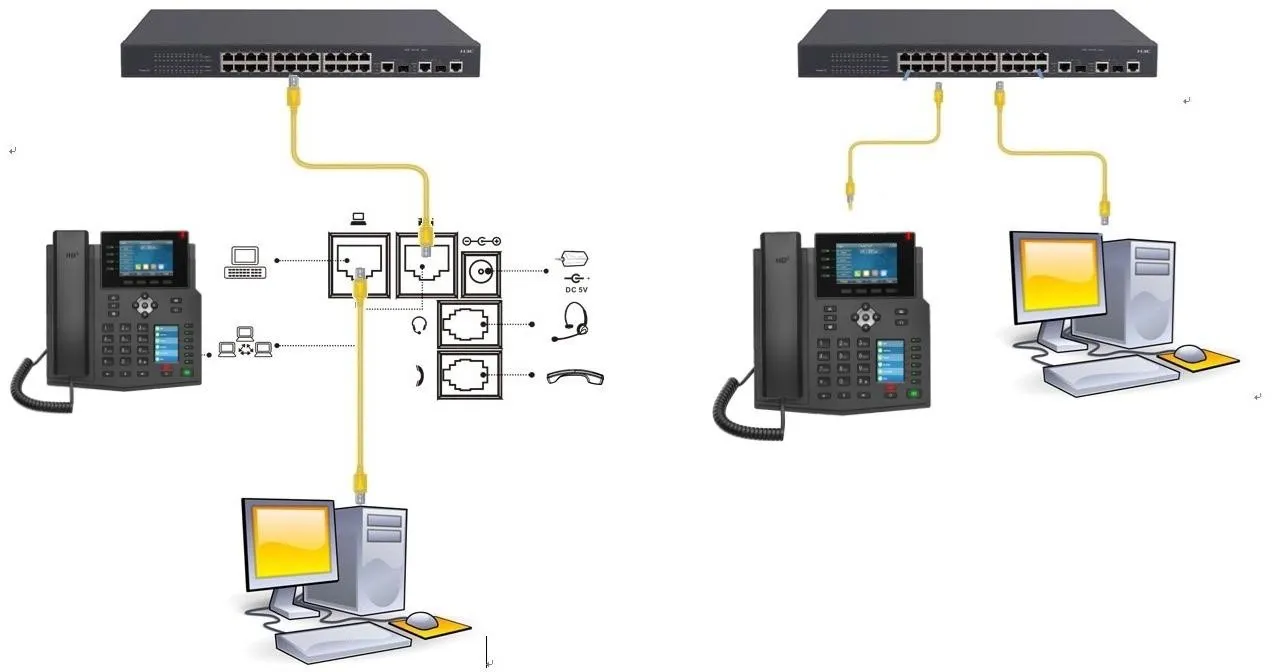

连接示意图如下。

电话机与电脑连接示意图

配置方式

通过电话机屏幕配置静态IP

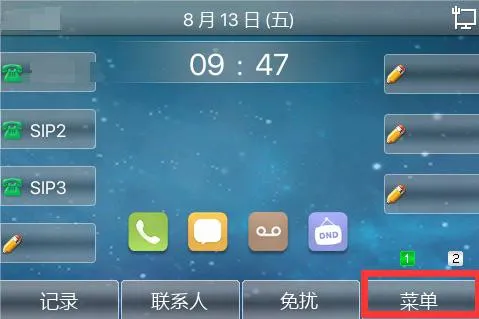

在电话机LCD屏幕点击 菜单 -- 高级设置(默认密码:123/admin)-- 网络 -- 网络设置 -- IPv4。将网络类型改为静态并保存设置。返回上级菜单,选择静态设置,填写所需IP信息并再次保存,如图1至图7所示。

电话机菜单界面

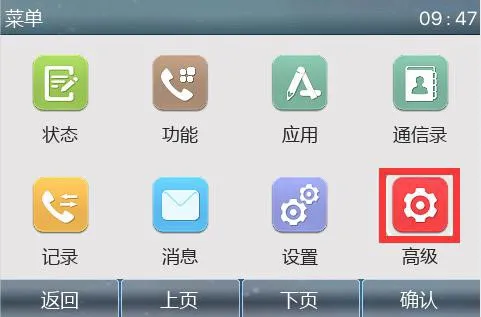

电话机设置菜单

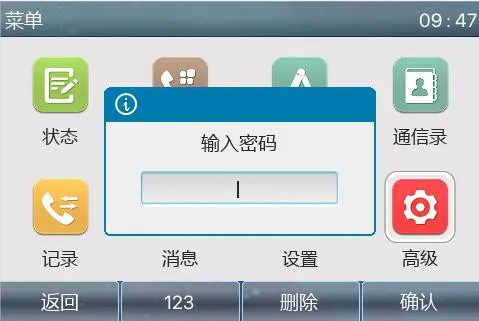

输入设置密码

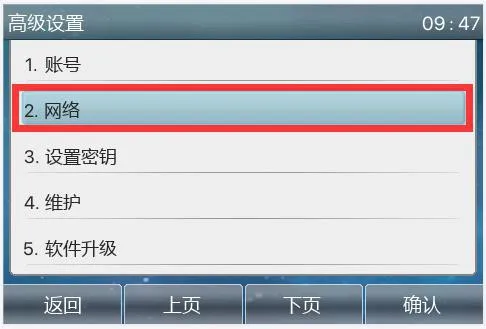

高级设置-网络菜单

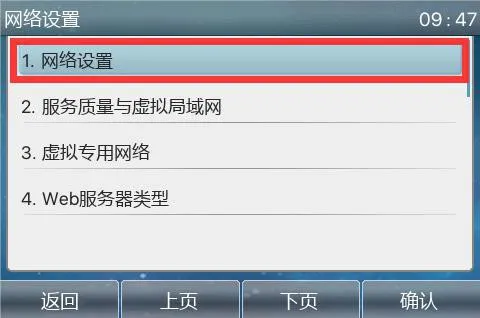

网络设置页面

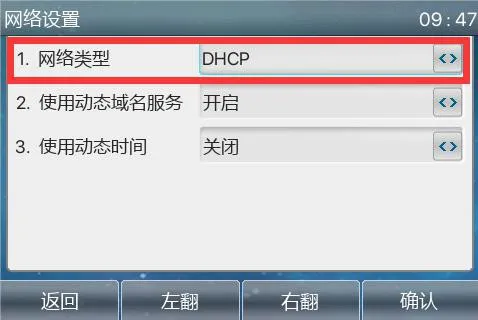

切换为静态网络

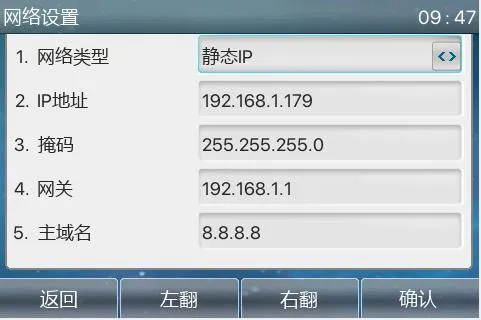

编辑静态IP地址
注意:该方法不适用于H2S、H2U、H3、H5酒店话机型号。

通过电话机网页界面配置静态IP

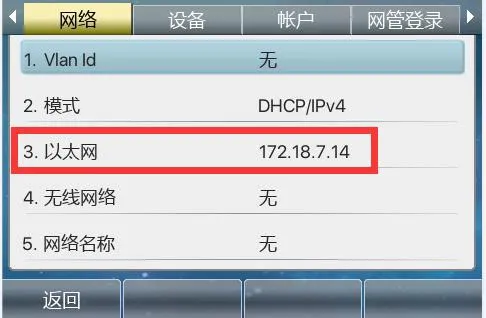

1. 在电话机LCD屏幕点击 菜单 -- 状态,查看电话机当前IP地址。

查看电话机IP地址

2. 登录电话机网页后台。在电脑打开浏览器(推荐谷歌浏览器),在地址栏输入电话机IP。

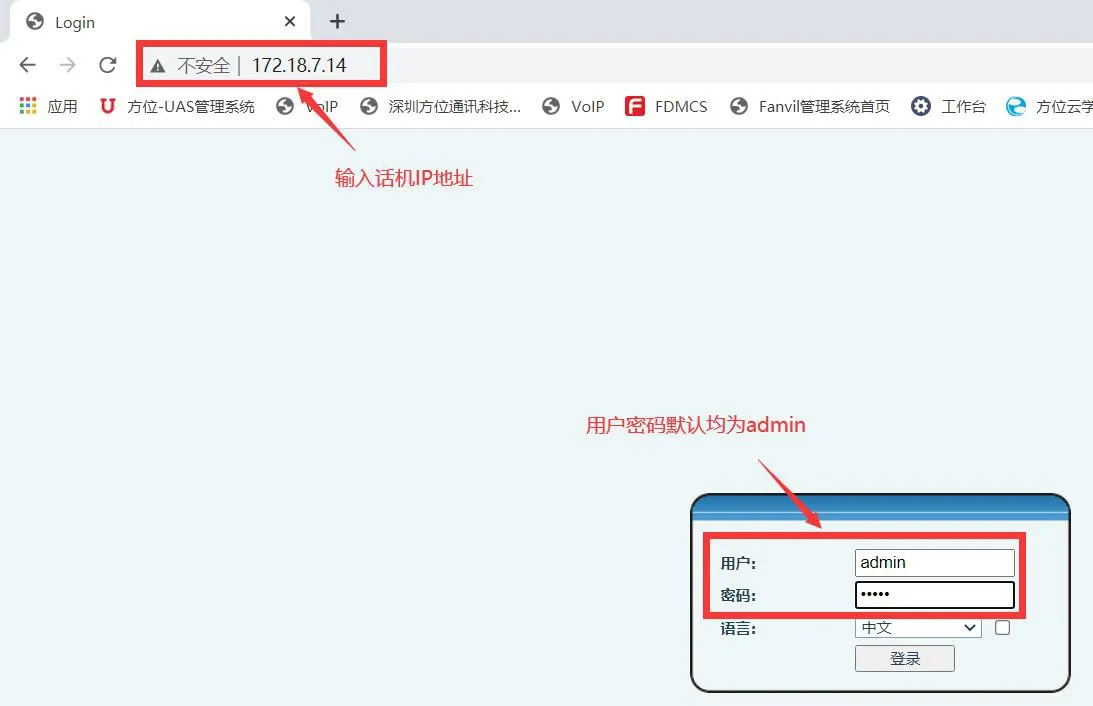

通过IP打开网页界面

3. 进入网络 -- 基础。在设置板块选择静态IP,填写IP参数后点击提交。

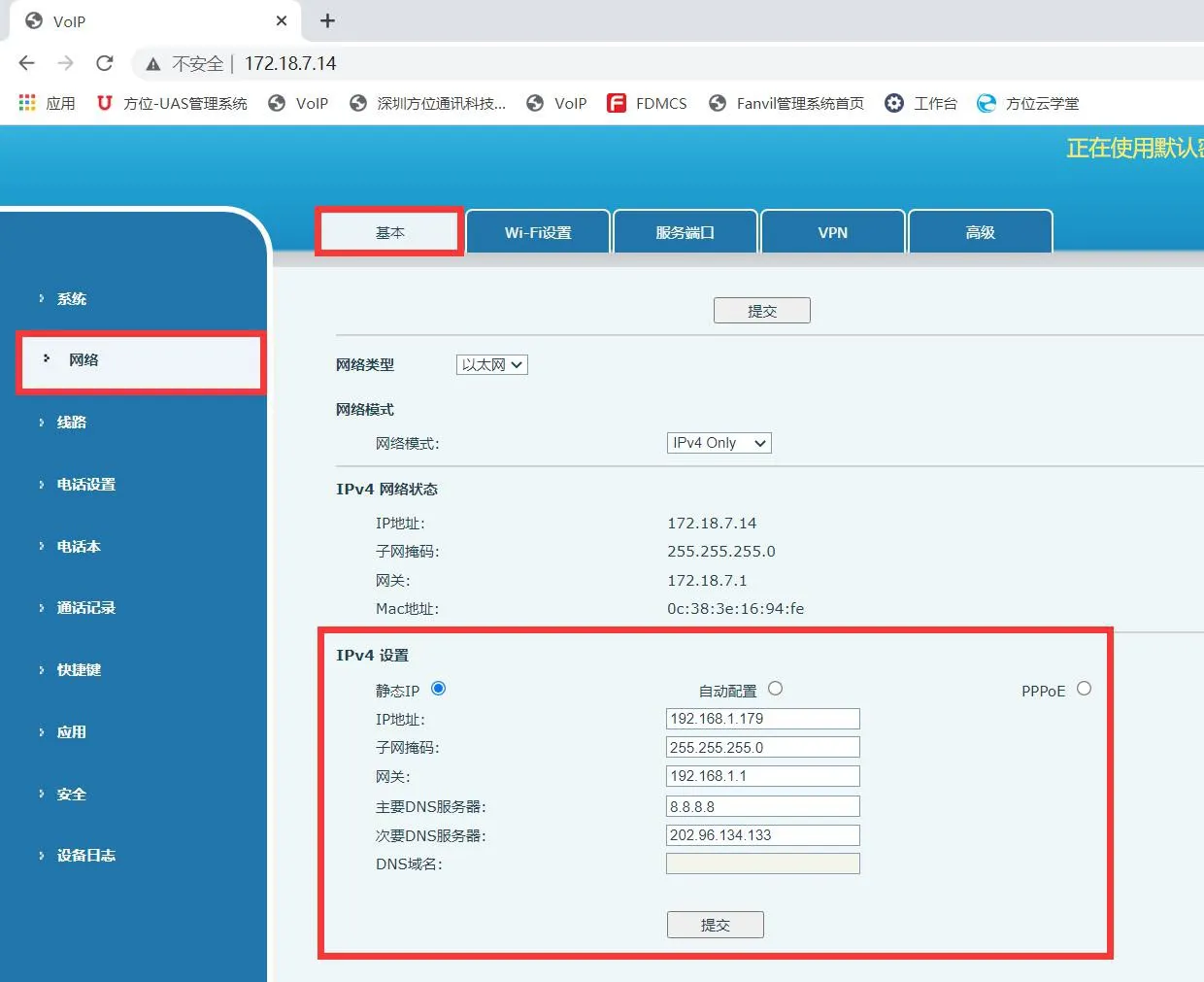

网页界面填写静态IP
