如何将工业IP电话连接到Wi-Fi?

介绍

概述

本指南说明如何将电话连接到无线 Wi-Fi 网络。

目标读者

本文档适用于希望在电话上使用 Wi-Fi 的用户。

适用型号

BX1W/BX3SW/BX3V/BX4U/BX5U/BX6U/BX7/BX7C/BX7A/BX210/BX210i/BH3W/BH5W/BA32i/BF600/BF600S/BV64/BV67

解决方案

目前有两种方式将 Wi-Fi 电话连接到无线网络:一种是通过内置 Wi-Fi 模块,另一种是通过外部 Wi-Fi 适配器。首先,您需要确认电话型号,因为有些型号支持内置 Wi-Fi,而其他型号则需要外部适配器。不同型号使用不同的连接方式。

方法 1:内置 Wi-Fi 模块

2.1.1 将 Android 电话连接到 Wi-Fi
适用型号:BX7A/BV67/BA32i(以下以 BX7A 为例)
点击 “菜单”,然后点击 “设置”,然后点击 “网络和互联网”。将网络优先级更改为 WLAN,点击 “WLAN” 进入 WLAN 页面,开启右上角的 WLAN 开关,选择要连接的 Wi-Fi 网络,输入密码,然后点击 “连接”。

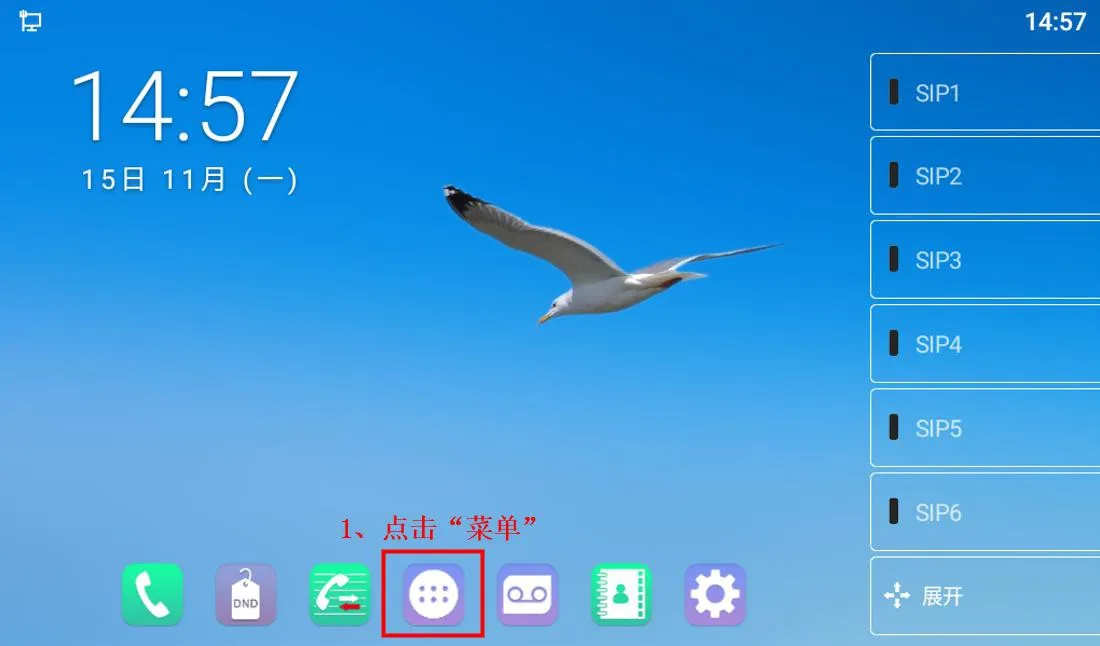

Android 电话 Wi-Fi 连接菜单界面

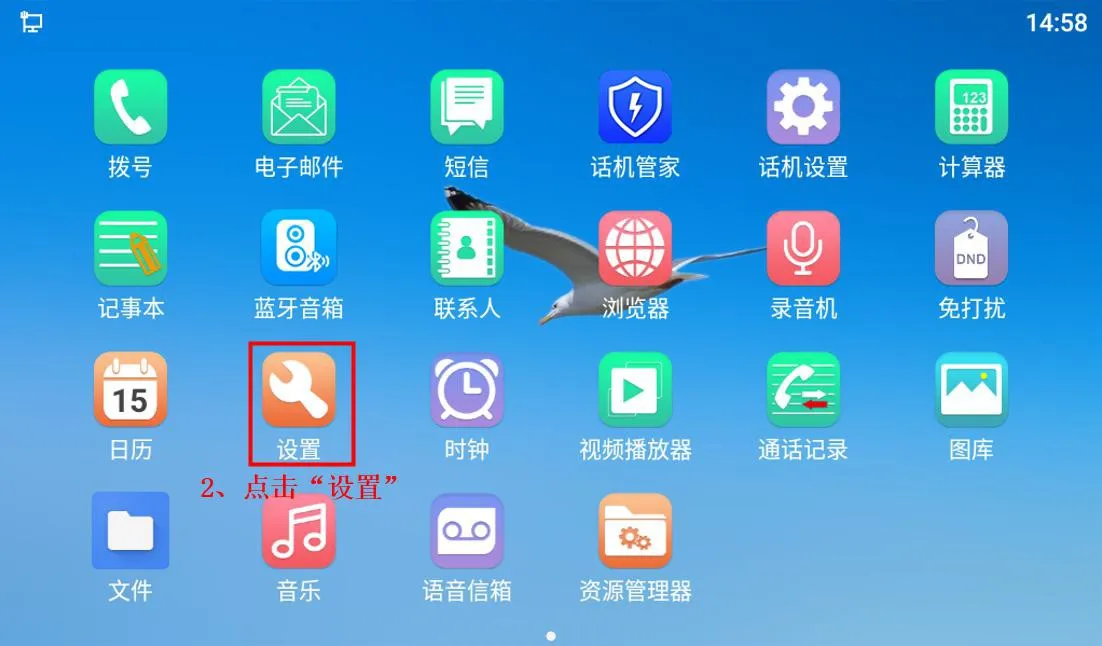

Android 电话 Wi-Fi 连接设置

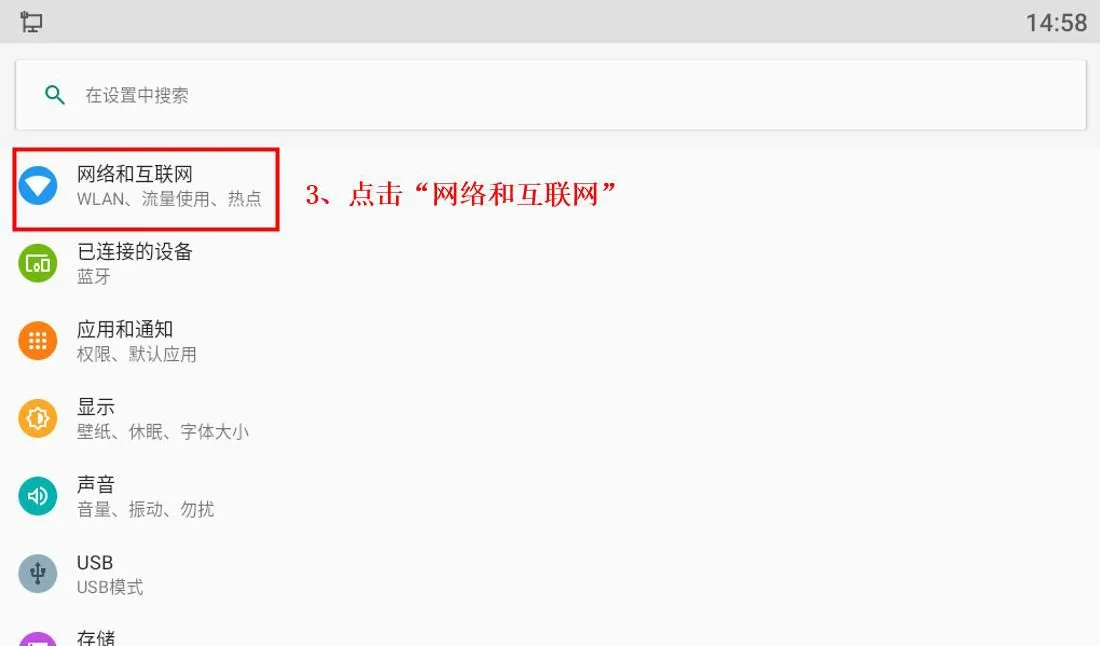

Android 电话 Wi-Fi 网络连接

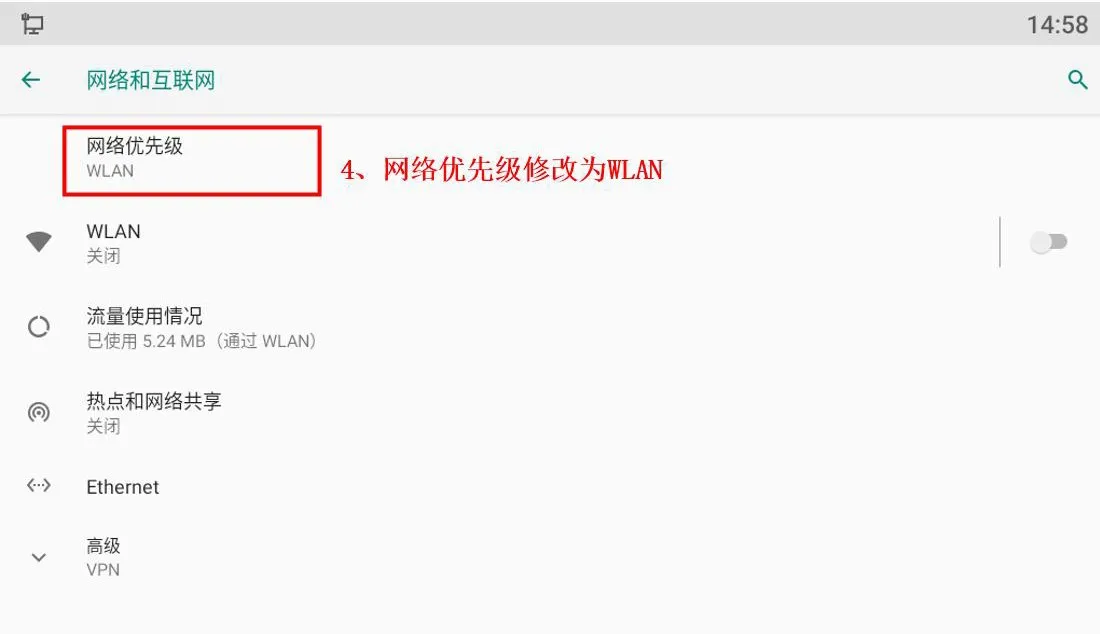

Android 电话 Wi-Fi 网络优先级设为 WLAN

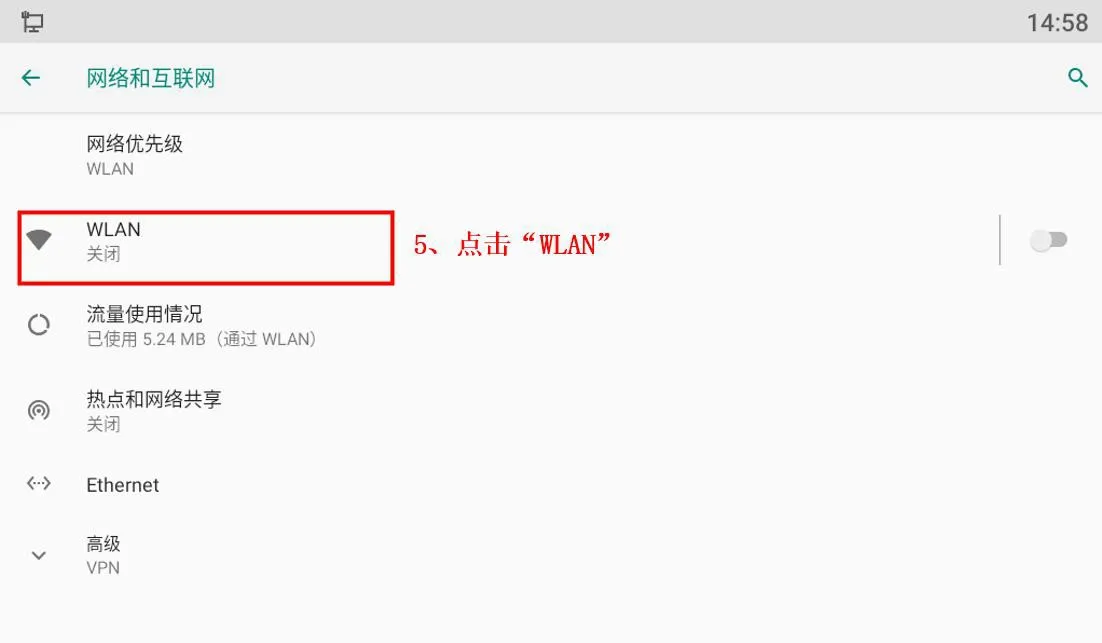

Android 电话点击 WLAN
Android 电话开启 WLAN 开关

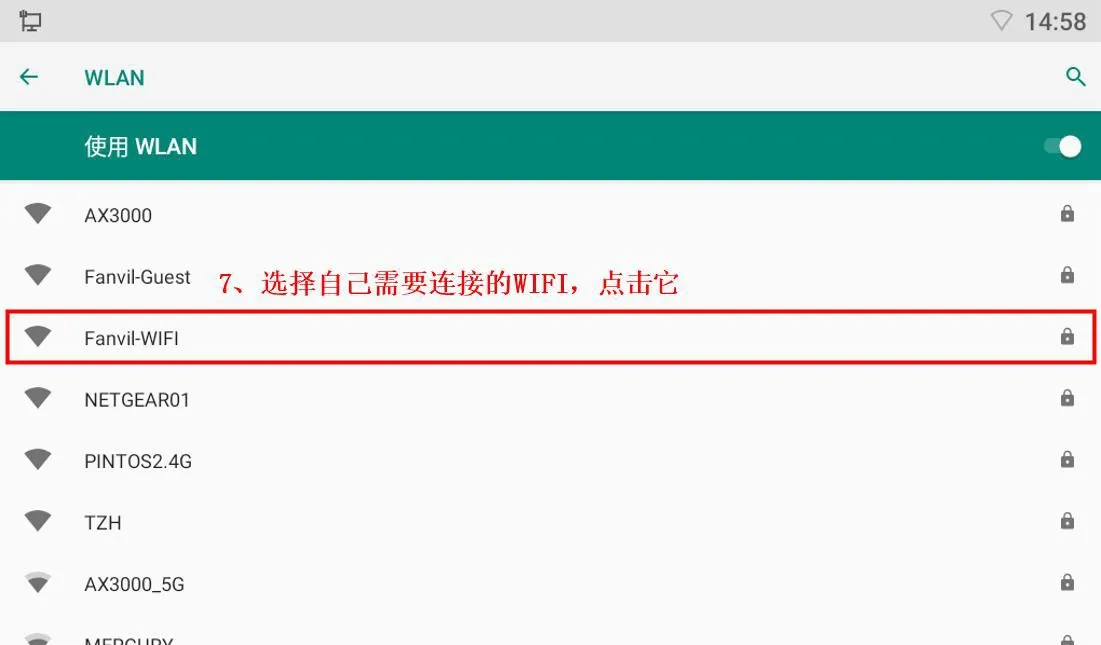

Android 电话连接到 Wi-Fi

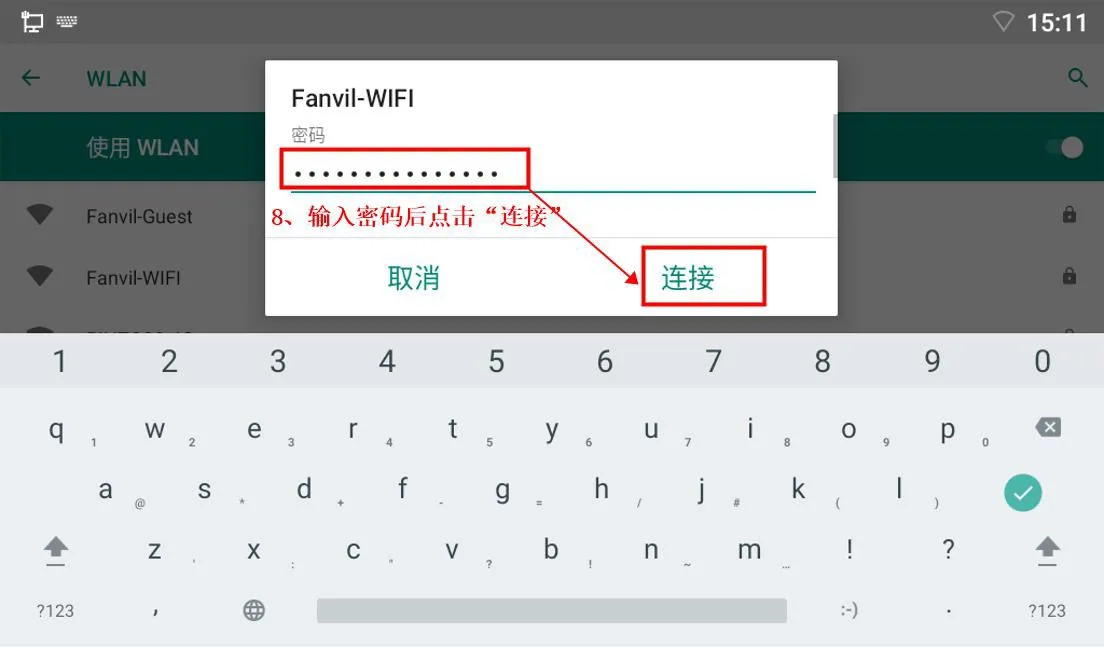

Android 电话输入 Wi-Fi 密码
2.1.2 将非 Android 电话连接到 Wi-Fi
适用型号:BX1W/BX3SW/BX3V(以下以 BX3V 为例)
点击 “菜单”---“设置”---“无线网络” 进入无线网络设置页面。开启无线网络并点击 “确认”。选择可用的网络并点击 “扫描”。扫描完成后,点击 “输入”,选择要连接的 Wi-Fi 网络,点击 “连接”,输入密码,然后点击 “确认”。

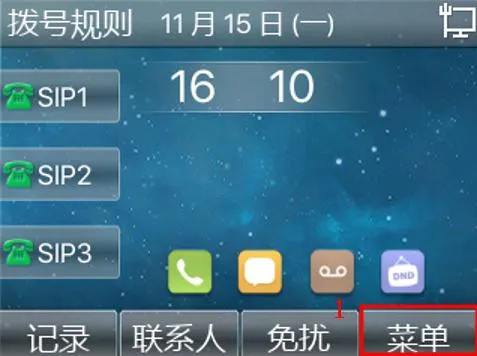

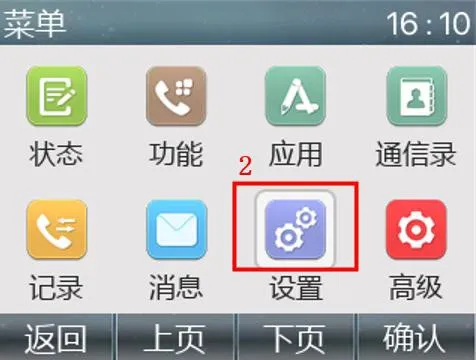

非 Android 电话 Wi-Fi 连接非 Android 电话 Wi-Fi 菜单界面

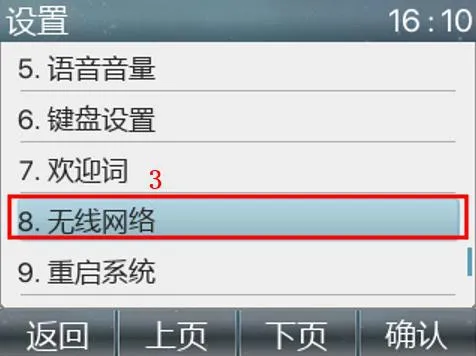

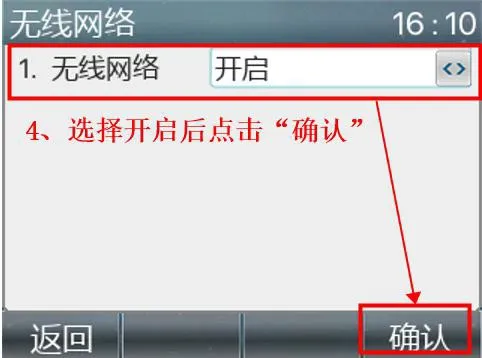

非 Android 电话点击无线网络非 Android 电话启用无线网络

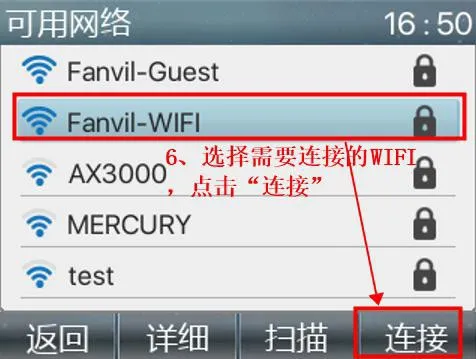

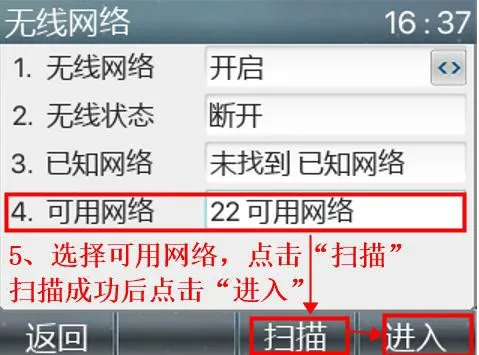

非 Android 电话搜索可用网络非 Android 电话连接到 Wi-Fi

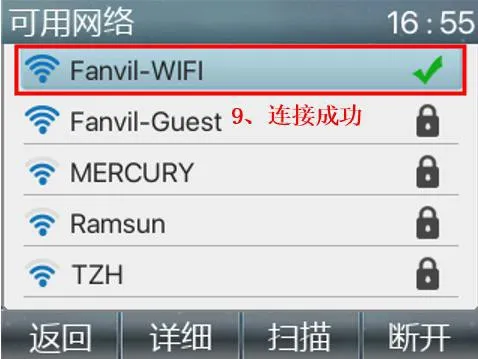

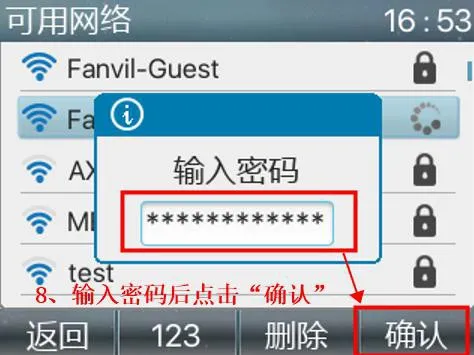

非 Android 电话输入密码非 Android 电话 Wi-Fi 连接成功
适用型号:BH3W/BH5W
1. BH3W 没有屏幕,因此必须通过网页界面设置 Wi-Fi。请参考以下步骤:
将电话连接到网线,然后长按 # 键以收听 IP 地址播报。获取 IP 地址后,将其输入浏览器以登录电话网页界面。

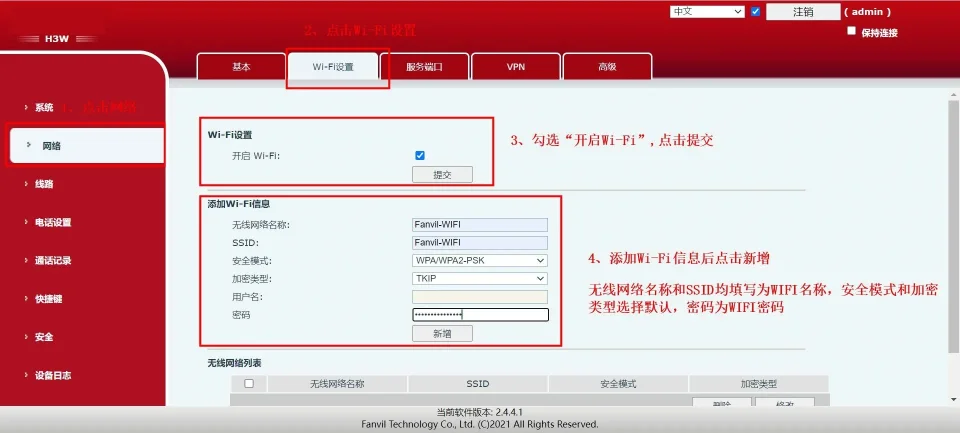

电话网页界面 Wi-Fi 设置

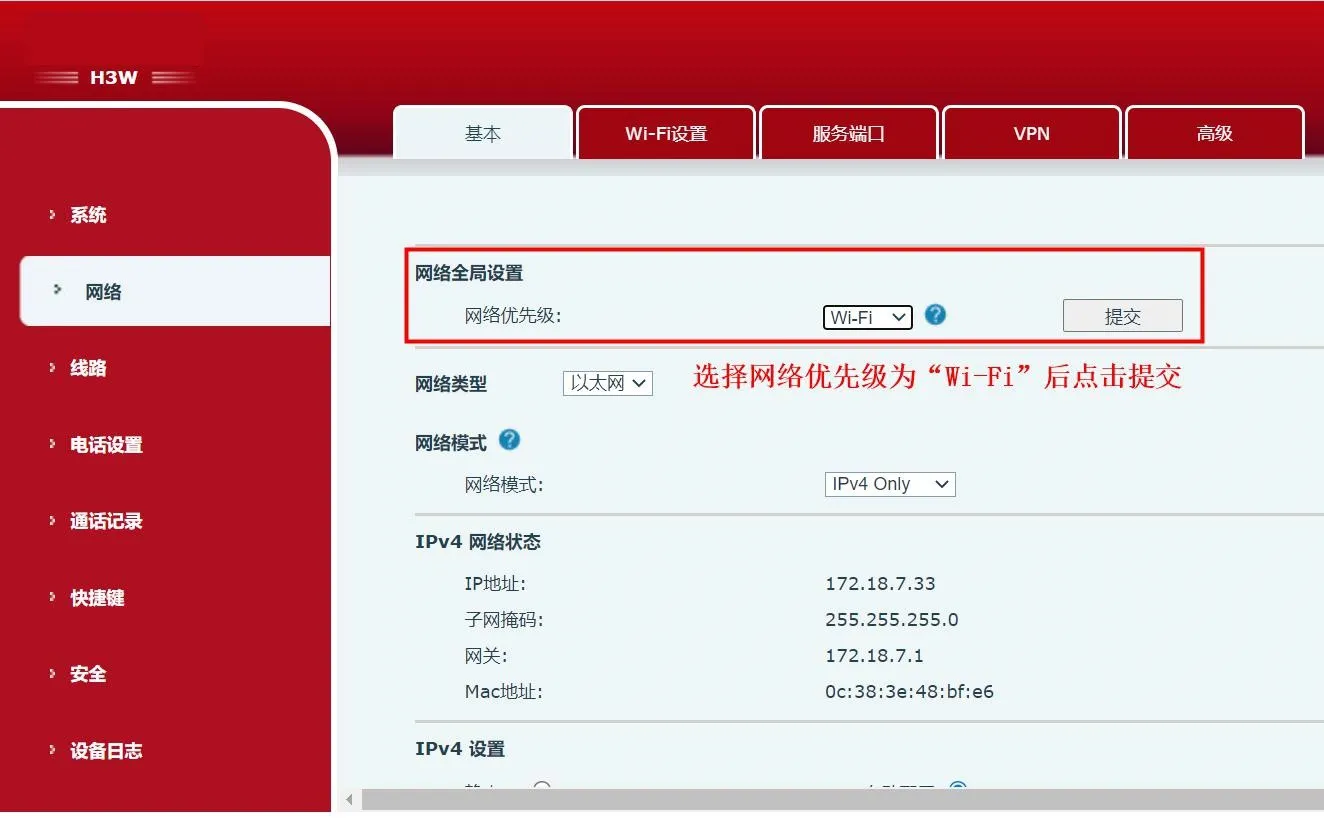

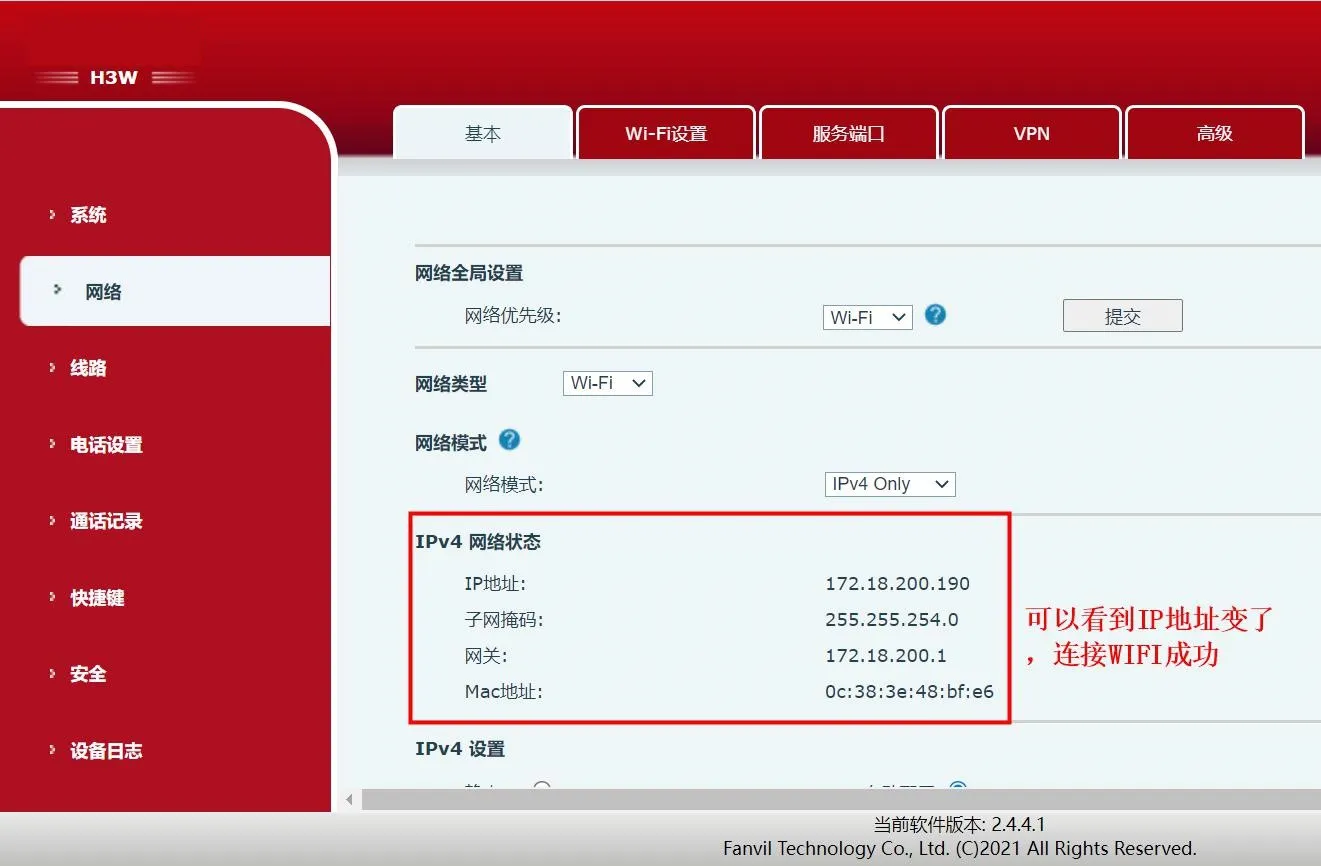

电话网页界面网络设置页面
电话网页界面网络设置页面
2. BH5W 有屏幕。请参考以下步骤。
在 BH5W 的待机模式下,按下 #*107 以进入菜单页面。

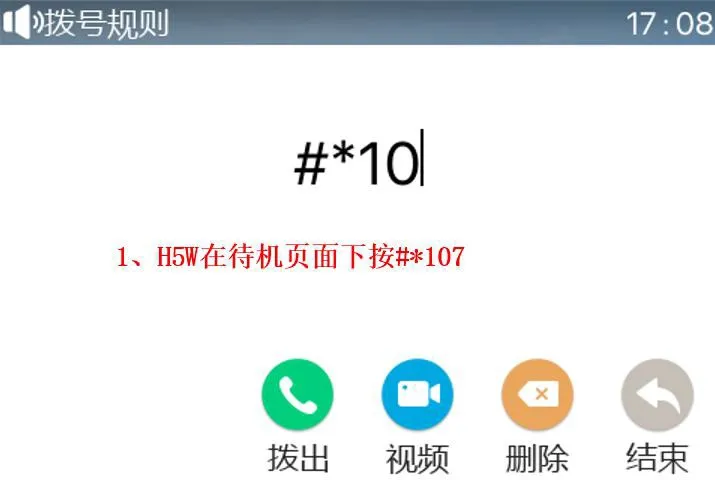

电话按下 #*107 进入菜单页面

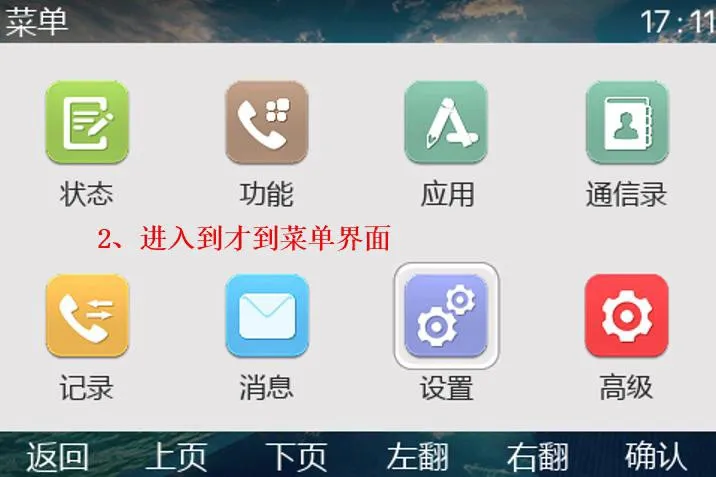

电话菜单界面
其余步骤请参考 X3V 的 Wi-Fi 连接步骤。此处不再重复。

方法 2:外部 Wi-Fi 适配器

适用型号:BX4U/BX5U/BX6U/BX7/BX7C/BX7A/BX210/BX210i 将 Wi-Fi 适配器(无线网卡)插入电话的 USB 端口。

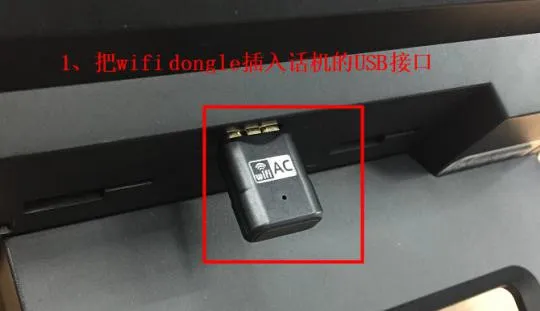

电话 USB 端口
插入适配器后,电话屏幕上会弹出消息:“已添加无线适配器。要扫描网络吗?”。点击 “确认” 进入无线网络设置页面。页面会显示“正在搜索”,表示电话正在扫描可用网络。扫描完成后,选择一个可用网络并点击 “确认”。然后选择要连接的 Wi-Fi 网络,点击 “连接”,输入密码,然后点击 “确认”。

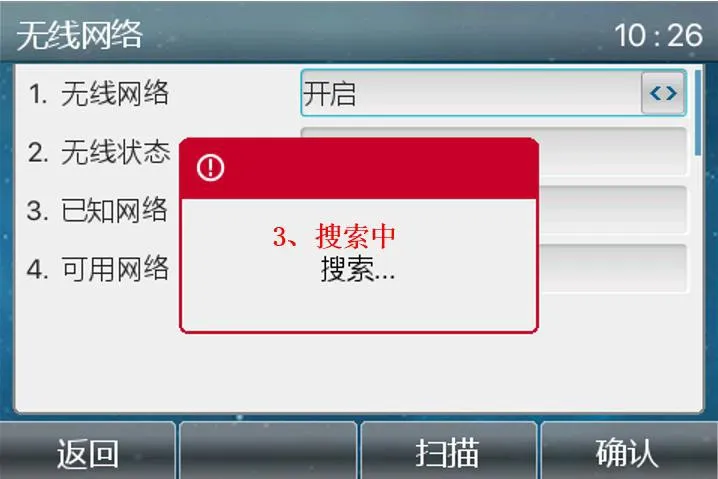

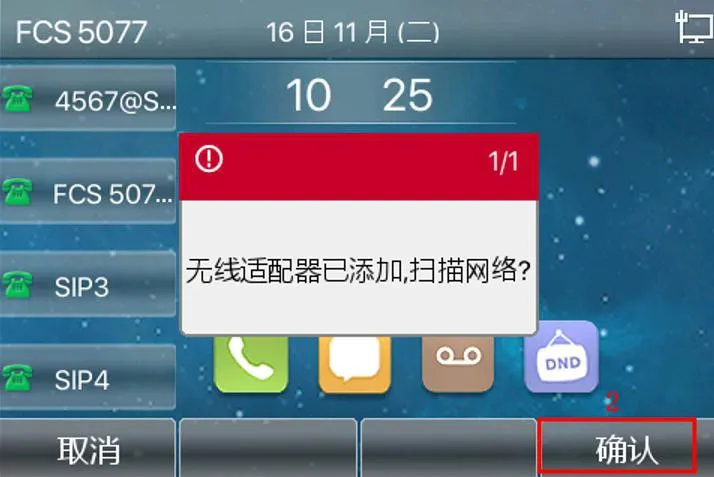

电话在界面中添加无线适配器电话在界面中启用无线网络

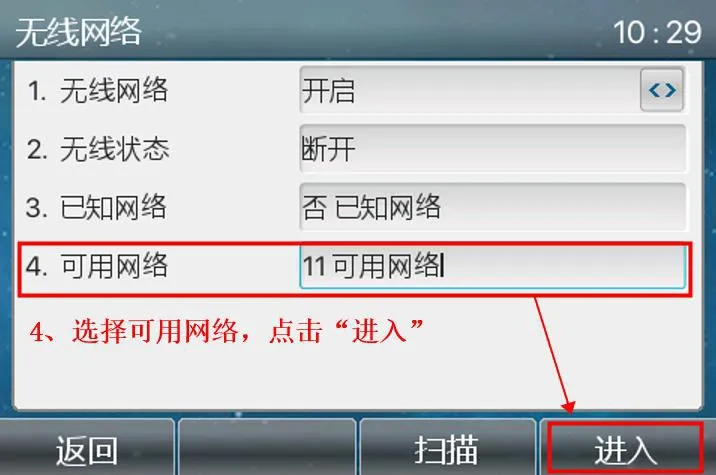

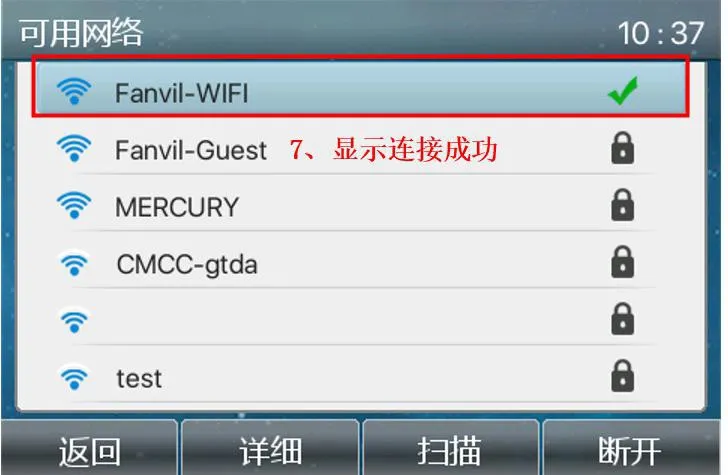

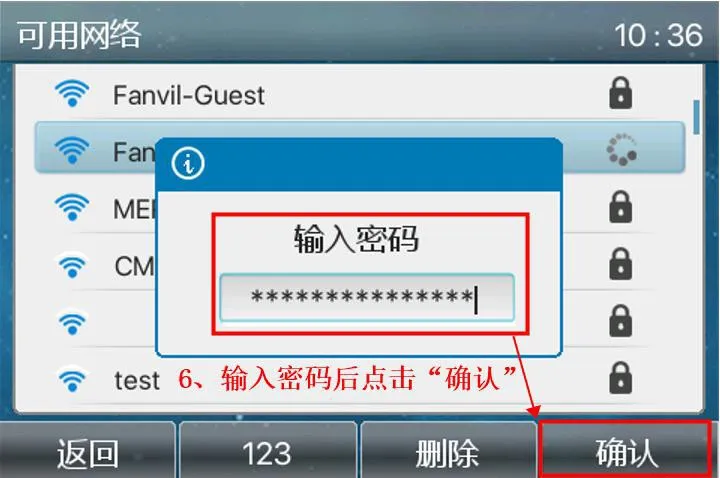

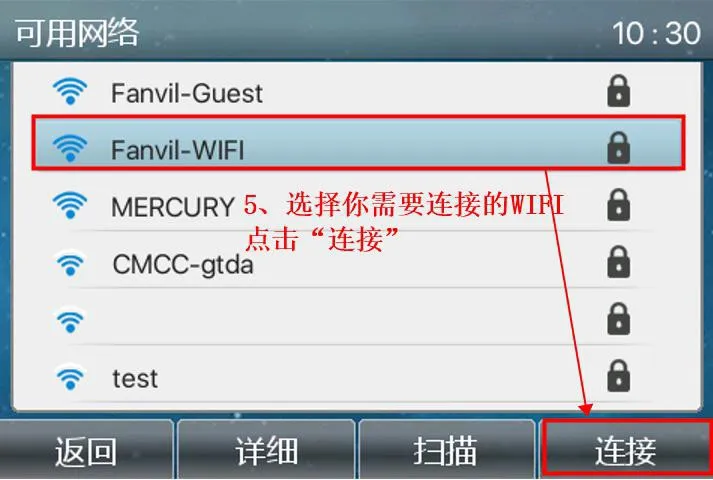

电话在界面中进入可用网络选择所需的 Wi-Fi 网络输入 Wi-Fi 密码Wi-Fi 连接成功
