本指南介绍了如何通过RTSP协议将SIP权限改造和SIP对讲设备连接到NVR进行视频录制。它涵盖了海康威视NVR集成的支持型号、网络设置和分步配置。
本文介绍如何将SIP门禁设备与SIP对讲设备连接至NVR,主要是为了实现工业终端产品的视频录像。NVR客户端向工业视频终端发送RTSP指令,终端将内置摄像头的视频流回传给客户端,以进行实时视频观看与录像。
NVR全称为网络视频录像机,是网络视频监控系统的存储与转发组件。NVR与视频编码器或IP摄像机协同工作,完成视频的录像、存储与转发功能。
BHP-SOS16, BHP-SOS18, BHP-SOS30, BHP-SOS30V, BHP-SOS33V, BK-DAB-PA2, BHP-SOS10, BHP-SOS10V, BHP-SOS11, BHP-SOS11V, BHP-SOS16V.
1.3.1 设备准备
准备一台内置摄像头的工业视频终端,以及一台海康威视或大华NVR。

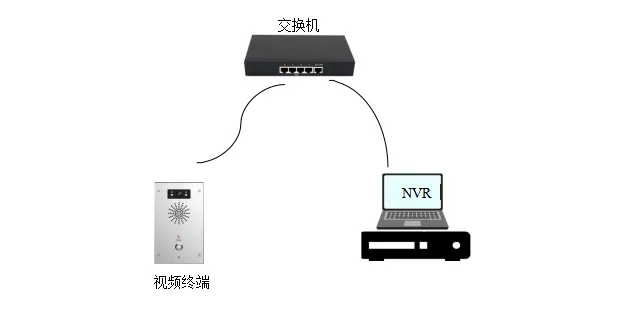

1.3.2 网络连接图

注意:以上网络图仅供局域网(LAN)内使用。若需部署于公用网络,请联系我们的技术支持团队寻求协助。
① 通过浏览器登录NVR网页界面。
② 前往配置 - 通道管理。

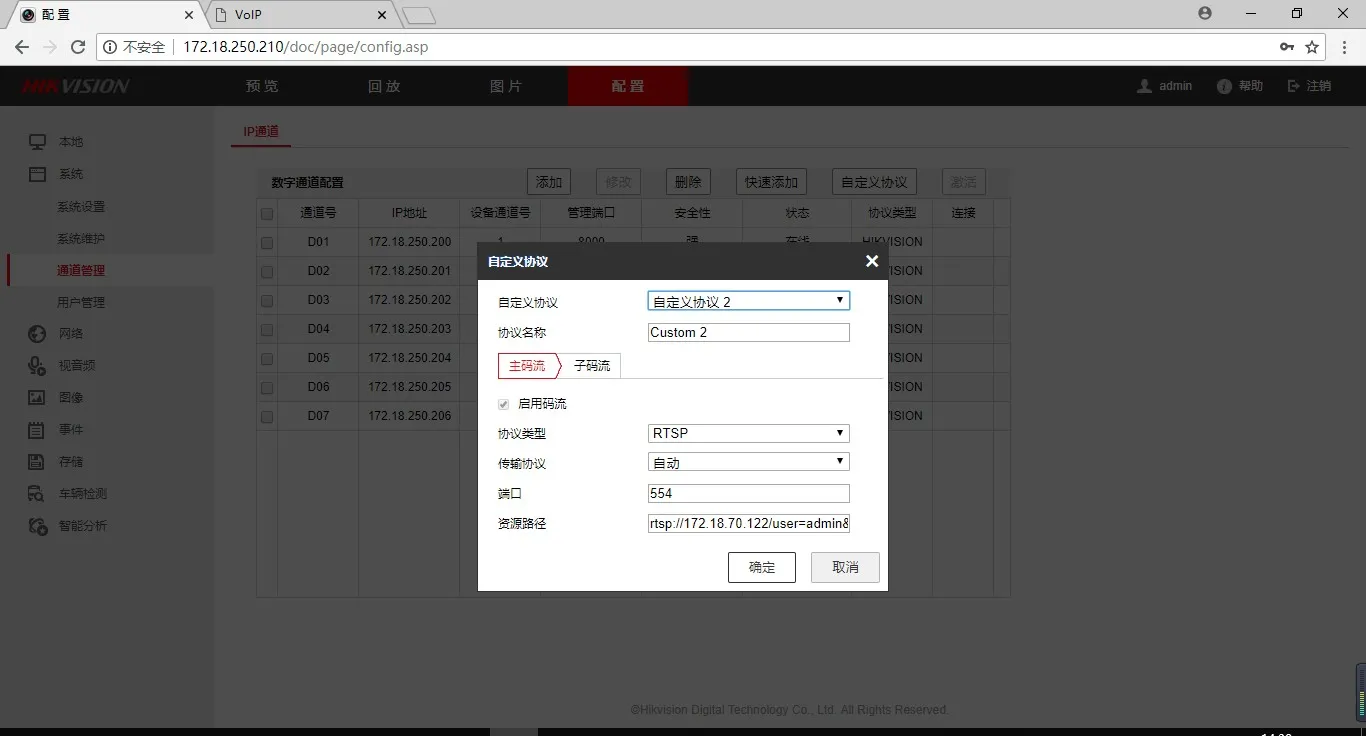

③ 配置自定义协议:
协议类型:RTSP
传输协议:自动
端口:554
资源路径:从门禁设置 - 视频设置 - RTSP信息复制主码流URL
注意:菜单路径因设备型号而异。对于对讲设备,请在对讲设置 - 视频设置(摄像头设置)中查找RTSP URL。


④ IP通道配置 - 添加:
IP通道地址:SIP门禁设备 / SIP对讲设备的IP地址
协议类型:您创建的自定义协议名称
管理端口:使用自定义协议中的默认值
用户名:自定义用户名
密码:自定义密码
确认密码:与上述密码相同
传输协议:默认

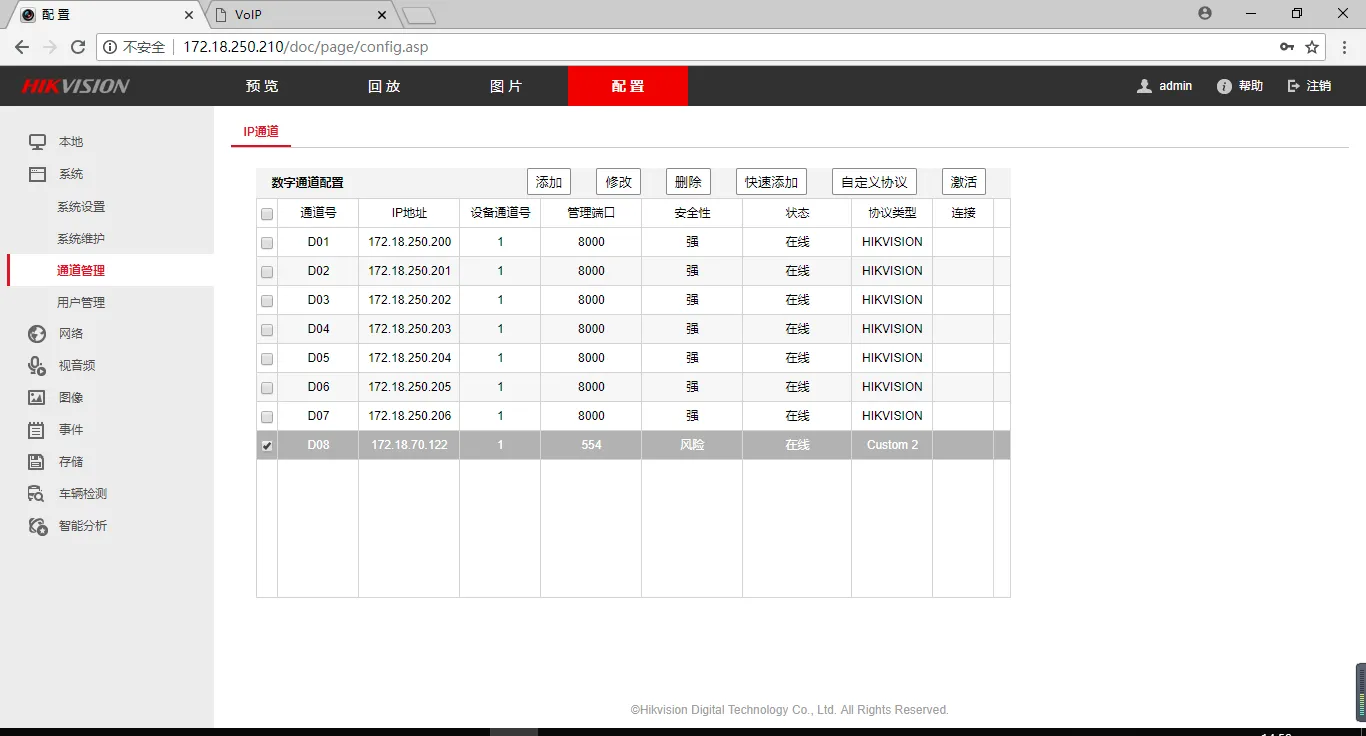

⑤ 添加成功,状态显示为在线。
⑥ 可在预览页面观看对应通道的视频。
