了解如何从LCD屏幕或Web界面在BX4U手机上注册SIP帐户,包括所需设置、登录步骤以及如何确认成功注册状态。
话机必须注册SIP账号,才可正常拨打及接听来电。
支持设备:全系列IP话机机型。
支持固件:对应机型的全部固件版本。
本文档适用于需要在话机上完成SIP账号注册的操作人员。

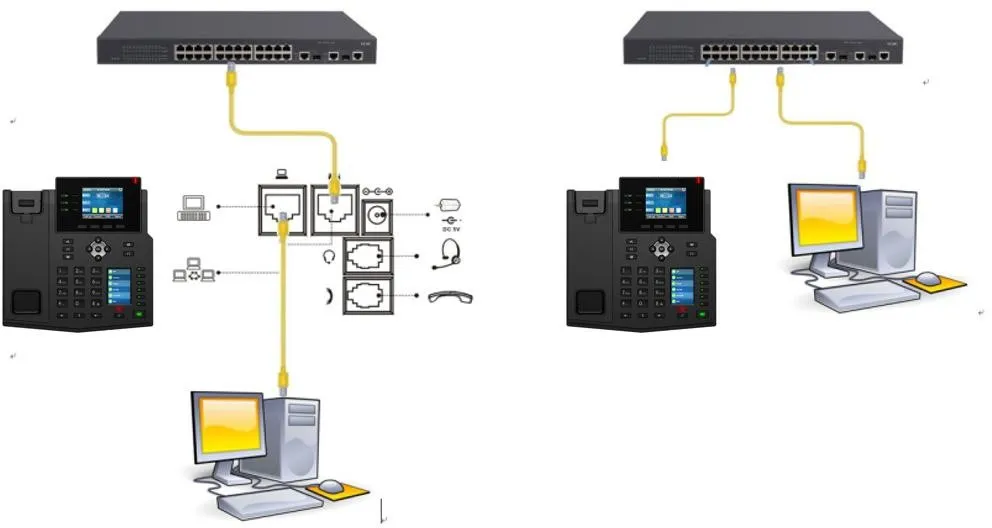

① 一台BX4U话机接入交换机,并自动获取IP地址。
② 一台配置电脑接入同一台交换机,确保电脑与话机网络互通正常。

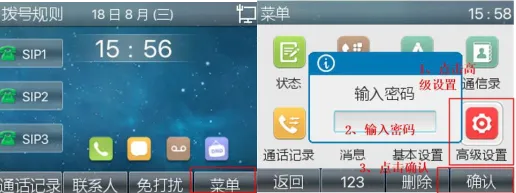

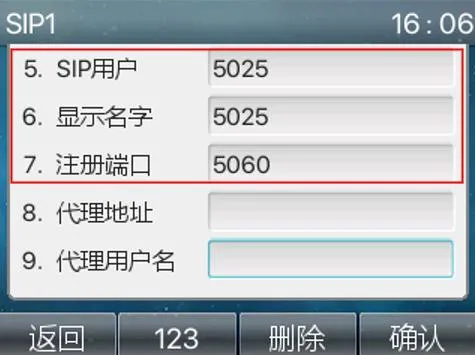

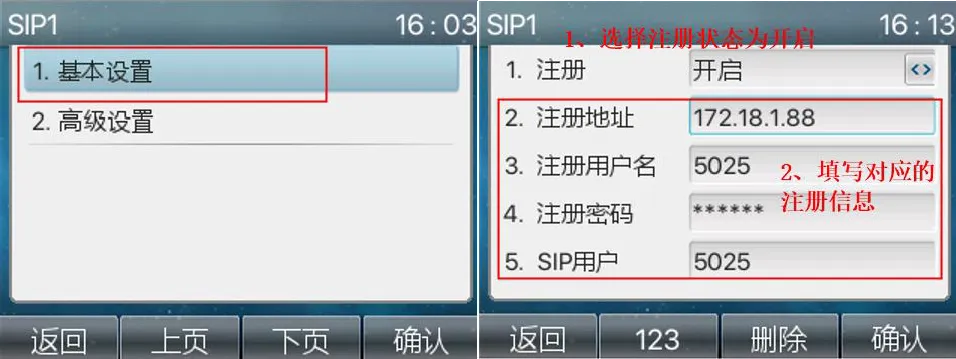

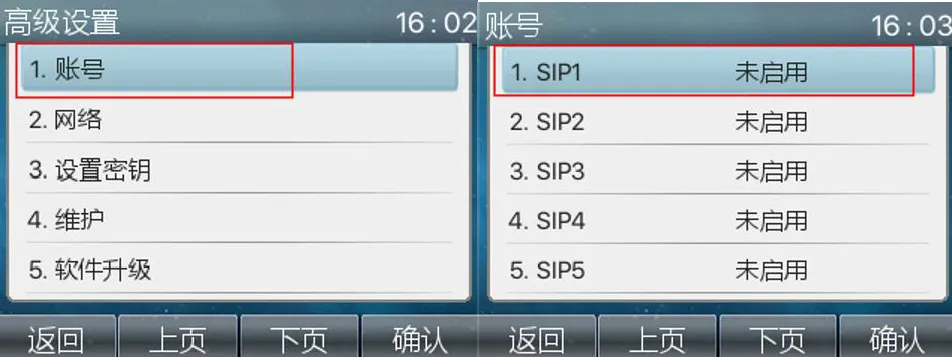

1. 在话机屏幕依次进入 菜单 -- 高级设置(默认密码:123)-- 账号 -- SIP1 -- 基础设置。依次填写服务器地址、服务器端口、SIP用户名、认证用户名、认证密码及显示名称,参考下图图1至图7。

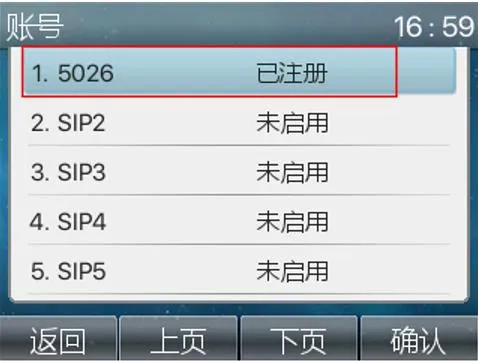

2. 查看注册状态。进入 菜单 -- 高级设置(默认密码:123)-- 账号,确认线路状态显示为已注册。

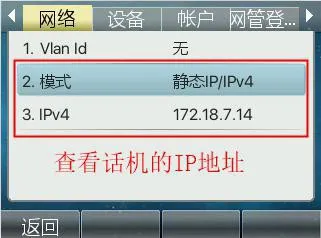

1. 查看话机IP地址。在话机屏幕进入 菜单 — 设备状态,查看本机当前IP地址。

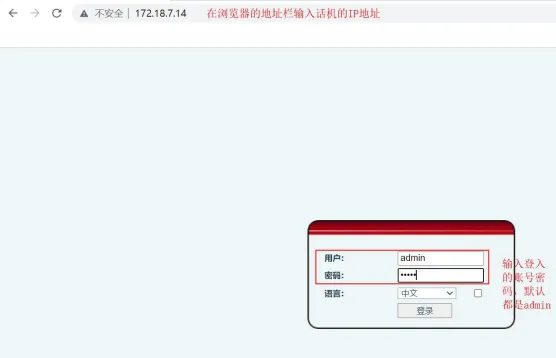

2. 登录话机网页界面。在电脑浏览器地址栏输入话机IP地址,进入管理后台。

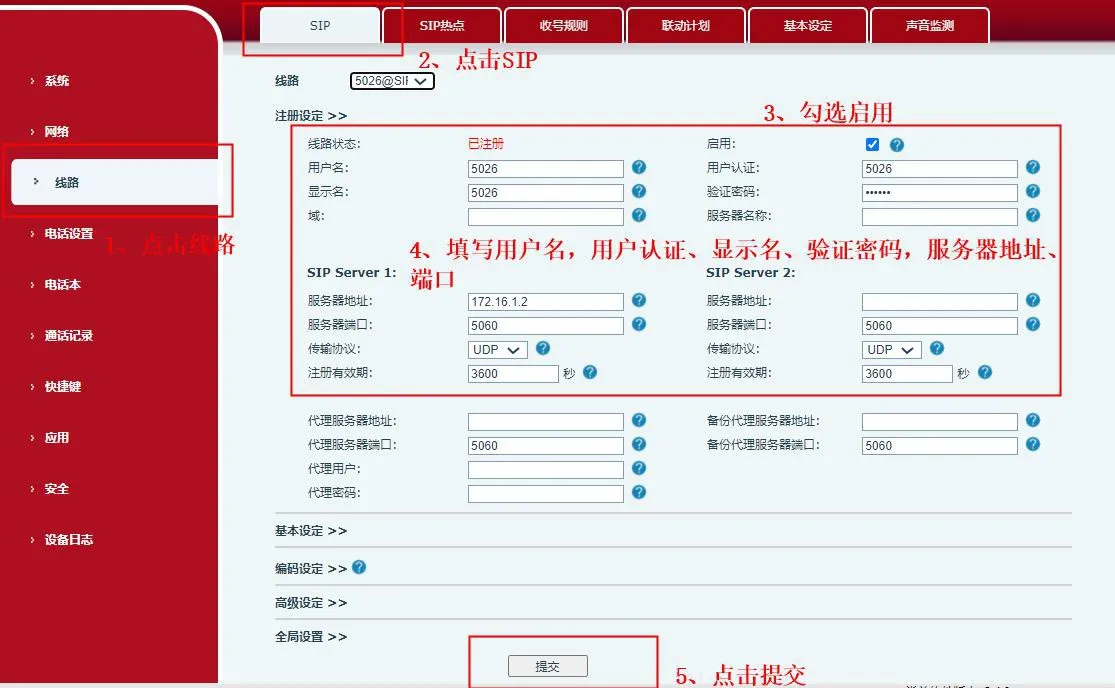

3. 网页端依次进入 线路 -- SIP -- 基础设置。填写SIP账号、密码、端口、服务器地址等必填参数,启用线路后点击提交保存。

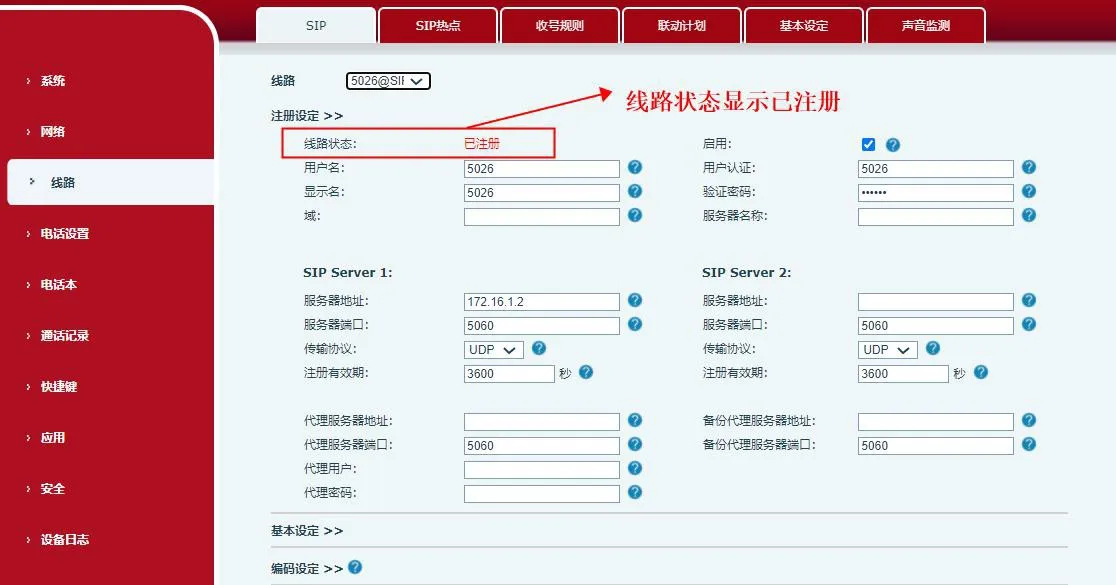

4. 核验注册状态。在线路页面确认线路状态为已注册,注册成功后,话机即可正常拨打与接听电话。
