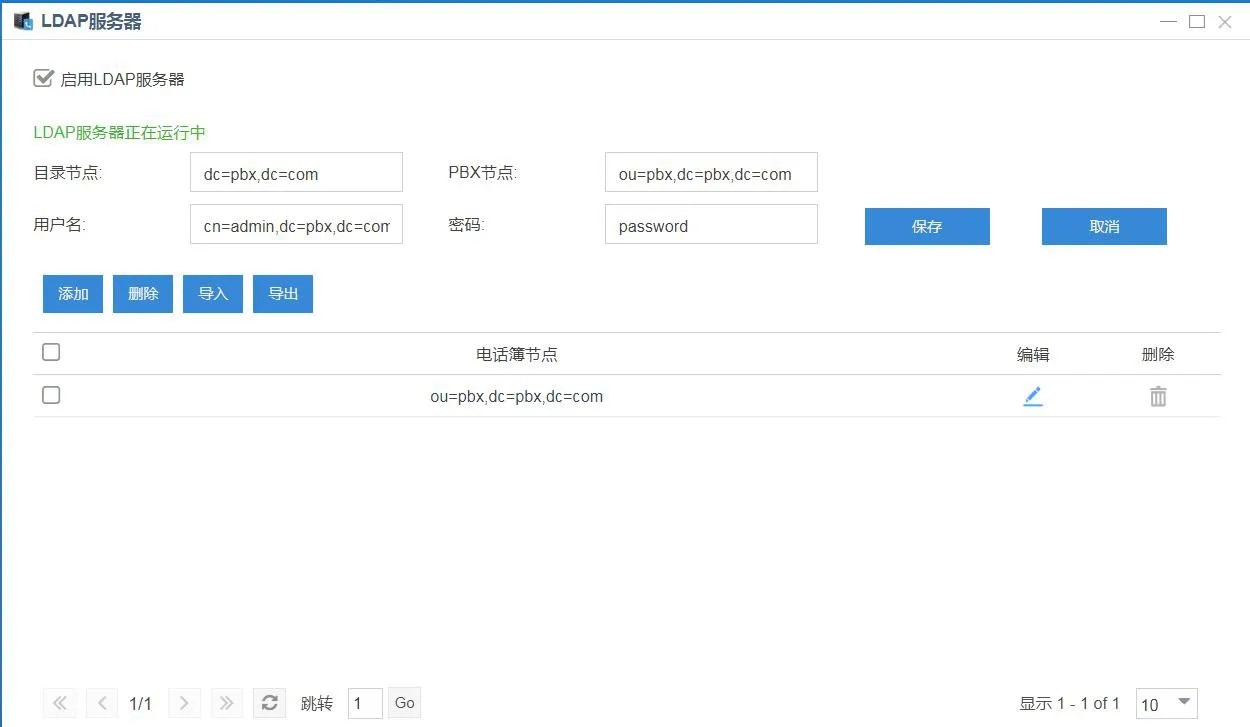

PrerequisitesConfigureLDAP服务器上的目录条目登录到LDAP Se





① 最多可配置4组LDAP目录。
② 支持全域目录访问。
③ 支持通话中号码查询,自动更新来电显示名称。
④ 支持自定义目录属性字段,包含姓名、办公号码、手机号码及其他号码。
⑤ 支持多种认证方式:无认证、简易认证、CRAM摘要认证、摘要MD5认证。

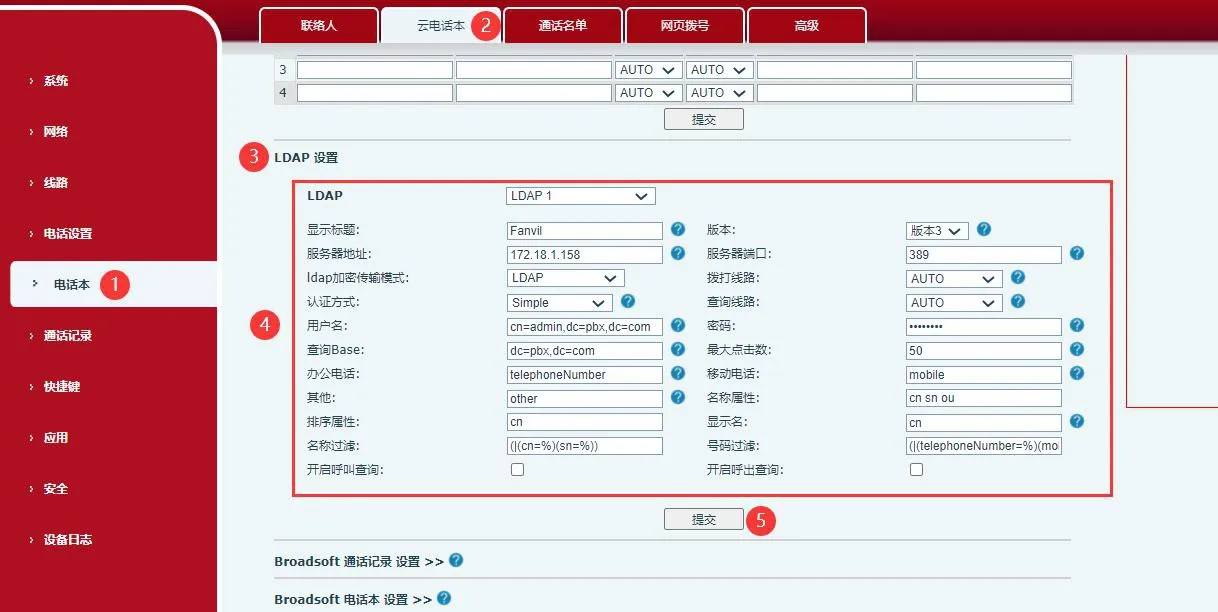

LDAP功能通过网页管理界面配置,配置路径为“电话本”-“云端电话本”-“LDAP设置”。各项配置说明如下:
① 选择需要配置的LDAP目录组别。
② 设置屏幕显示的LDAP目录名称。
③ 选择LDAP服务器版本,默认使用3.0版本。
④ 填写服务器域名/IP地址及端口,默认端口为389。
⑤ 选择认证方式:无认证、简易认证、摘要MD5、CRAM-MD5。
⑥ 指定LDAP目录拨号所使用的SIP线路。
⑦ 填写访问LDAP服务器的账号密码,无认证模式可留空。
⑧ 配置服务器基础搜索路径。
⑨ 开启通话查询功能,通话时自动检索并更新对方名称。
⑩ 自定义联系人属性字段:姓名、固话号码、手机号码、拓展号码。

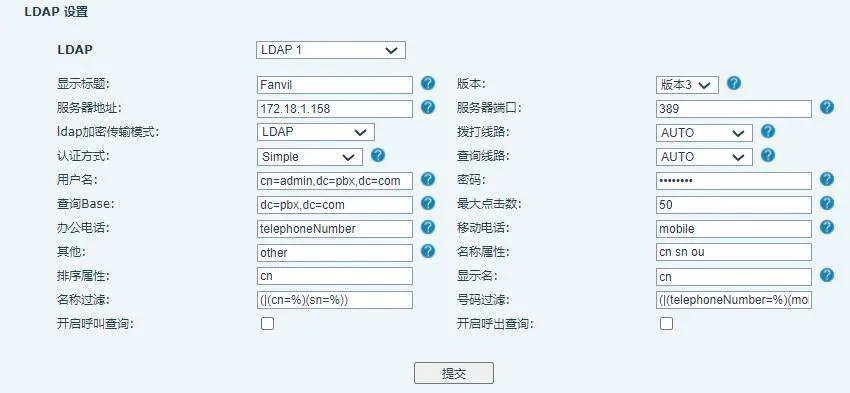

配置完成示例如下图:
填写查询参数并提交保存后,可在话机菜单:通讯录—LDAP,同步下载服务器目录数据。目录联系人将同步显示在话机端,支持一键拨号、发送消息、联系人检索、保存至本地通讯录、加入黑名单等操作。
