工业电话RTSP视频流集成

介绍

概述

中高端视频电话可以访问特定IP摄像头的RTSP URL,从而将实时视频直接显示在电话屏幕上。

目标读者

本文档适用于需要在兼容电话上集成和查看RTSP视频流的用户。

适用型号

适用产品:视频电话。适用固件版本:对应型号支持的所有版本。

所需工具

① 两台BX6U电话连接到交换机,并且能够自动获取IP地址。
② 一台配置PC连接到同一台交换机,并具有对电话的网络访问权限。

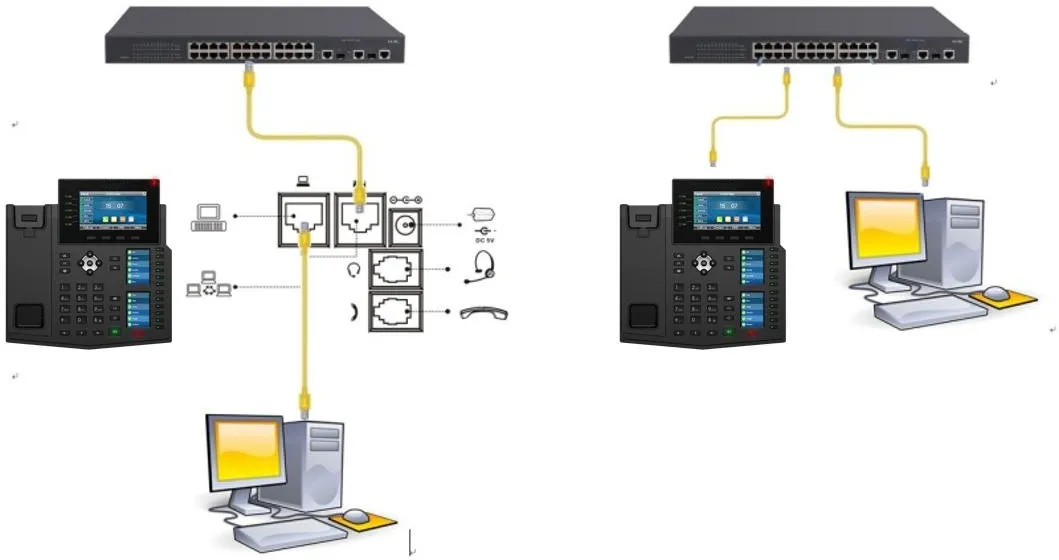

PC与电话连接图

解决方案

本示例使用海康威视IP摄像头。

在摄像头后台中检查对应的流信息

首先,登录摄像头后台并检查可用的流信息。在大多数情况下,主码流和子码流同时启用。根据电话支持的视频分辨率选择适当的流。

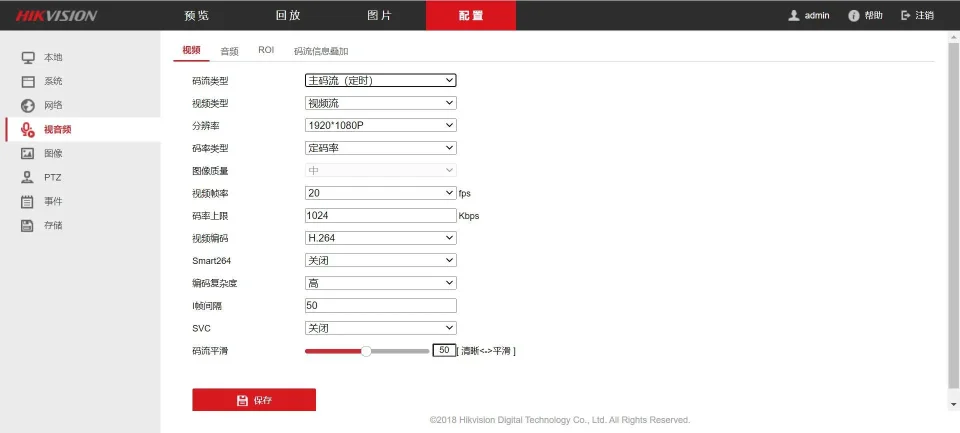

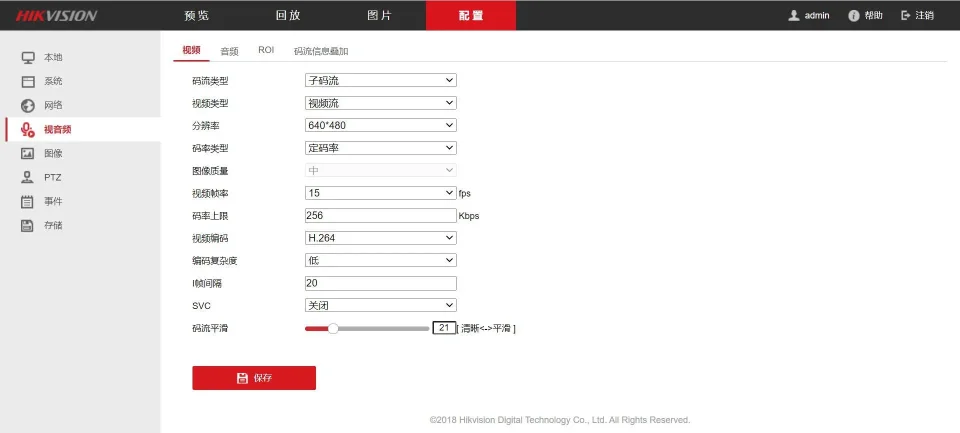

检查摄像头主码流检查摄像头子码流

确认RTSP URL

主码流URL:rtsp://admin:Fangwei123@172.18.8.200/h264/ch1/main/av_stream
子码流URL:rtsp://admin:Fangwei123@172.18.8.200/h264/ch1/sub/av_stream

使用VLC测试RTSP流是否正常工作

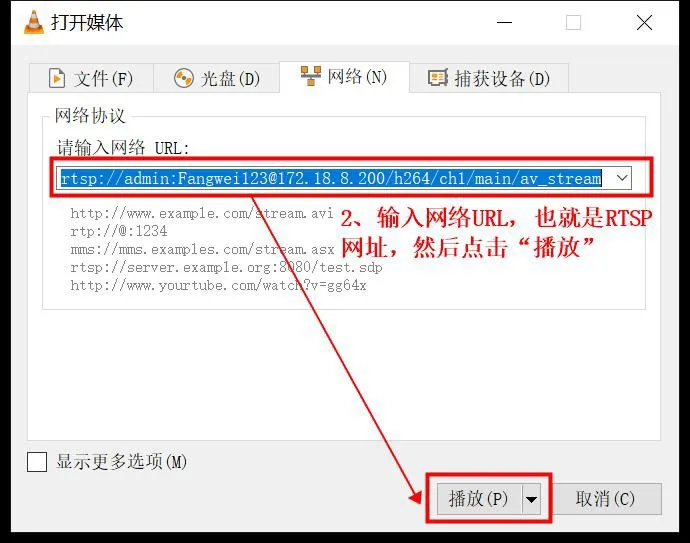

点击“打开网络流”,输入网络URL(即RTSP地址),然后点击“播放”以验证视频流能否正常显示。

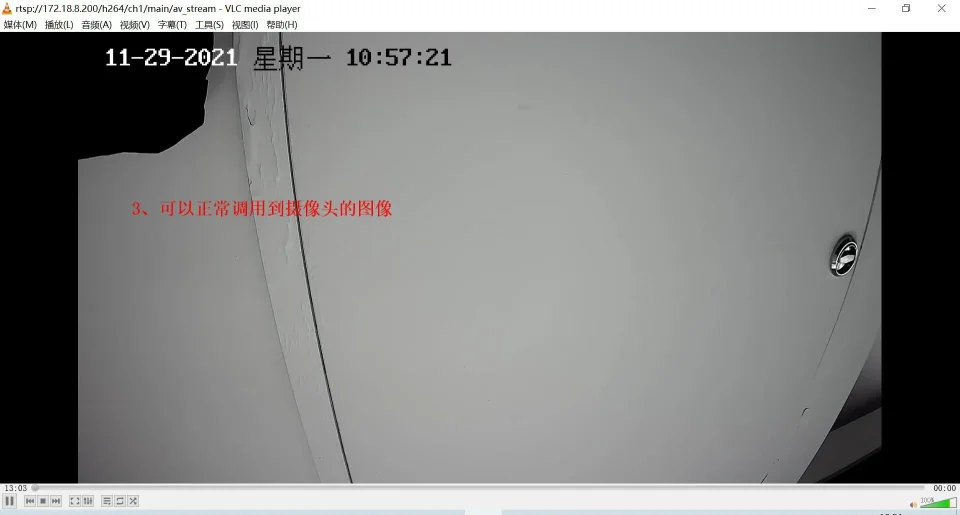

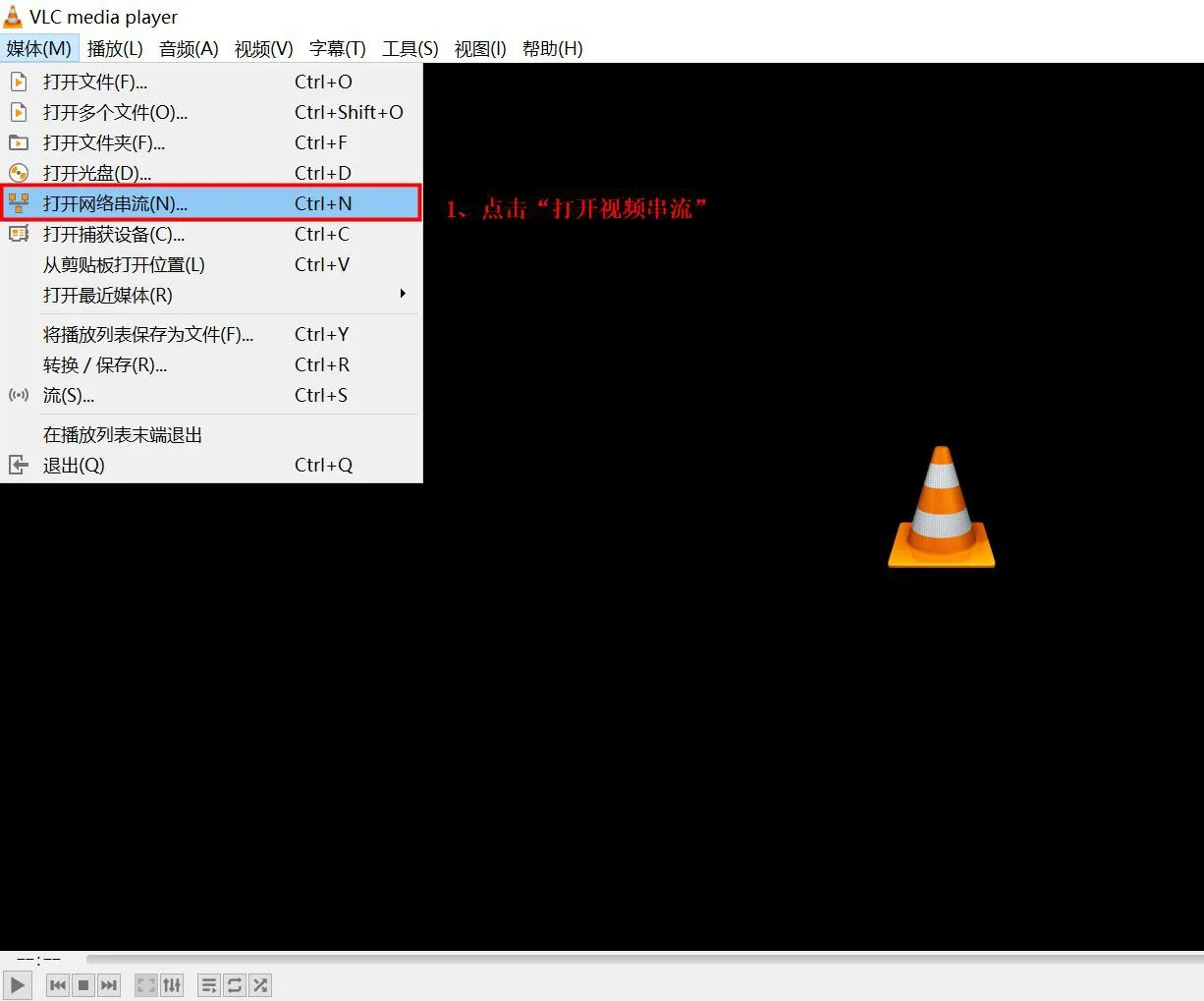

打开网络流播放视频

将电话DSS按键设置为摄像头RTSP URL

配置一个DSS按键,将按键类型设为“URL”。在值字段中输入对应的RTSP URL,然后点击”提交”。之后,直接按下DSS按键即可打开摄像头流。由于URL包含流路径,支持分辨率较高的电话应使用主码流,而支持分辨率较低的电话应使用子码流。选择错误的流可能会影响视频播放性能。
BX6U/BX7/BX7C/BX210/BX210i最高支持480P分辨率,因此应使用IP摄像头的子码流,即:rtsp://admin:Fangwei123@172.18.8.200/h264/ch1/sub/av_stream
对于BX6U,请参考以下步骤:
1. 配置一个DSS按键,将按键类型设为“URL”,在值字段中输入对应的RTSP URL,然后点击” 提交

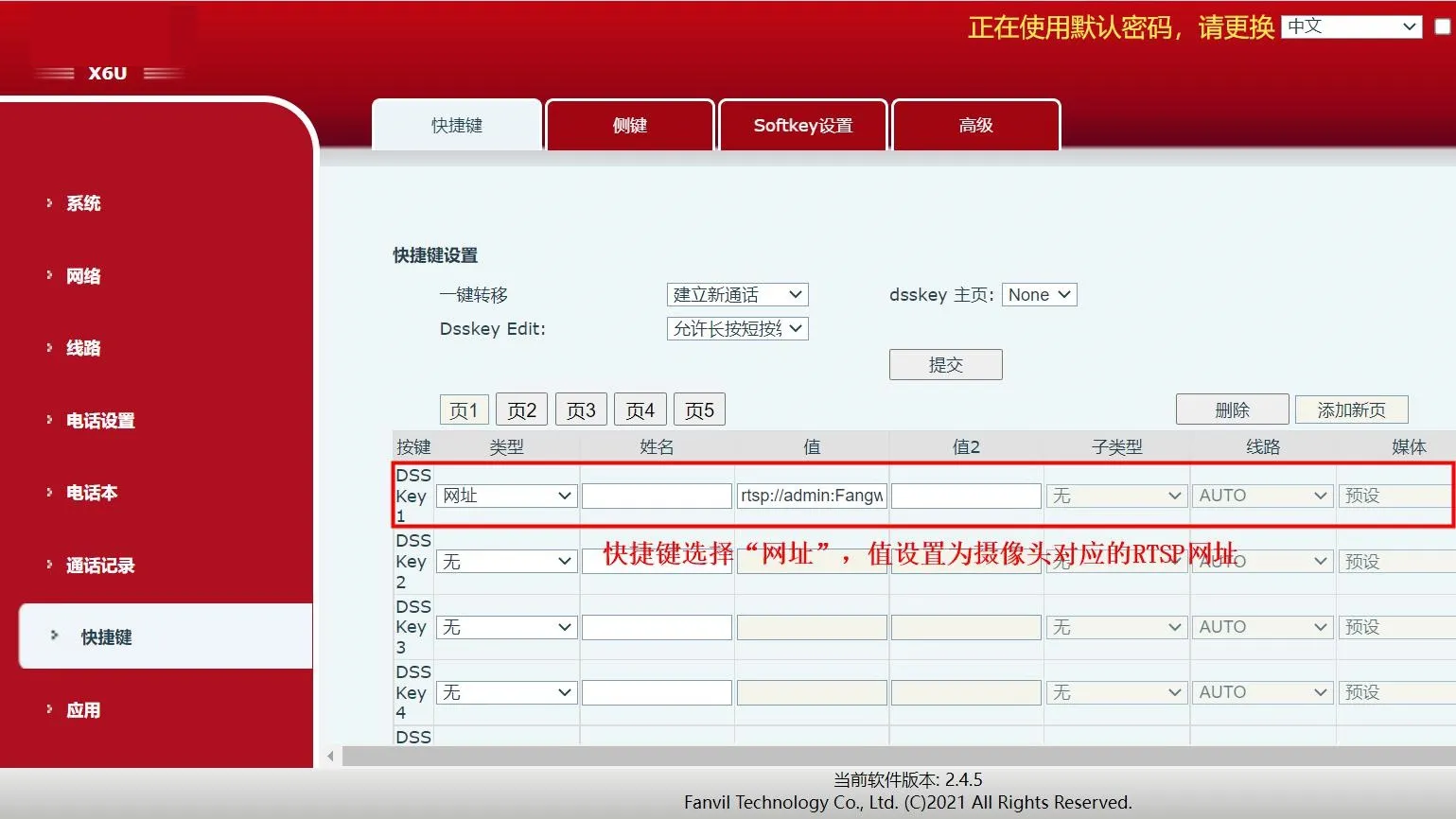

在电话上配置DSS按键

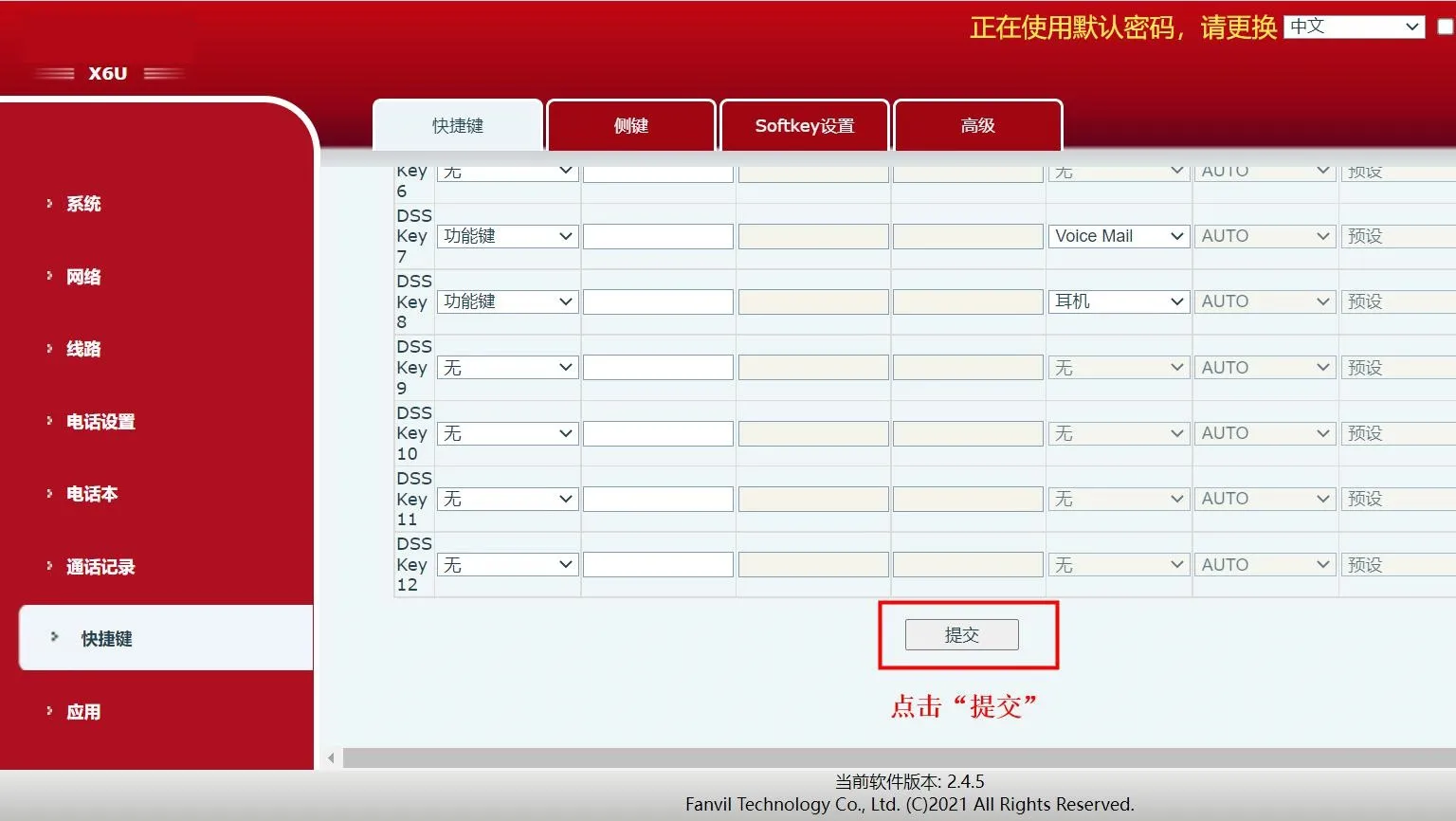

打开摄像头流
2. 按下电话上的DSS按键以打开摄像头流

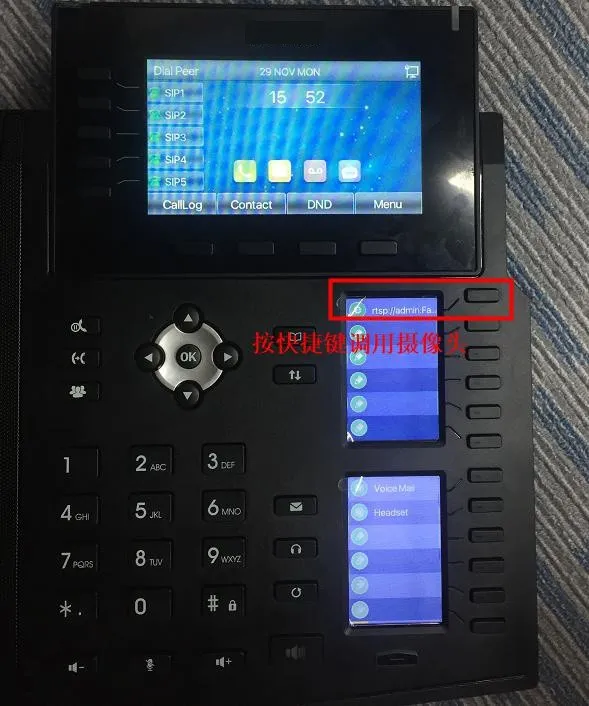

从电话打开摄像头流
3. 摄像头流成功显示在电话上

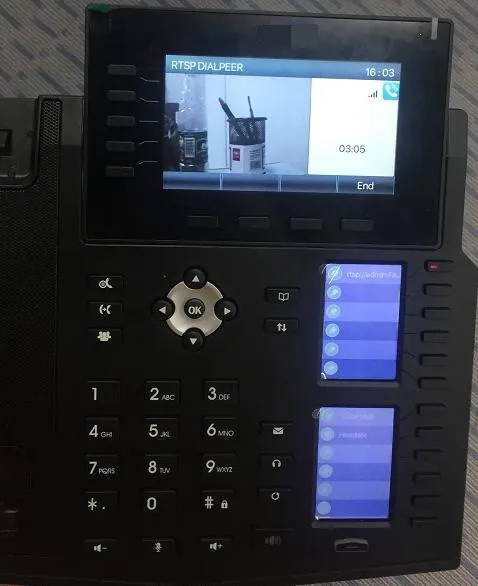

摄像头流成功显示在电话上
BX3V/BX7A/BF600S最高支持1080P分辨率,因此应使用IP摄像头的主码流,即:rtsp://admin:Fangwei123@172.18.8.200/h264/ch1/main/av_stream
对于BX3V,请参考以下步骤:
1. 配置一个DSS按键,将按键类型设为“URL”,在值字段中输入对应的RTSP URL,然后点击” 提交

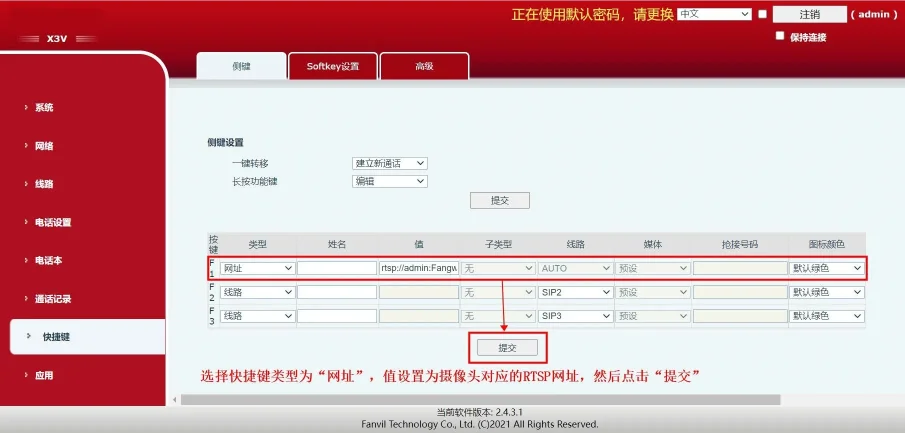

在X3V上配置摄像头DSS按键
2. 按下电话上的DSS按键以打开摄像头流

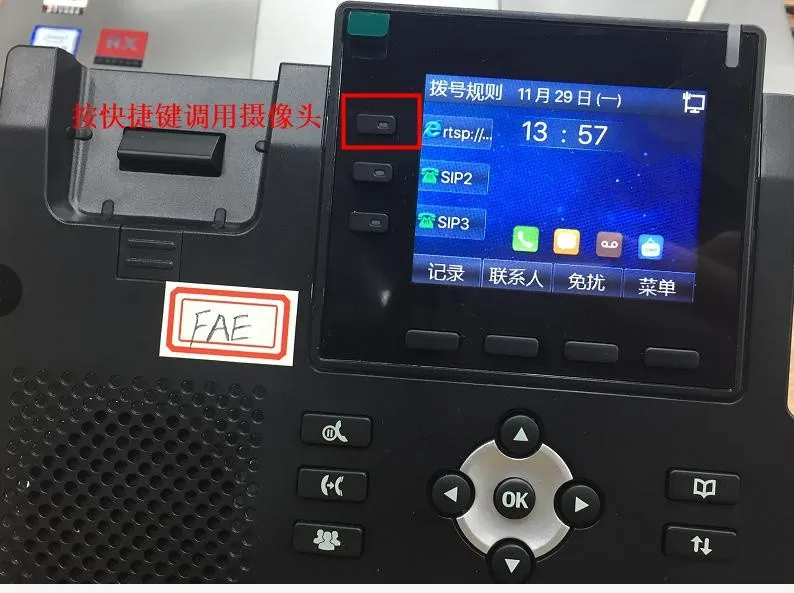

使用X3V DSS按键打开摄像头流
3. 摄像头流成功显示在电话上

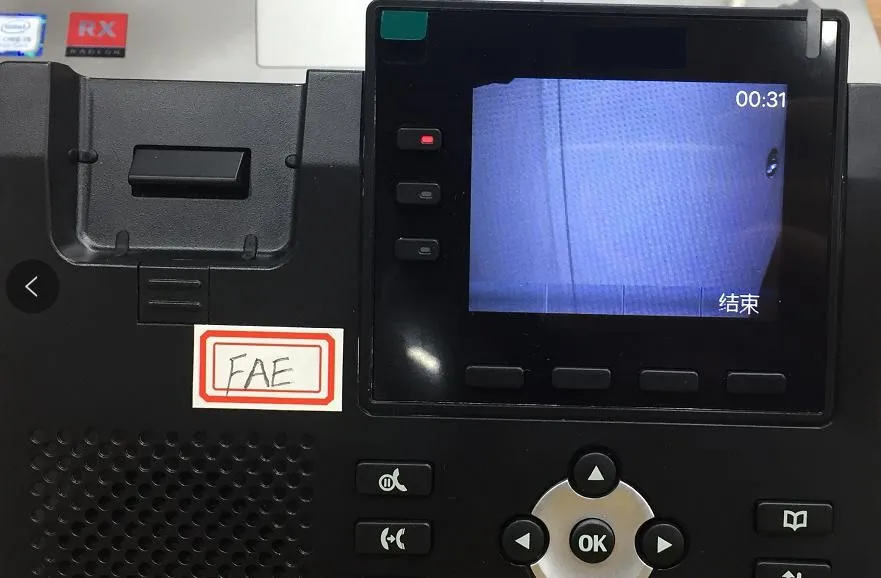

X3V成功显示摄像头流
对于BX7A,请参考以下步骤:
1. 配置一个DSS按键,将按键类型设为“URL”,在值字段中输入对应的RTSP URL,然后点击“提交

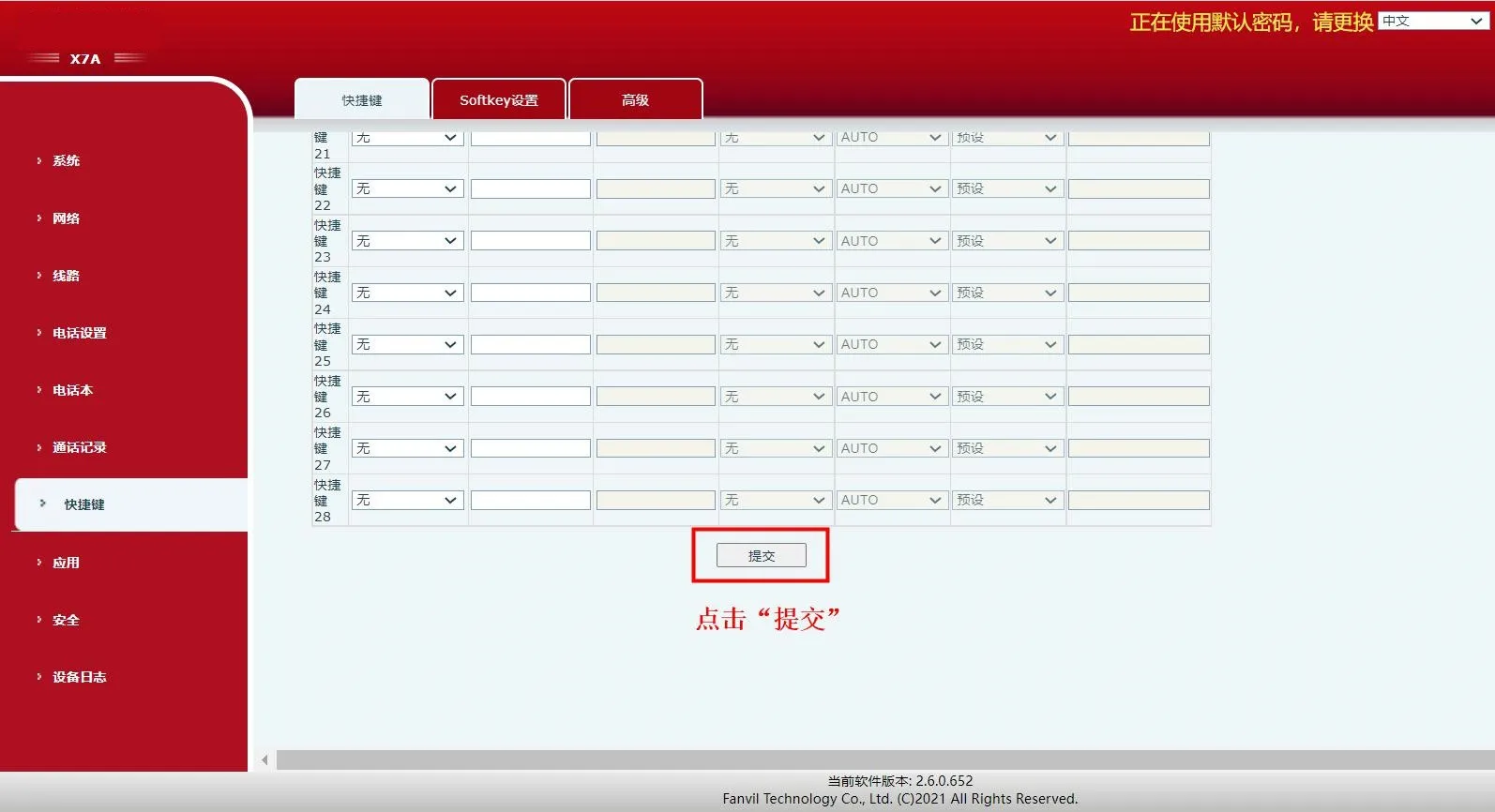

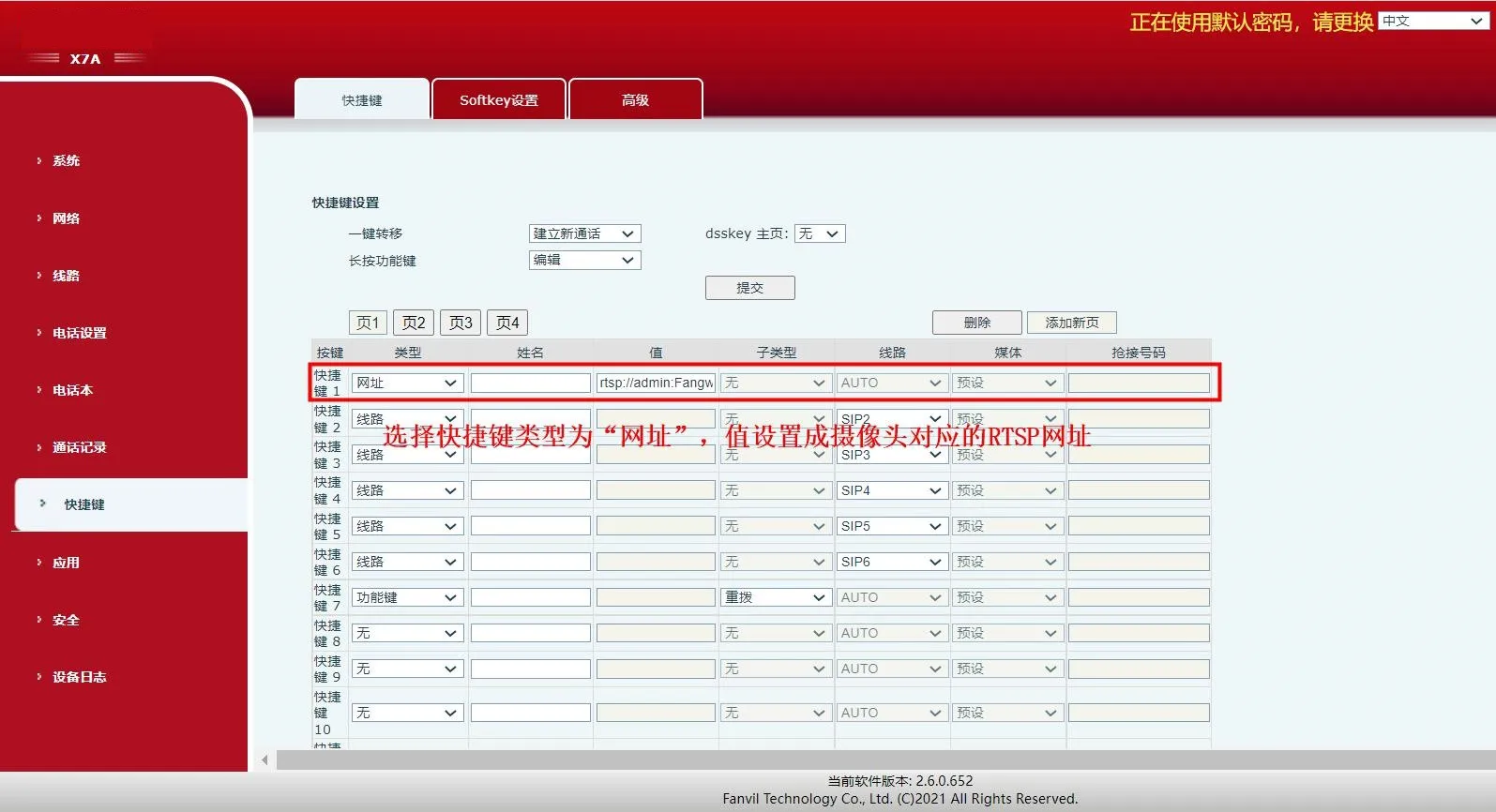

在X7A上配置DSS按键

2. 按下电话上的DSS按键以打开摄像头流

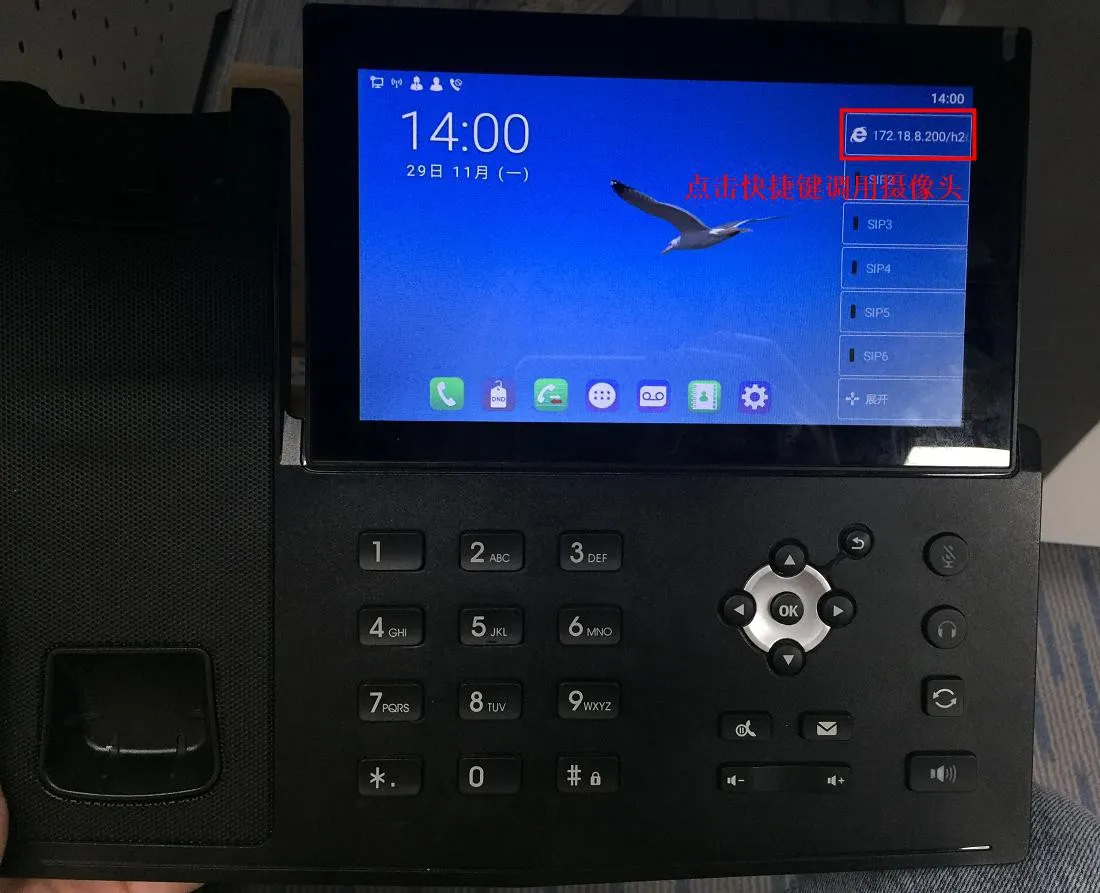

使用X7A DSS按键打开摄像头流
3. 摄像头流成功显示在电话上

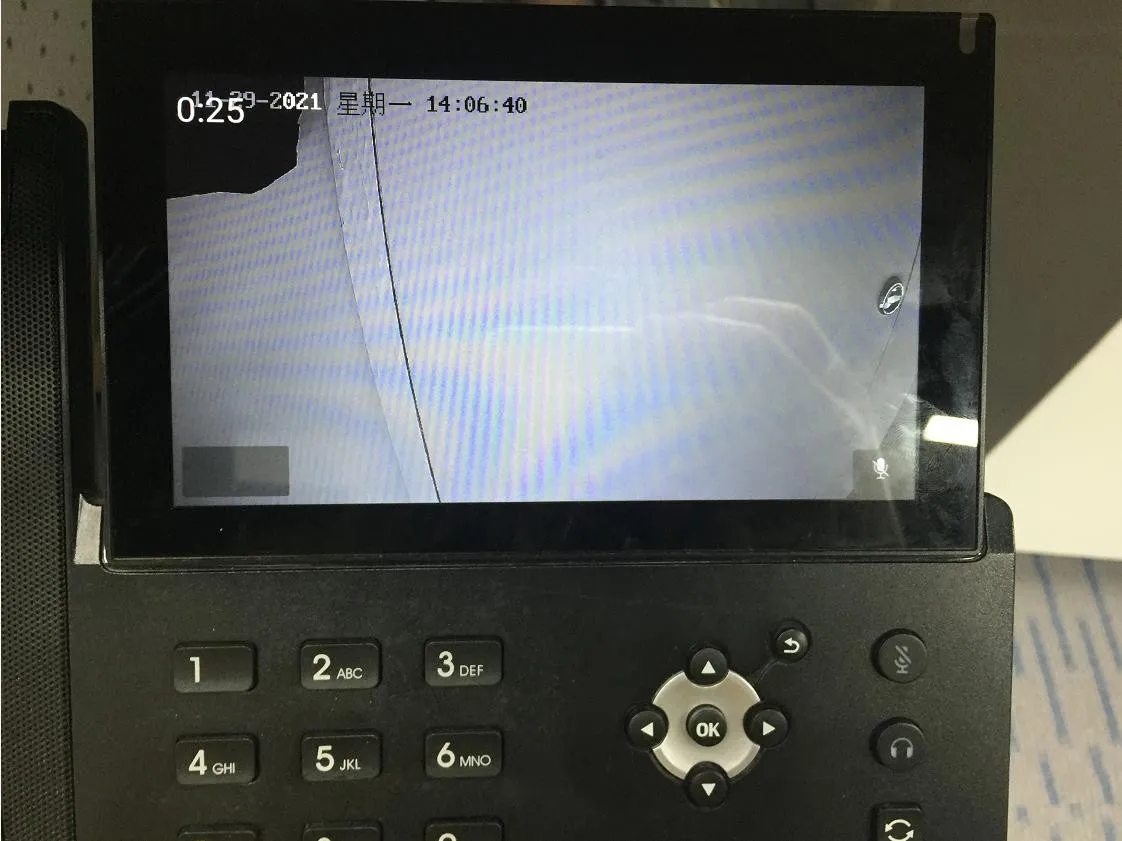

X7A成功显示摄像头流
